Data Link Connector: Service and Repair

Data link connector (OBD-II)

Operation number: 36503-2

Removal

Note! Make sure that the component terminals are not bent or damaged.

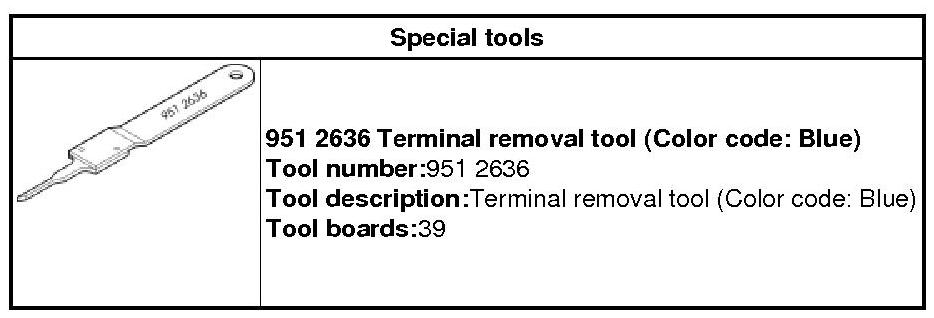

951 2636 Terminal removal tool 951 2636 Terminal Removal Tool

Note! Only work on 1 cable at a time.

Installation

To install, reverse the removal procedure.
