Catalytic Converter: Service and Repair
Catalytic converterOperation number: 25418-2

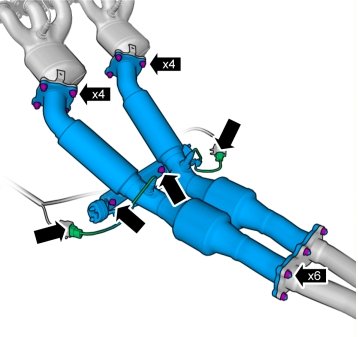

RemovalNote! Removal steps in this procedure may contain installation details. 1.
Torque: Catalyst to
exhaust manifold, 27 Nm
2.
Torque: Catalyst to
exhaust system, 24 Nm

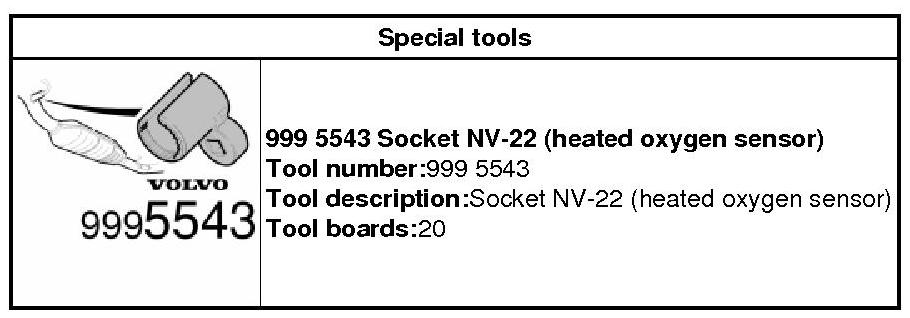

999 5543 SOCKET NV-22 HO2S
999 5543 Socket NV-22 HO2S Torque: Catalyst monitor sensor, 45 Nm
InstallationTo install, reverse the removal procedure.
