Timing Cover

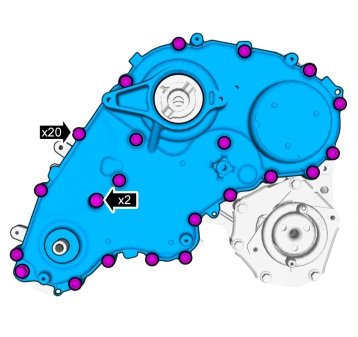

Timing Cover Fasteners






Note! Install all the bolts finger tight before final tightening.




Torque: M7, 17 Nm




Torque: M7, 17 Nm




Torque: M8, 24 Nm
