Procedures

Oil level bevel gear, checking

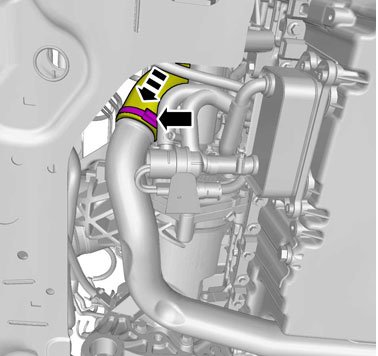

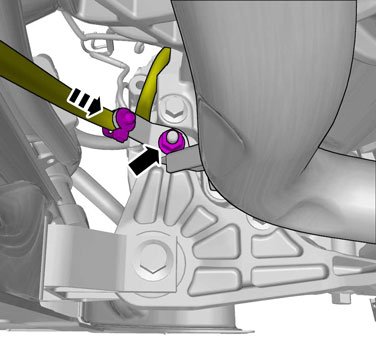

Removal

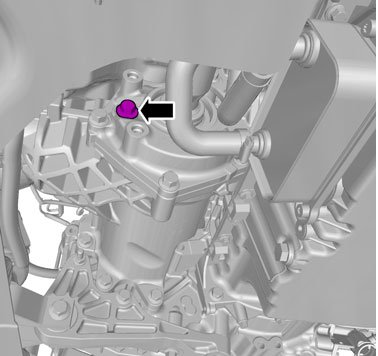

Warning! Be prepared to collect escaping fluid.

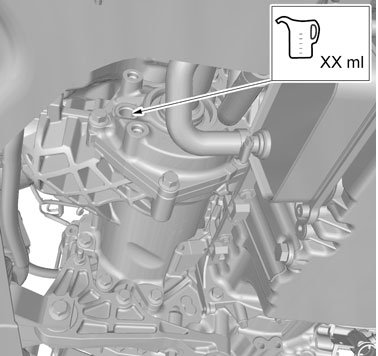

Filling

Caution! The fluid must be allowed to escape until a continuous flow changes into single drops.

Follow the instructions regarding transmission lubricant Refer to: Lubricant transmission Specifications

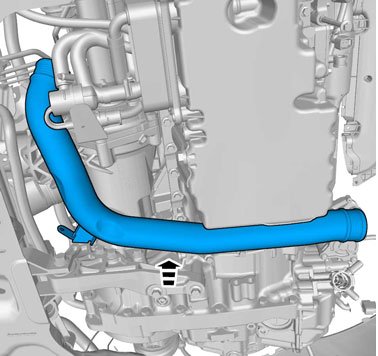

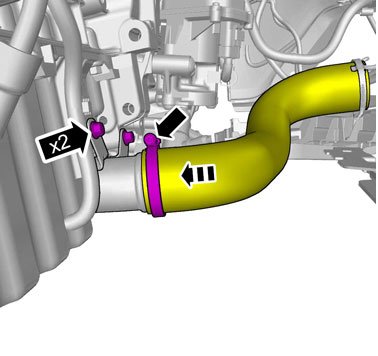

Installation

Note! Use a new seal.

Torque: Oil filler plug, bevel gear, 35 Nm

Torque: M8, 24 Nm
