Wiring

Joining the cables

Connecting

see information about SRS cables: Refer to: Cable harness SRS system, repair Procedures

Perform battery disconnection. Refer to: Battery, disconnecting Battery, Disconnecting

see information about cable terminals surface treatment. Refer to: Cable terminals surface treatment Cable Terminals Surface Treatment










951 2620 Stripping tool 951 2620 Stripping tool

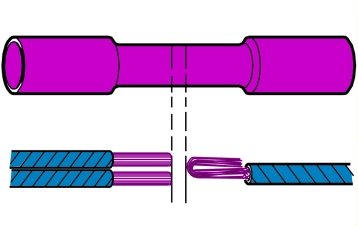

See information about stripping length. Refer to: Junction sleeve Junction Sleeve

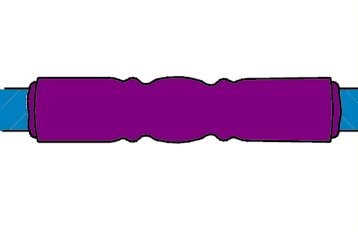

Junction sleeve





951 2785 Crimping tool 951 2785 Crimping tool






Caution! Protect the surroundings from the heat.

951 2850 Hot air gun 951 2850 Hot air gun 951 2851 Hot-air gun 951 2851 Hot-air gun 951 2777 Hot-air gun 951 2777 Hot-air gun
