Part 1
Tow bar wiring, 7-pin
INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimis the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Cars equipped with SRS/SIPS (Airbag)
Warning! Extra care must be taken when working on cars equipped with SRS/SIPS air bags. This is important to prevent:1. Personal injury2. Damage to or malfunction of the SRS/SIPS system.Work on the SRS/SIPS systems or related components must always be carried out by an authorized Volvo workshop.
Is the car equipped with SRS (supplemental restraint system)?
Cars equipped with a driver's airbag have the letters "SRS" imprinted on the centre panel of the steering wheel. Cars equipped with driver's and passenger airbags are marked with "SRS" on both the steering wheel centre panel and also on the dashboard close to the airbag.
If the car is equipped with SIPS (side impact protection system ) a "SIPS" decal is marked on both the front seats.
Cars equipped with inflatable curtains have the marking "SRS" on one of the panels along the posts on the inside of the car.
Cars equipped with SRS (supplemental restraint system) also have an "SRS" decal on the front windscreen.
Warning! The air bag inflation areas must not be obstructed. Never place any objects, such as upholstery or accessories, within these areas. The panels must be able to open in the correct manner at the right time, otherwise there is an increased risk of personal injury in the event of a collision.
Do not damage the SRS wiring!
Do not trap, chafe, pierce or damage the SRS wiring. SRS wiring has orange casing and/or is plaited.
Steering and front suspension
The contact reel in the SRS system can easily be damaged when working on the steering wheel, steering shaft or steering gear. Refer to the SRS (supplemental restraint system) for information on carrying out such work. This is to prevent damage.
SRS warning lamp
If the SRS warning lamp lights after repairs have been carried out, take the car to an authorized Volvo workshop.
Supplemental restraint system module, SRS
C30/S40(04-)/V50/S60/XC60/C70(06-)/V70/XC70/S80/XC90
The supplemental restraint system module (SRS) is located on the tunnel under the centre console, in front of the parking brake.
Warning! The ignition must be in position "0" and the key removed from the ignition switch if any connector in the SRS system is to be unplugged. Then wait at least three minutes and disconnect the battery negative lead before unplugging any of the connectors. When work is completed, the ignition key must be turned to position "II" before reconnecting the battery negative lead.
Tow bar wiring, 7-pin
Note!
- Steps 1, 4, 7-16 apply to the S60.
- Steps 3, 5, 17-26 apply to the S80.
- Steps 2, 5, 27-40 apply to the V70.
- Steps 6, 41-57 apply to the XC90.
Installing the connector for detachable tow bars
Applies to the S60
- Turn the ignition key to position 0.
- Install the trailer connector with the three screws and the nuts. Tighten.
- Route the cable along the underneath of the tow bar member as illustrated.
- Secure the cable using two tie straps.
Applies to the V70
- Turn the ignition key to position 0.
- Install the trailer connector with the three screws and the nuts. Tighten.
- Ensure that the cable harness is as close to the centre mounting on the tow bar member as possible. This is important to prevent the cable harness from being caught in the cut-out bumper.
- Secure the cable with a tie strap.
Applies to the S80
- Turn the ignition key to position 0.
- Install the trailer connector (1). Use the three screws (2) and the nuts (3). Tighten.
- Route the cable harness behind the screw (4) on top of the tow bar. Then route the cable harness down past the bracket (5).
- Clamp the cable harness at the bracket. Tighten the clamps (6).
Installing the connector for fixed tow bars
Applies to the S60

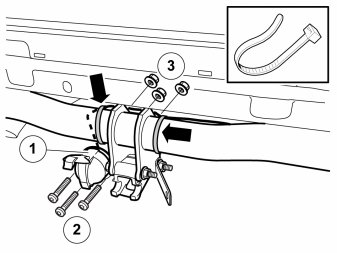

- Install the trailer connector (1). Use the three screws (2) and the nuts (3). Tighten.
- Leave the bracket hanging down as illustrated
- Secure the cable harness at the tow bar member with a tie strap (4) on both sides of the tow bar.
- Position the tie straps according to the listed dimensions.
- Do not tighten the clamps fully yet.
Illustration A applies to the V70
Illustration B applies to the S80
- Install the trailer connector (1). Use the three screws (2) and the nuts (3). Tighten.
- Clamp the cable harness at the tow bar. Tighten the clamp(s) (4).
Installing the connector for fixed/detachable tow bars
Applies to the XC90
Illustration A
- Install the trailer connector (1). Use the three screws (2) and the nuts (3). Tighten.
- Pull the cable harness out towards the right along the front edge of the tow bar member.
- Secure the cable harness with a tie strap on the sides of the tow bar member brackets.
Figure B applies to cars with R-design Skidplate
On cars with Skidplate, the contact shall be turned 90° counter-clockwise in relation to the placement in Figure A.
Steps 7-16 apply to the S60
- Fold back the carpet.
- Remove the clips on the lower edge of the folding panel (on both the right-hand and left-hand sides) by pressing in the centre of the clip until an audible snap is heard.
- Remove the clips.
- Unscrew the front clips.
- Turn the knob (1) on the right-hand and left-hand sides 90°.
- Fold the panels inwards. Lift the panels out.
- First, pull the trunk lid sill trim panel (2) forwards until the two clips on the right-hand and left-hand sides release. Pull forcefully but carefully since the panel is fitted tightly. Pull the panel straight up until the four clips in the lower edge release.
- Remove the wiring (3) for the cargo compartment lighting.
- Lift out the sill trim panel.
- Remove the dummy plug from the hole in the body, see the illustration (battery draining is not affected).
Note! It is only possible to connect one of the functions (rear fog lamps, charging or reversing lamps) according to steps Tow bar wiring, 7-pin Removal and Replacement - Tow bar wiring, 7-pin Removal and Replacement. You can also choose not to connect any of the functions.
If the rear fog lamp function will be used: Illustration A

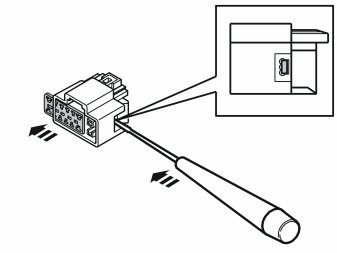

- Carefully press down the small catch in the locking mechanism for the grey (GR) 12-pin connector with a small screwdriver. Pull out the locking mechanism until it stops.
Illustration B
- Connect the blue (BL) cable to position 2 in the connector.
- Move the locking mechanism back to locked position.
- Insulate the cable terminal and secure the blue (BL) cable if it is not intended for connection.
If the charging function will be used: Illustration A
- Carefully press out the blue locking mechanism in the black 12-pin connector with a small screwdriver.
Illustration B
- Connect the blue/yellow (BL/Y) cable to position F in the black (SB) 12-pin connector.
- Move the locking mechanism back to locked position.
- Insulate the cable terminal on the unused black/yellow (SB/Y) cable and secure the cable to the cable harness. If neither cable is intended for connection, insulate and secure both cables.
If the reversing light function will be used: Illustration A
- Carefully press out the blue locking mechanism in the black 12-pin connector with a small screwdriver.
Illustration B
- Connect the black/yellow (SB/Y) cable to position H in the black (SB) 12-pin connector.
- Move the locking mechanism back to locked position.
- Insulate the cable terminal on the unused blue/yellow (BL/Y) cable and secure the cable to the cable harness. If neither cable is intended for connection, insulate and secure both cables.
Illustration A
- Route the cable harness from the tow bar connector through the hole in the floor.
- Adjust the position of the rubber seal (1) so that there is not excessive cable slack under the car.
- Install the rubber seal in the hole.
- Route the cable harness as shown in the illustration over the rear edge of the left-hand side member to the fuse holder.
Illustration B
- Secure the cable harness to the cable harness behind the battery with tie straps (2) from the kit.
- Connect the routed ground cable to the grounding point (3) behind the battery and tighten the grounding screw securely.
- Detach the trailer module (TRM) from the Velcro fastener on the back side of the plate in front of the fuse holder.
- Plug in the tow bar wiring connectors:
- green (GN) and grey (GR) connectors to the control module.
- black (SB) connector to the fuse holder.
- Reinstall the control module.
- Secure the excess cable with a tie strap from the kit.

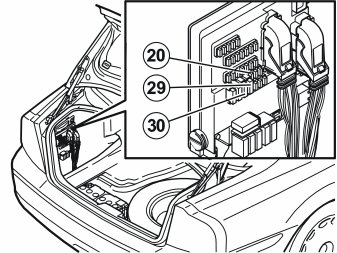

- Insert fuses from the kit in the following positions in the fuse holder (REM):
- 20A in position 20 (mini fuse) if the charging function according to step Tow bar wiring, 7-pin Removal and Replacement has been selected
- 25A in position 29
- 25A in position 30
- Plug in the connectors for sill trim panel lighting and reinstall the panel.
- Reinstall the folding panels.
- Reinstall the cargo compartment carpet.
Applies to connection of the function for automatic rear fog lamp deactivation
Note! The function requires car-specific software. Program the software.
