Troubleshooting

Troubleshooting

Checking the wiring




- Ignition off
Check the cables for an open circuit.
Measure between:

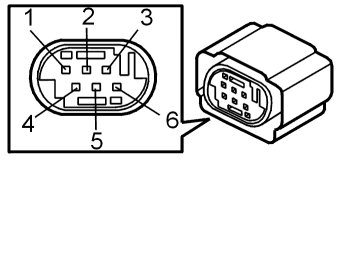

- The connector for AYC sensor terminal #1 and brake control module (BCM) terminal #A25 (#A25).
- The connector for AYC sensor terminal #2 and brake control module (BCM) terminal #A29 (#A29).
- The connector for AYC sensor terminal #3 and brake control module (BCM) terminal #A6 (#A6).
- The connector for AYC sensor terminal #5 and brake control module (BCM) terminal #A39 (#A39).
If no defect is found on the cables, replace the AYC sensor.
Remedy as necessary.

Other information
- Connecting the breakout box, brake control module (BCM), B6324S5 Connecting The Breakout Box
- Signal specification, brake control module (BCM) with DSTC (dynamic stability and traction control), B6324S5 Signal Specification, Brake Control Module (BCM) With DSTC (Dynamic Stability And Traction Control)
- Active yaw control sensor, replacing Service and Repair
- Checking wiring and terminals Checking Wiring And Terminals









Continue - Verification

-------------------------------------------------

Verification





Verification

Hint: After carrying out the repair, check that the malfunction has been remedied.








- Ignition off
- Reconnect the connectors, components, etc.
- Test-drive the vehicle according to Test Drive Form (DSTC (dynamic stability and traction control) /brake control module), description Test Drive Form (DSTC (Dynamic Stability And Traction Control) /Brake Control Module), Description.

Note! Do not turn off the ignition between test-driving and reading out diagnostic trouble codes. This is to obtain the correct status of the diagnostic trouble codes.

Then read out the diagnostic trouble code's status without turning off the ignition after the test-drive.





Is the status of the diagnostic trouble code intermittent?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFIED - FAULT FOUND

VERIFICATION FAILED - Troubleshooting information

-------------------------------------------------

Troubleshooting information





Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the wiring

-------------------------------------------------
