Operation CHARM
: Car repair manuals for everyone.
Home
>>
Acura
>>
1986
>>
Legend V6-2494cc 2.5L SOHC FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>
Electronic Climate Control
Electronic Climate Control

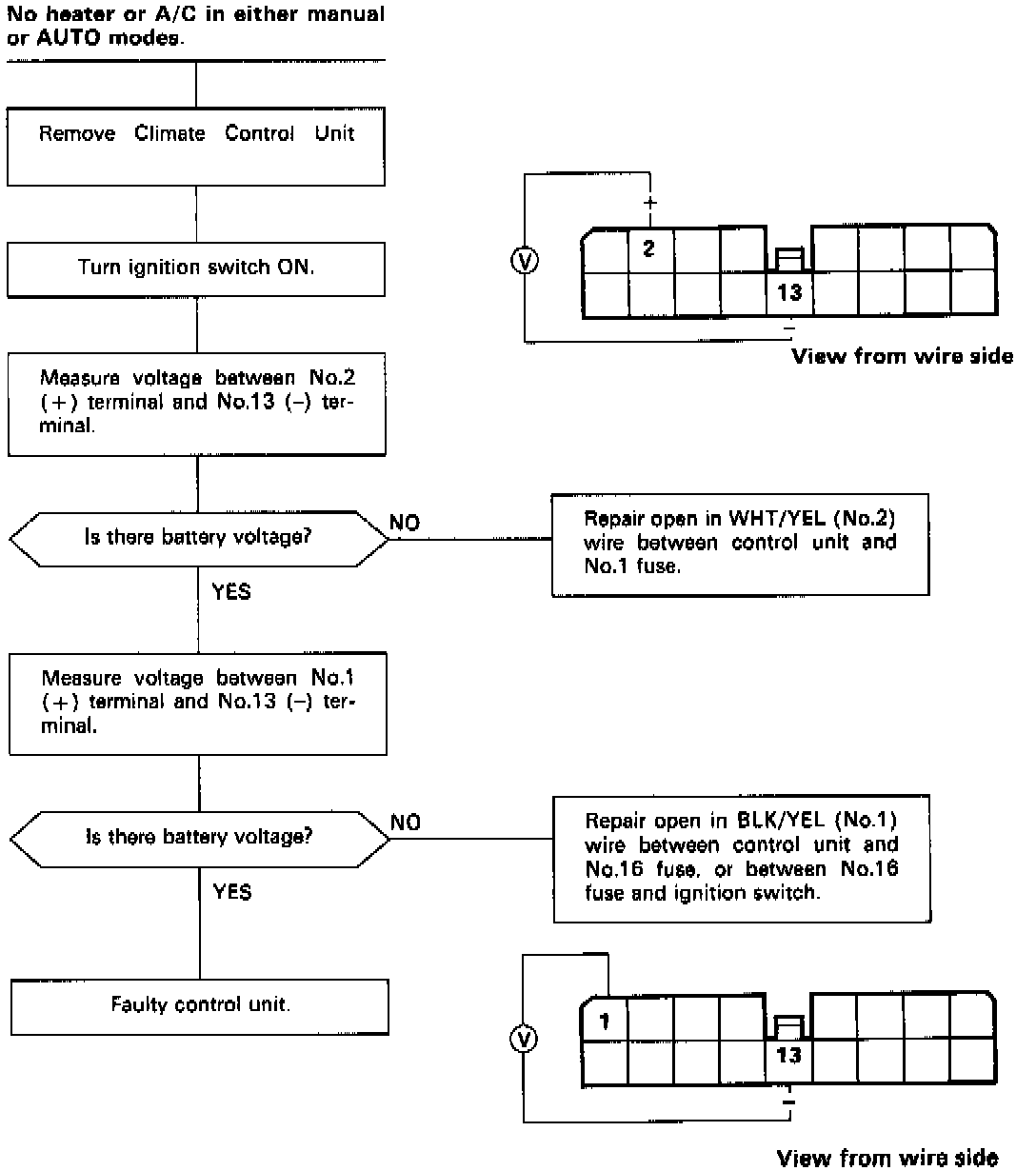

Power Circuits to Climate Control Unit
