Function Control Motor Testing
Function Control Motor Testing 1.

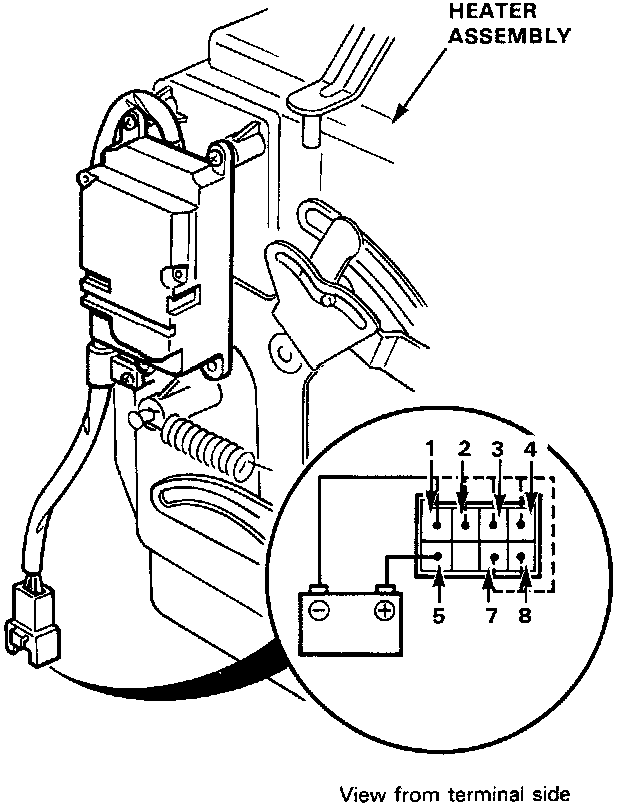

Connect the battery positive terminal to the 5 terminal of the function control motor and negative to the 1 terminal.
2.
Using a jumper wire short the 1 terminal to the 2, 3, 4, 7 and 8 terminals in order.
-
The motor should run each time the short circuit is made.
