M/T Torque Data

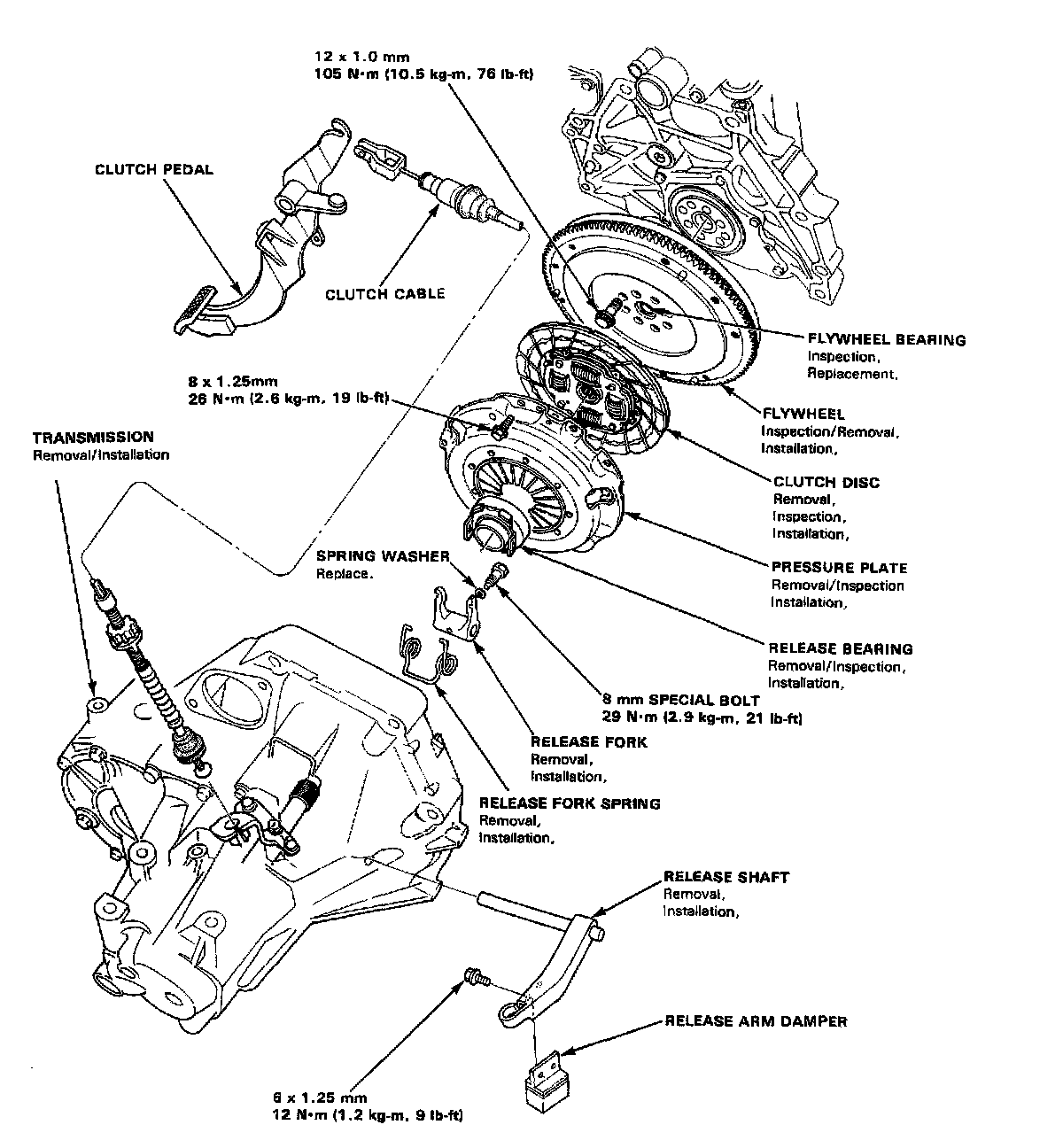

A1 5-spd M/T, Clutch Torque Assembly:

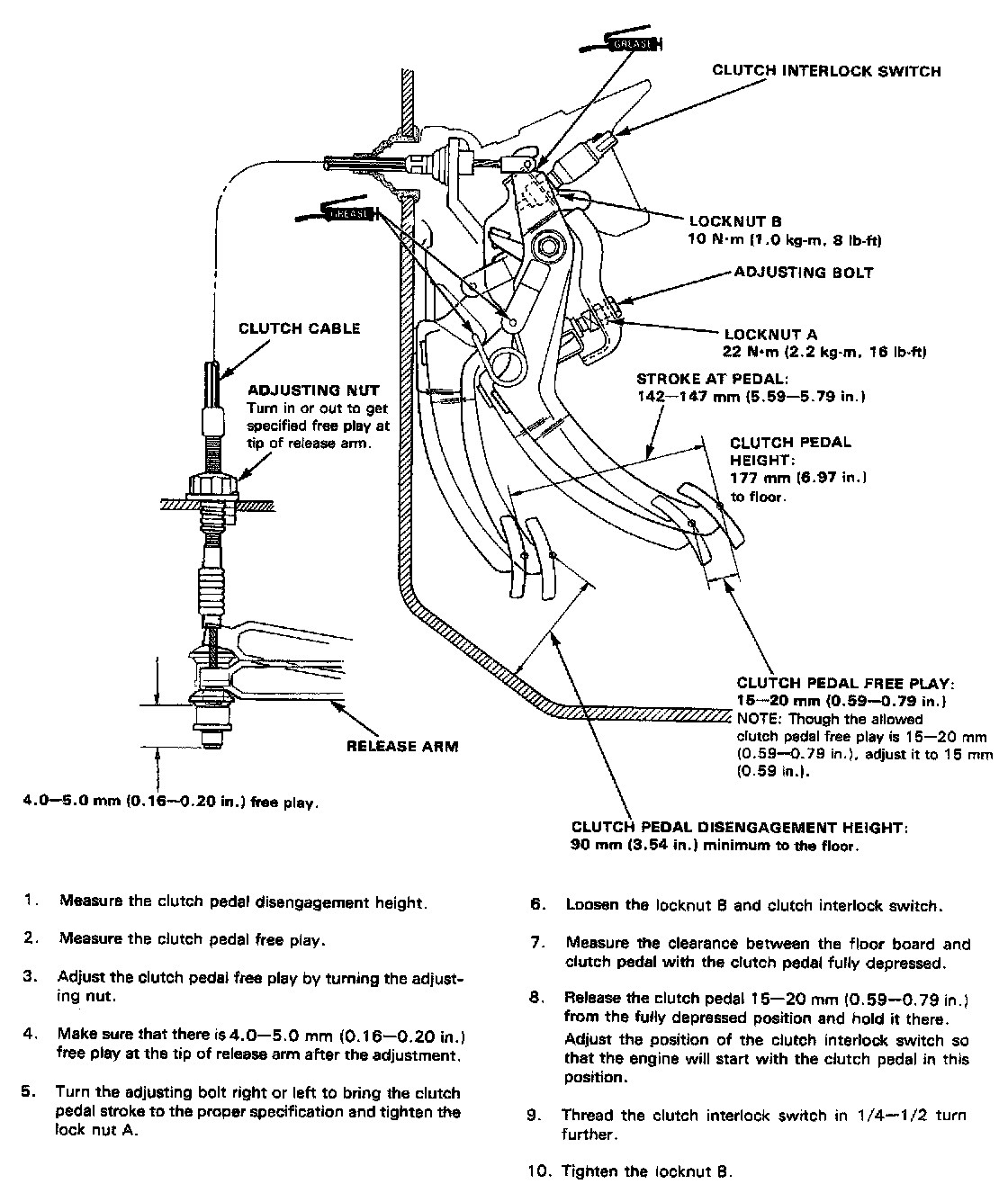

A1 5-spd M/T, Clutch Pedal (W/O Cruise Control):

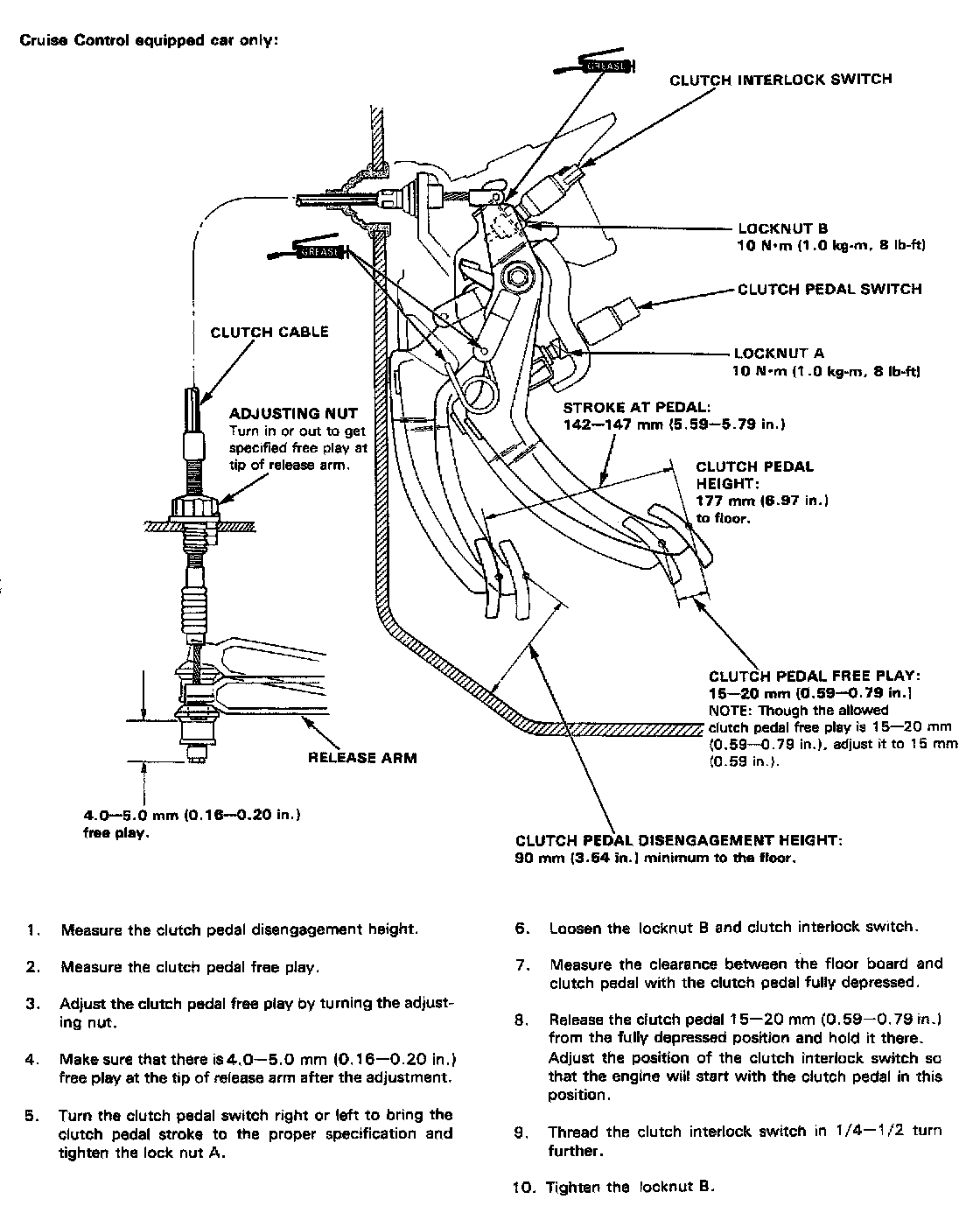

A1 5-spd M/T, Clutch Pedal (With Cruise Control):

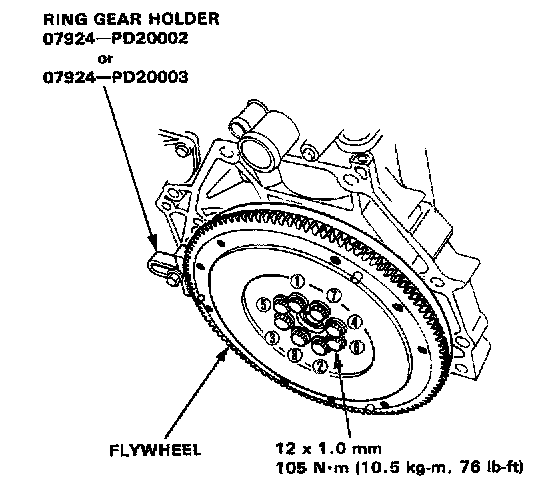

A1 5-spd M/T, Flywheel Torque & Sequence:

A1 5-spd M/T, Pressure Plate Torque & Sequence:

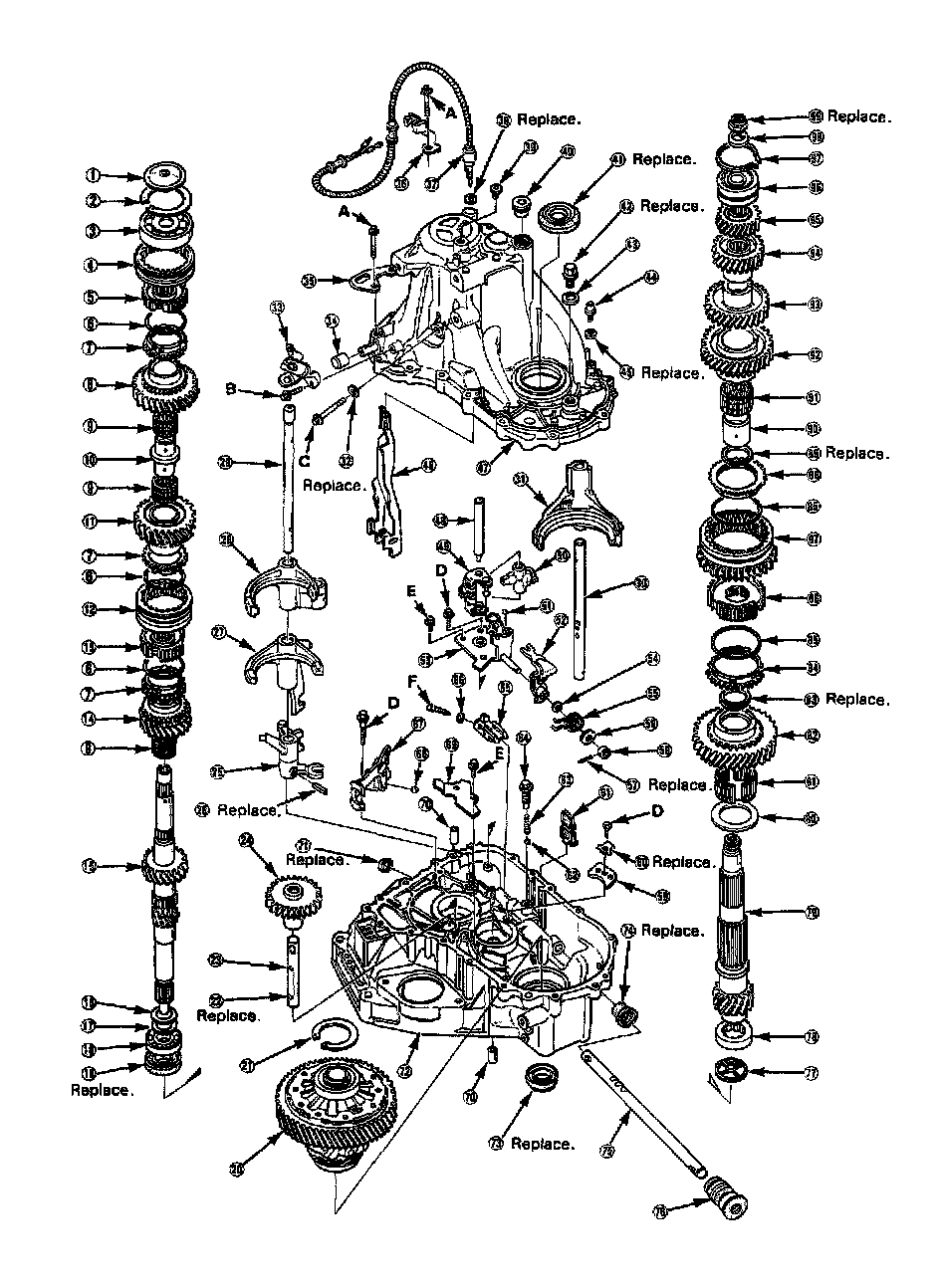

A1 5-spd M/T, Transmission Assembly 1 Of 2:

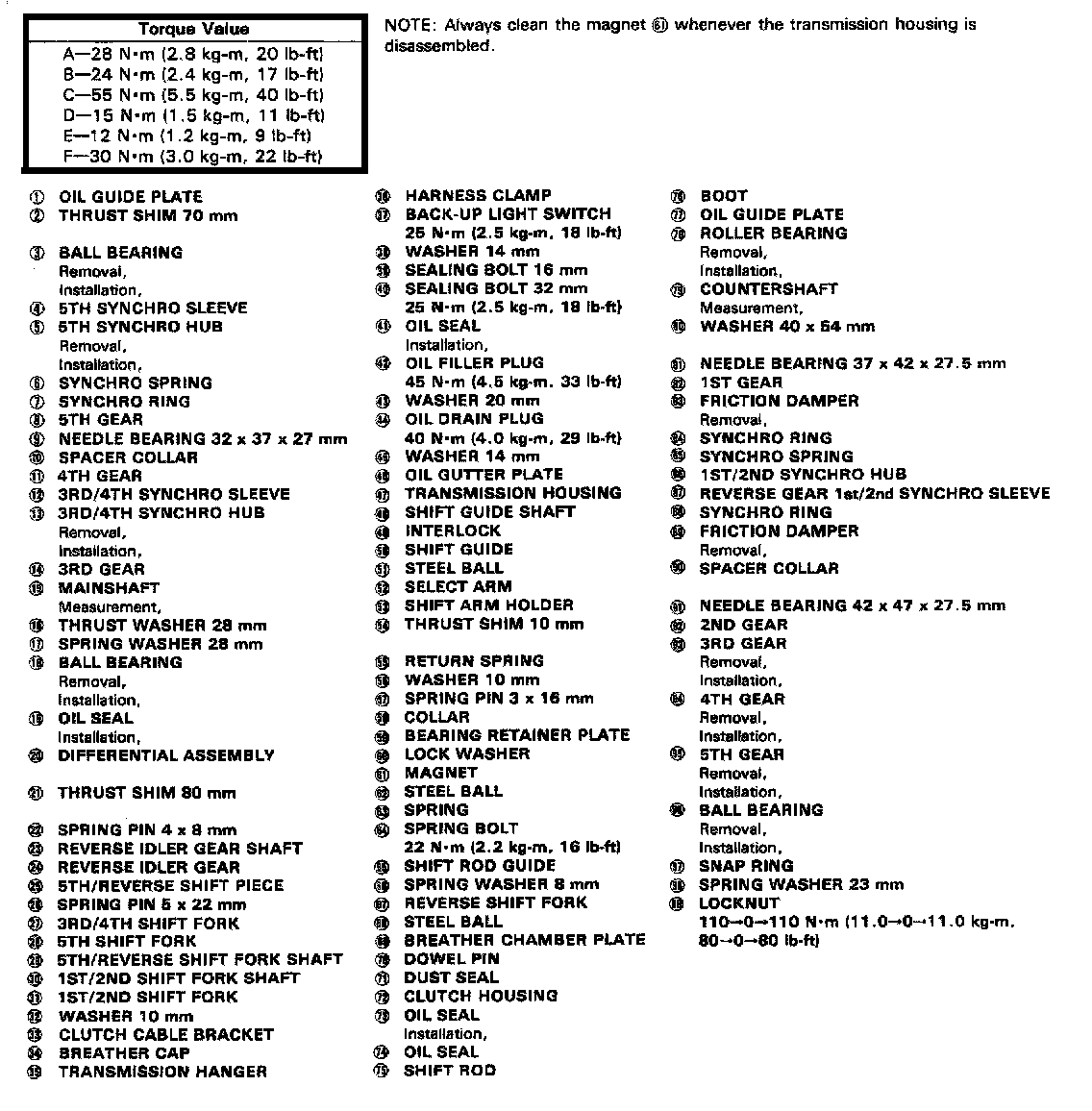

A1 5-spd M/T, Transmission Assembly 2 Of 2:

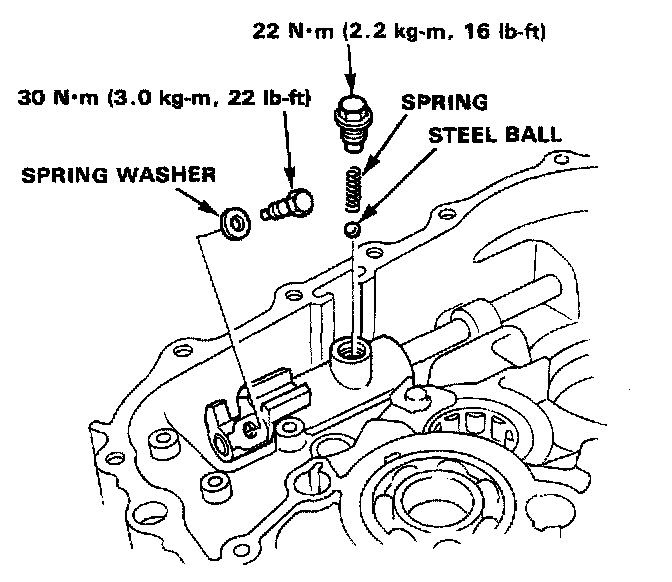

A1 5-spd M/T, Shift Rod Guide Bolt:

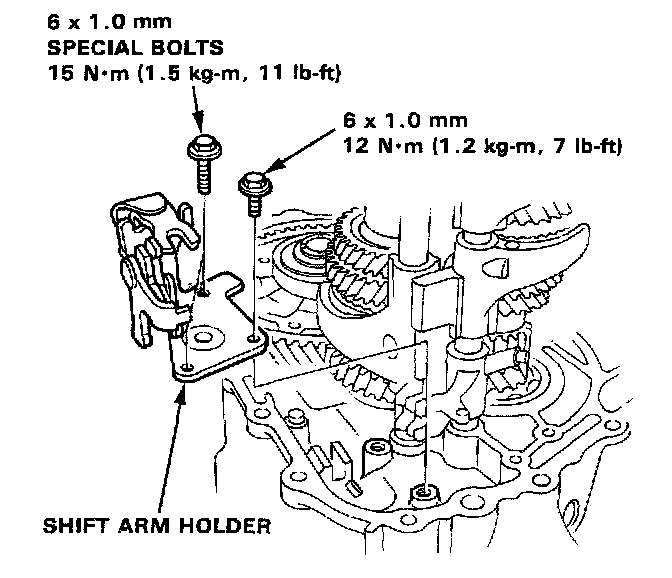

A1 5-spd M/T, Shift Arm Holder Bolt To Clutch Housing:

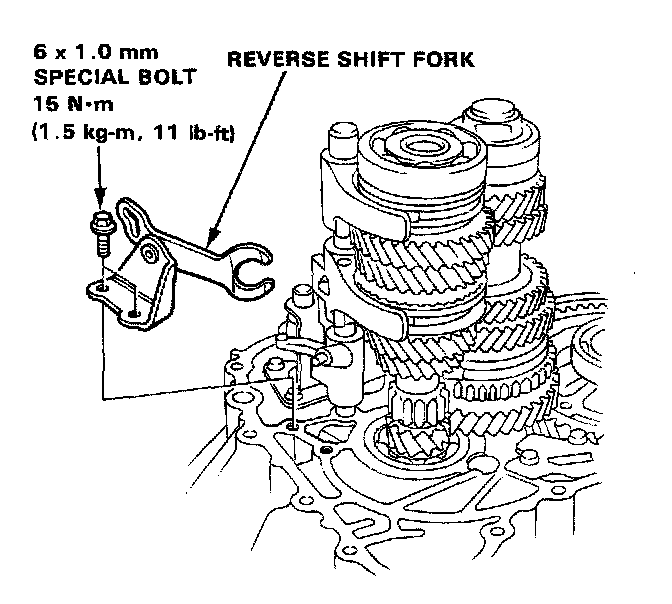

A1 5-spd M/T, Reverse Shift Fork Bracket Bolt:

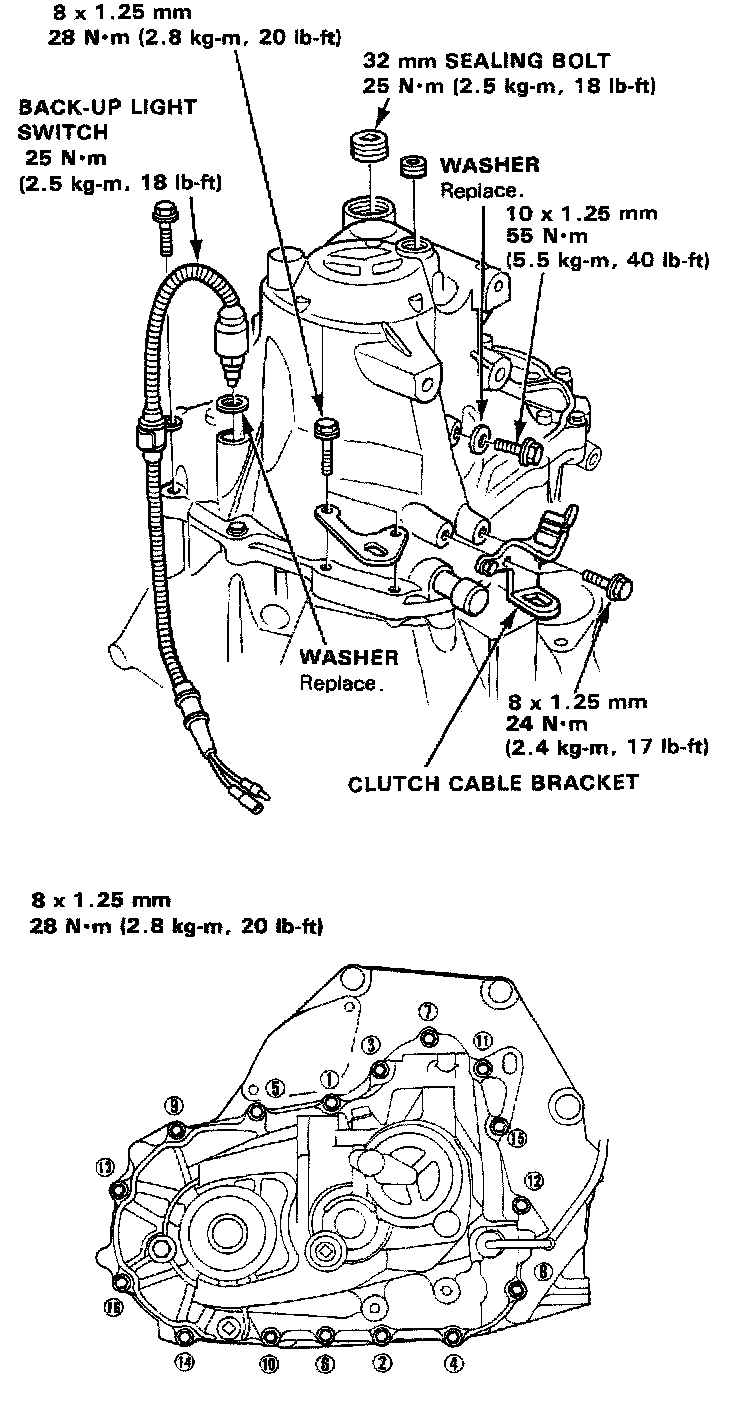

A1 5-spd M/T, Transmission Housing Attaching Bolts & Sequence:

A1 5-spd M/T, Transmission Mounting:

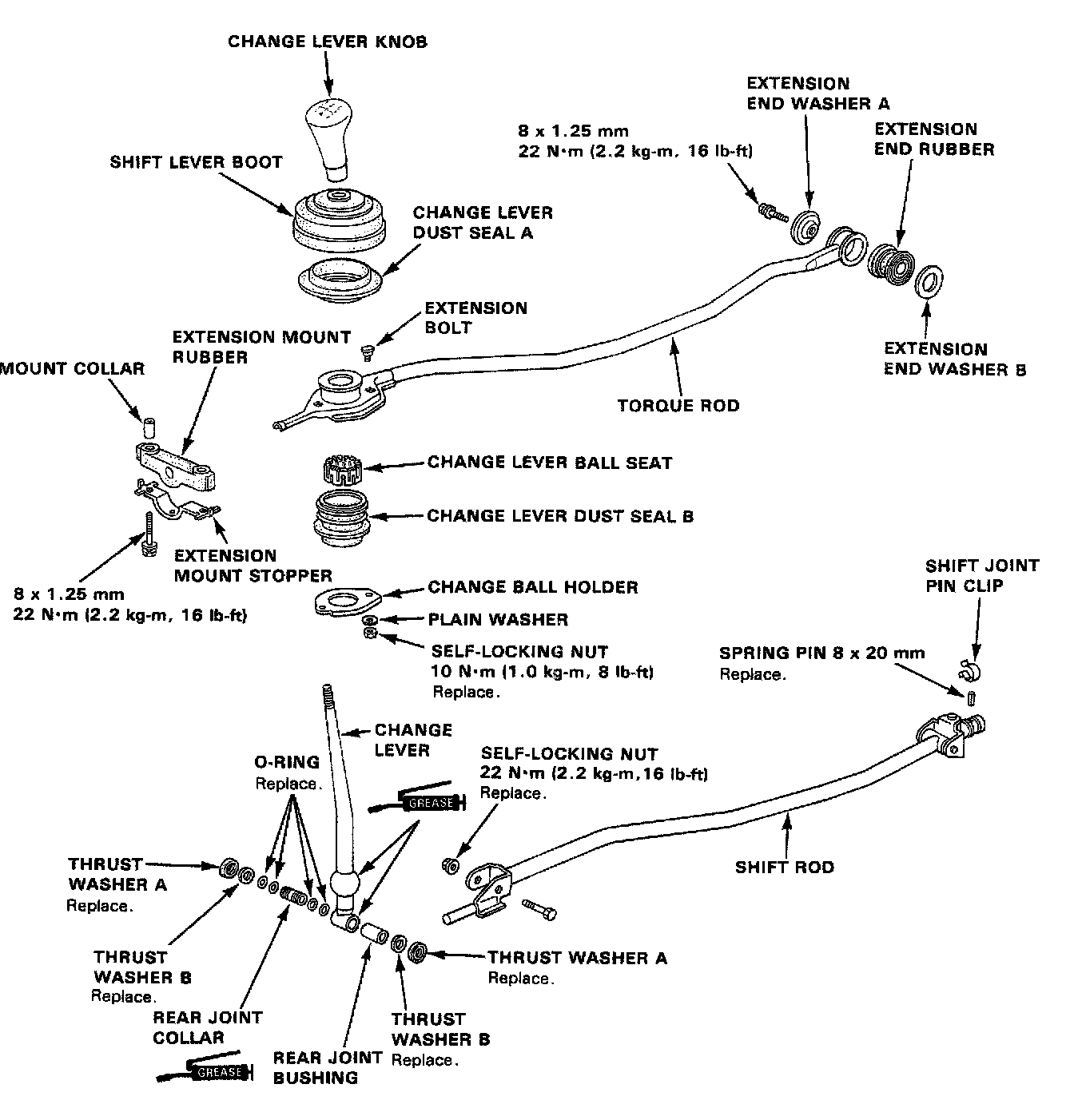

A1 5-spd M/T, Gearshift Mechanism:
