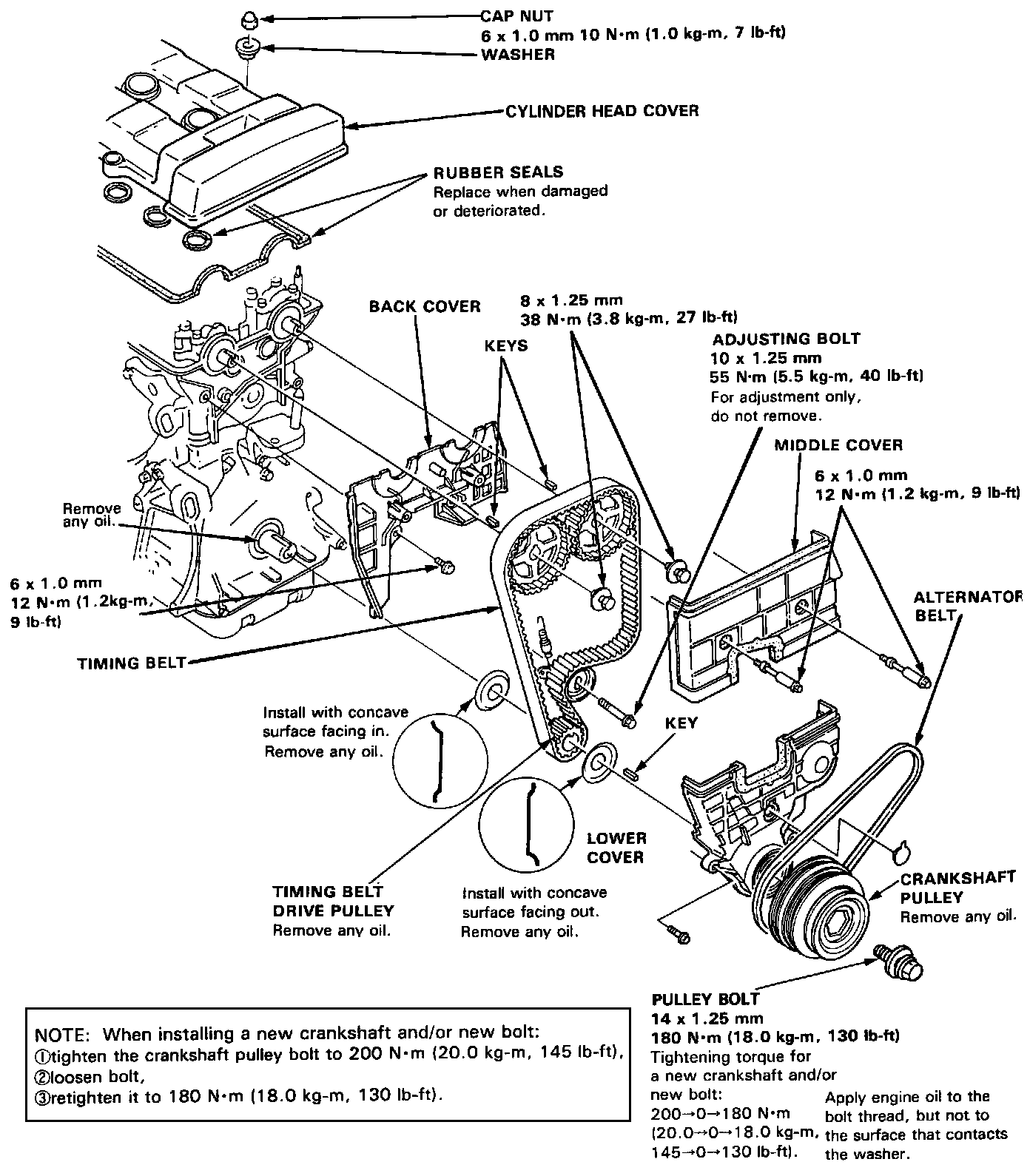

System Diagram
Timing BeltNOTE: Mark the direction of rotation on the belt before removing.
NOTE: When installing a new crankshaft and/or new bolt:
(1)
tighten the crankshaft pulley bolt to
200 N.m (20.0 kg.m, 145 lb.ft) (2)
loosen bolt
(3)
retighten it to
180 N.m (18.0 kg.m, 130 lb.ft)
