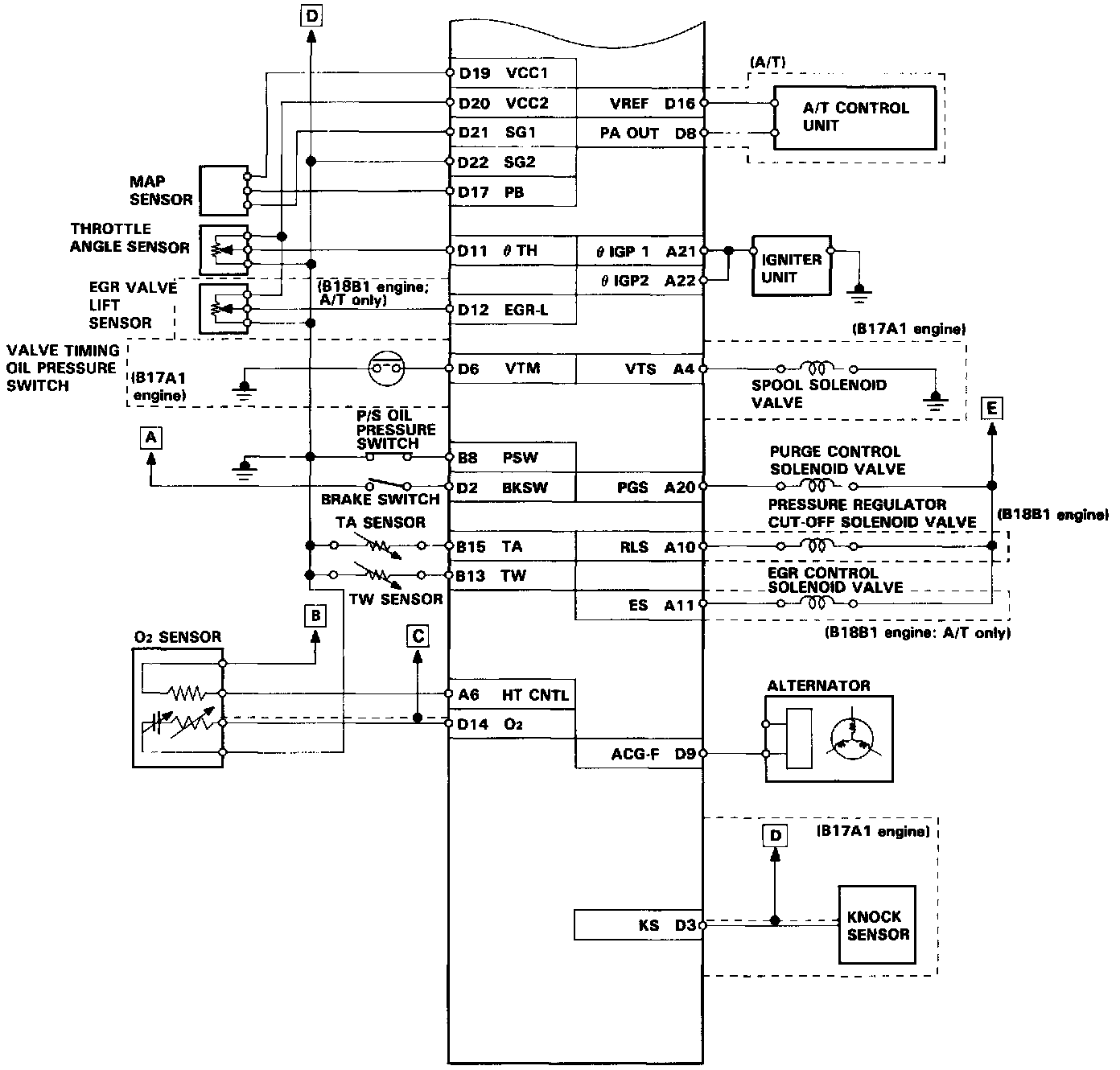

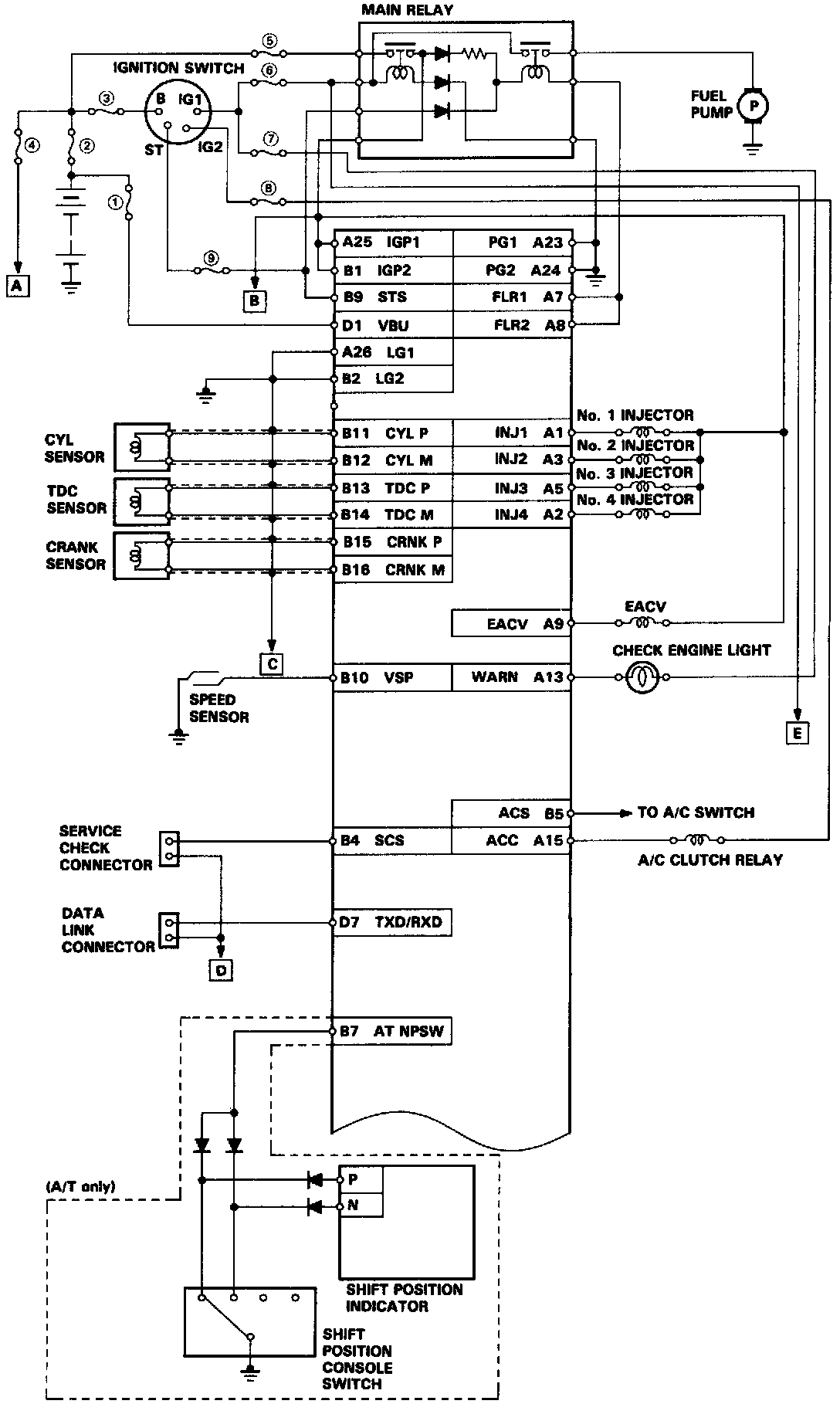

Control Unit Electrical Connections
FUSE ID (1)
BACK UP 17.5 A)*
(CANADA: HAZARD, BACK UP, 10 A)*
(2)
BATTERY (80 A)*
(3)
IG (50 A)*
(4)
STOP, HORN (20 A)*
(5)
ECU (10 A)*
(6)
No. 24 (15 A)
(7)
No. 23 (7.5 A)
(8)
No. 17 (7.5 A)
(9)
No. 18 (7.5 A)
*: In the under-hood fuse/relay box
