Ignition System: Locations

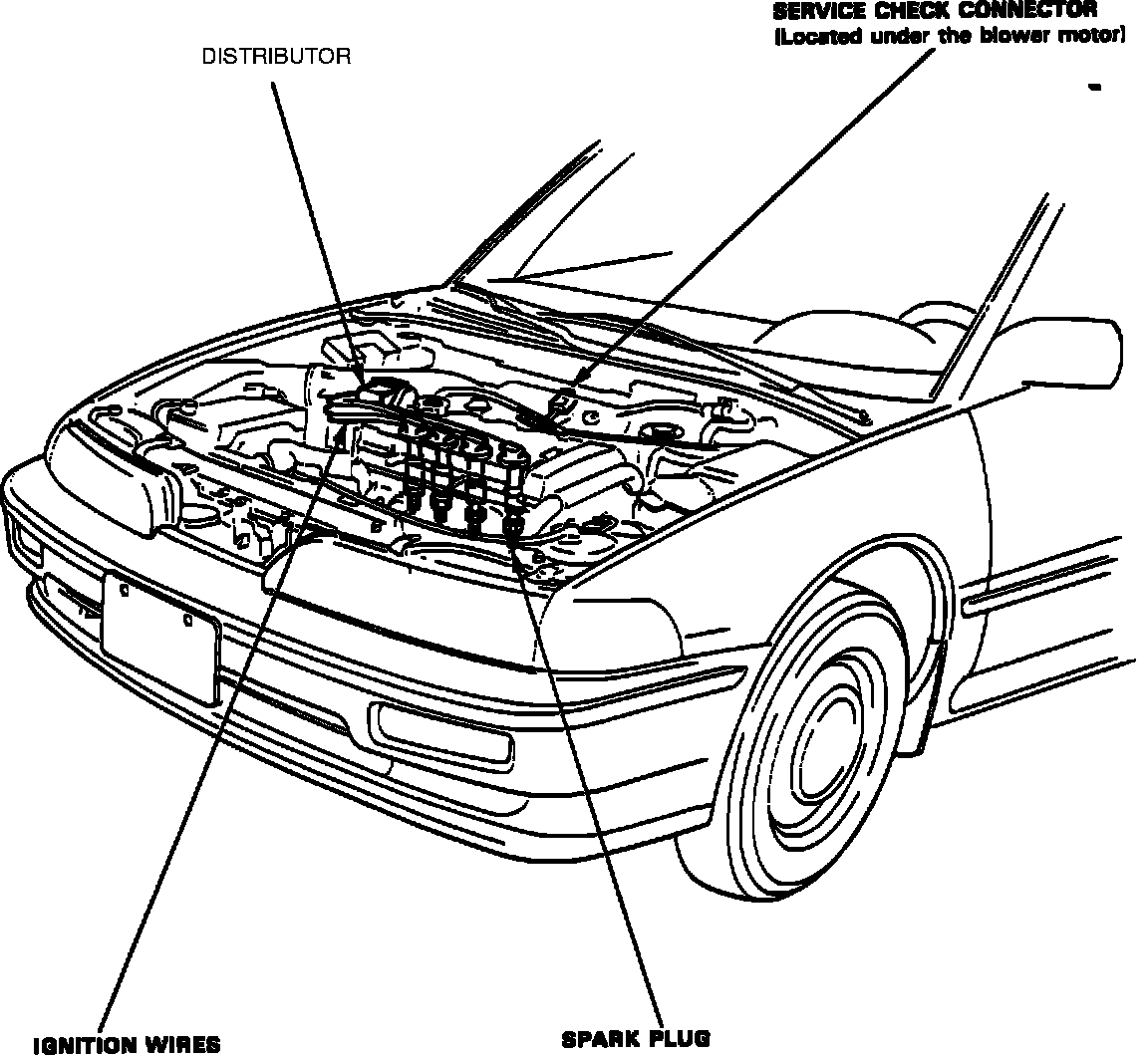

Component Location Index:






DISTRIBUTOR ASSEMBLY
Located at the right side of engine.

ELECTRONIC CONTROL UNIT (ECU)
Located under carpet, passenger side front floor panel.

IGNITER
Located inside the distributor assembly.

IGNITION COIL
Located inside the distributor assembly.

SERVICE CHECK CONNECTOR
Located under the blower motor.

RADIO NOISE CONDENSER
Located inside the distributor assembly.

TDC/CYL/CRANK SENSOR
Located inside the distributor assembly.

Ignition Timing Marks:






IGNITION TIMING MARKS
Front of engine, on cam belt covers.
