Cruise Control Module: Testing and Inspection

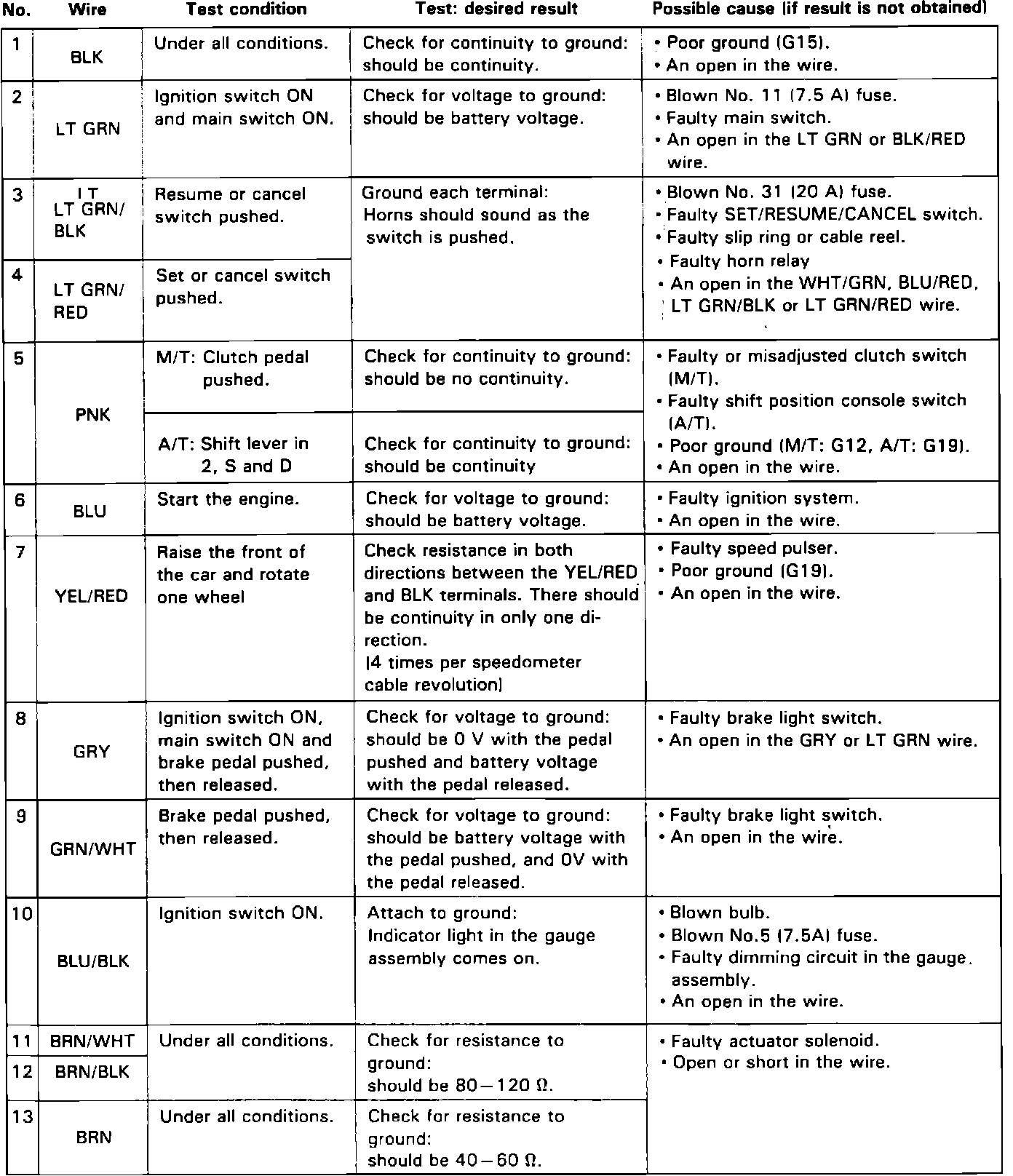

Fig. 9 Control Unit Input Test (Part 1 Of 2):

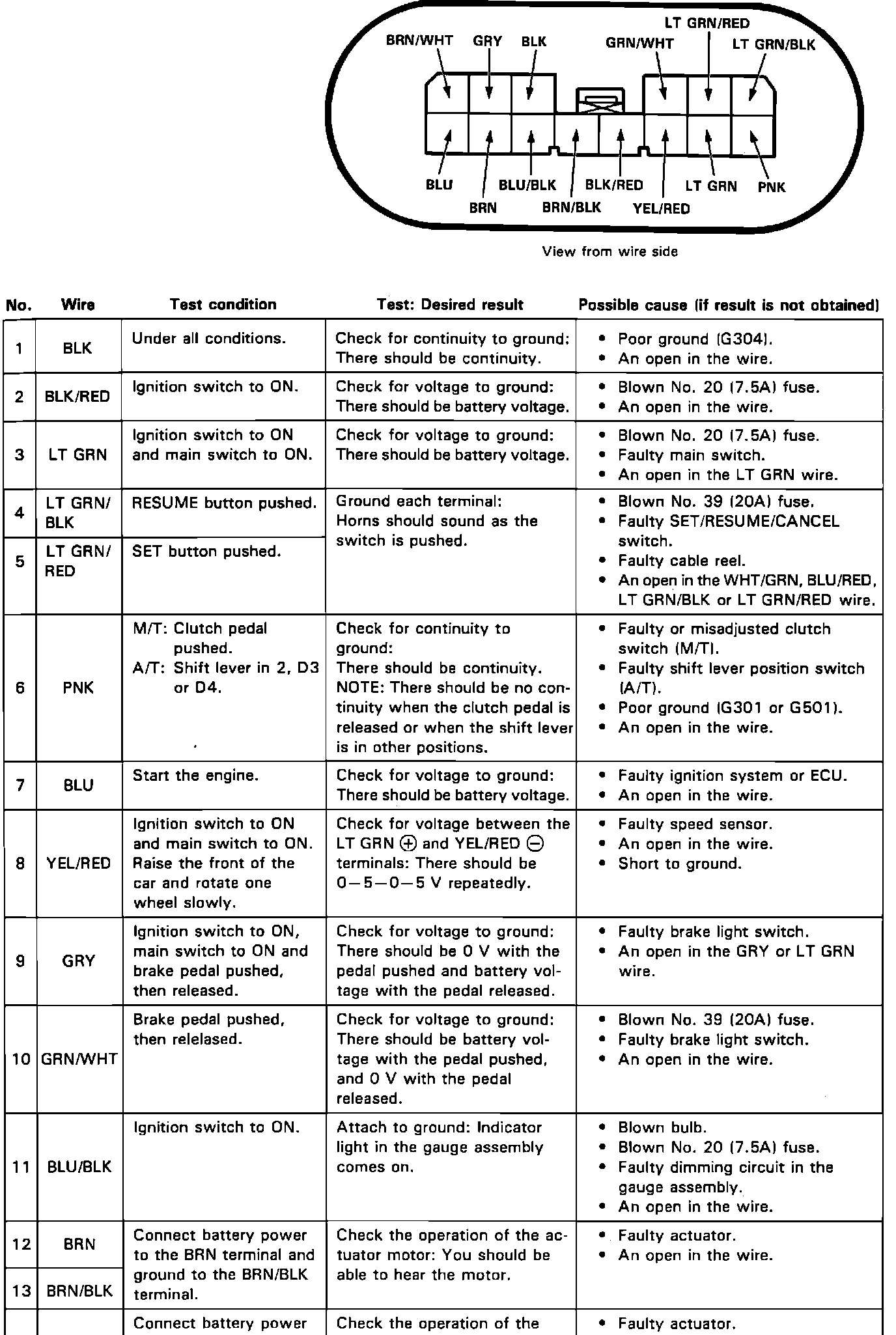

Fig. 9 Control Unit Input Test (Part 2 Of 2):

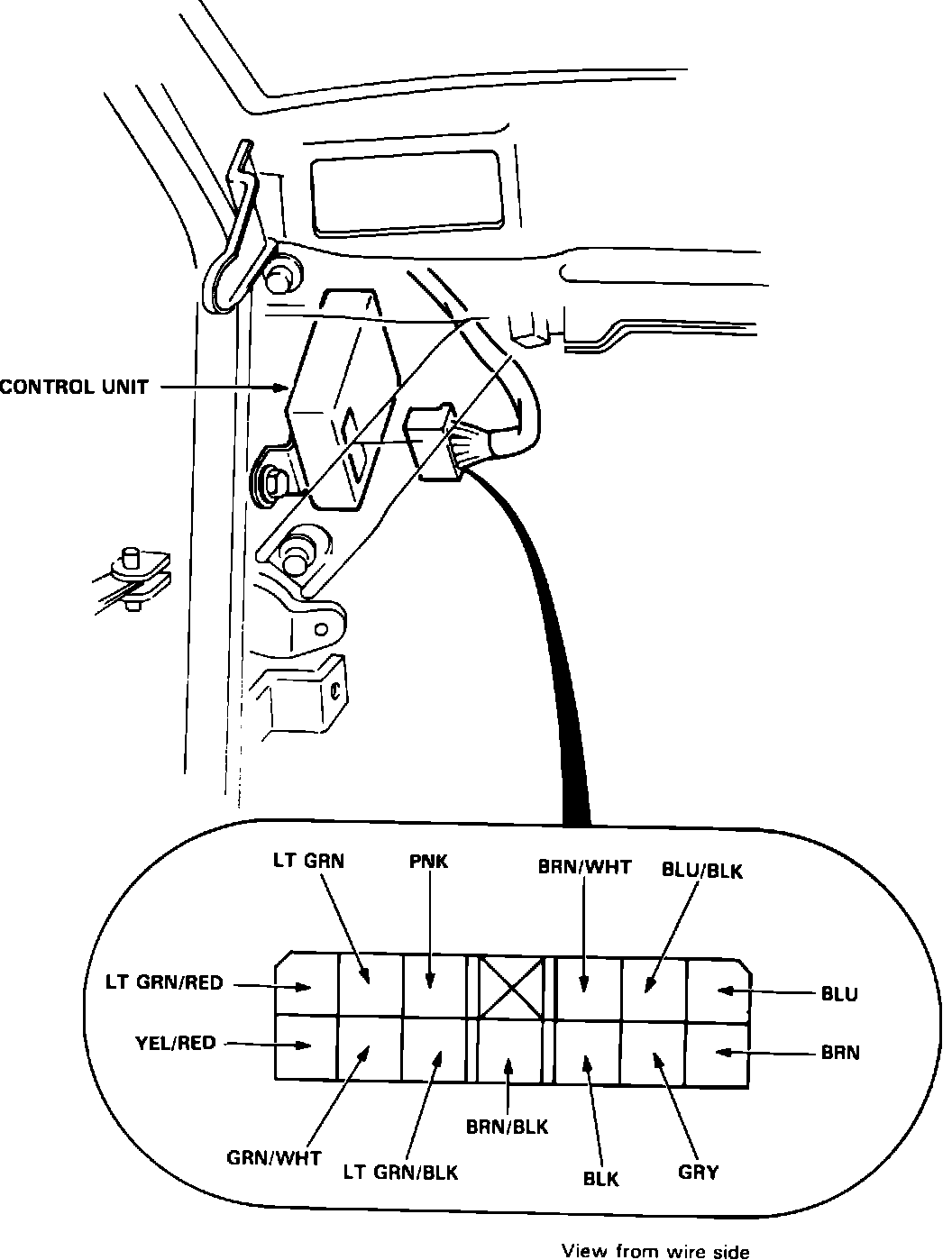

��� Fig. 11 Control Unit Input Test:
1. Disable coded theft protection system as described under Accessories and Optional Equipment / Antitheft and Alarm Systems / Service and Repair.
2. Disable airbag system as outlined under Air Bags and Seat Belts / Air Bags (Supplemental Restraint Systems) / Airbag System Disarming.
3. Remove dashboard lower panel, then disconnect control unit connector.
4. Referring to Figs. 9 and 11, perform all tests as shown. Recheck connections between connector and control unit, then reinstall if all tests are satisfactory.
