Cruise Control: Testing and Inspection

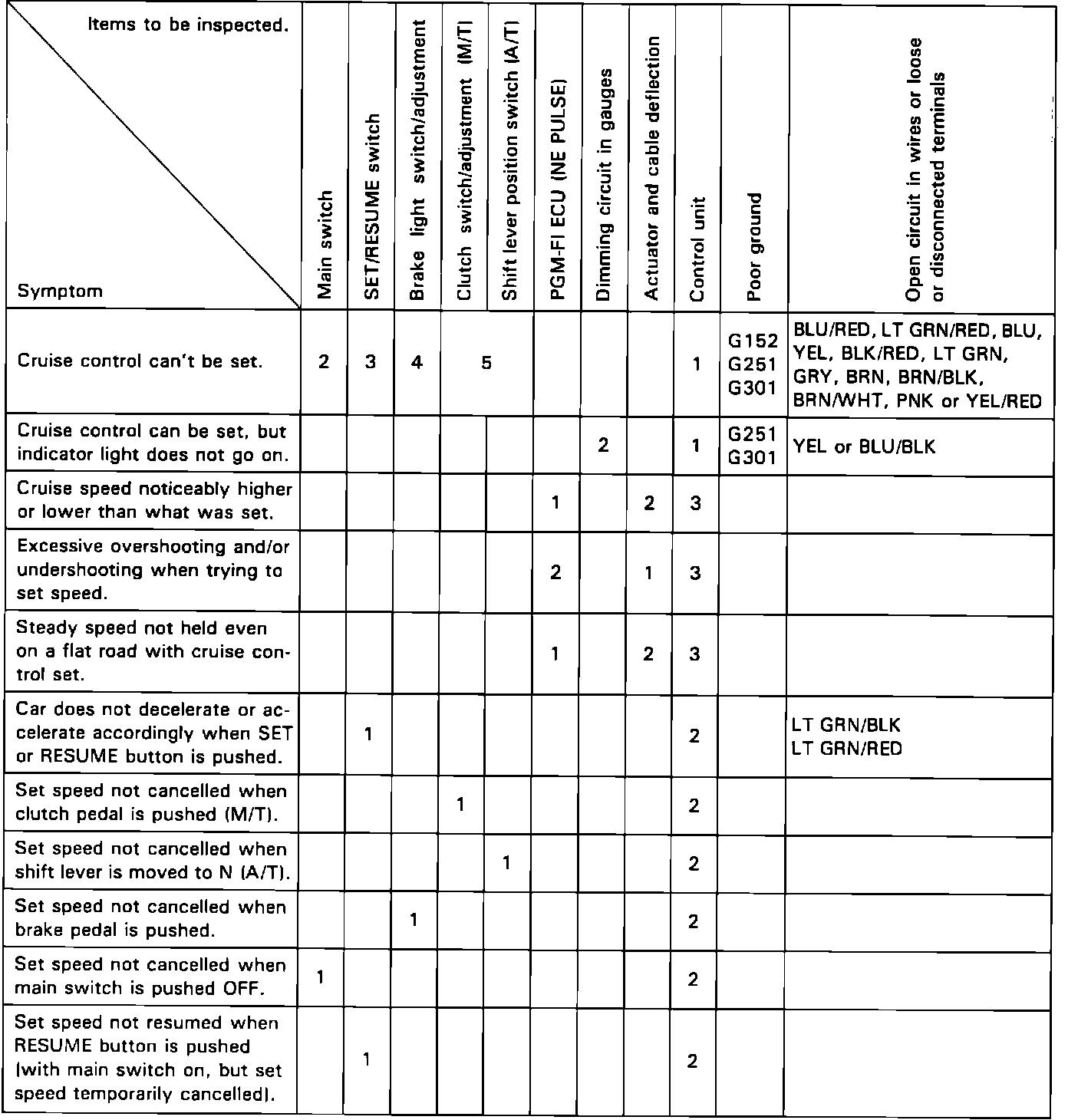

Fig. 4 Troubleshooting Chart:

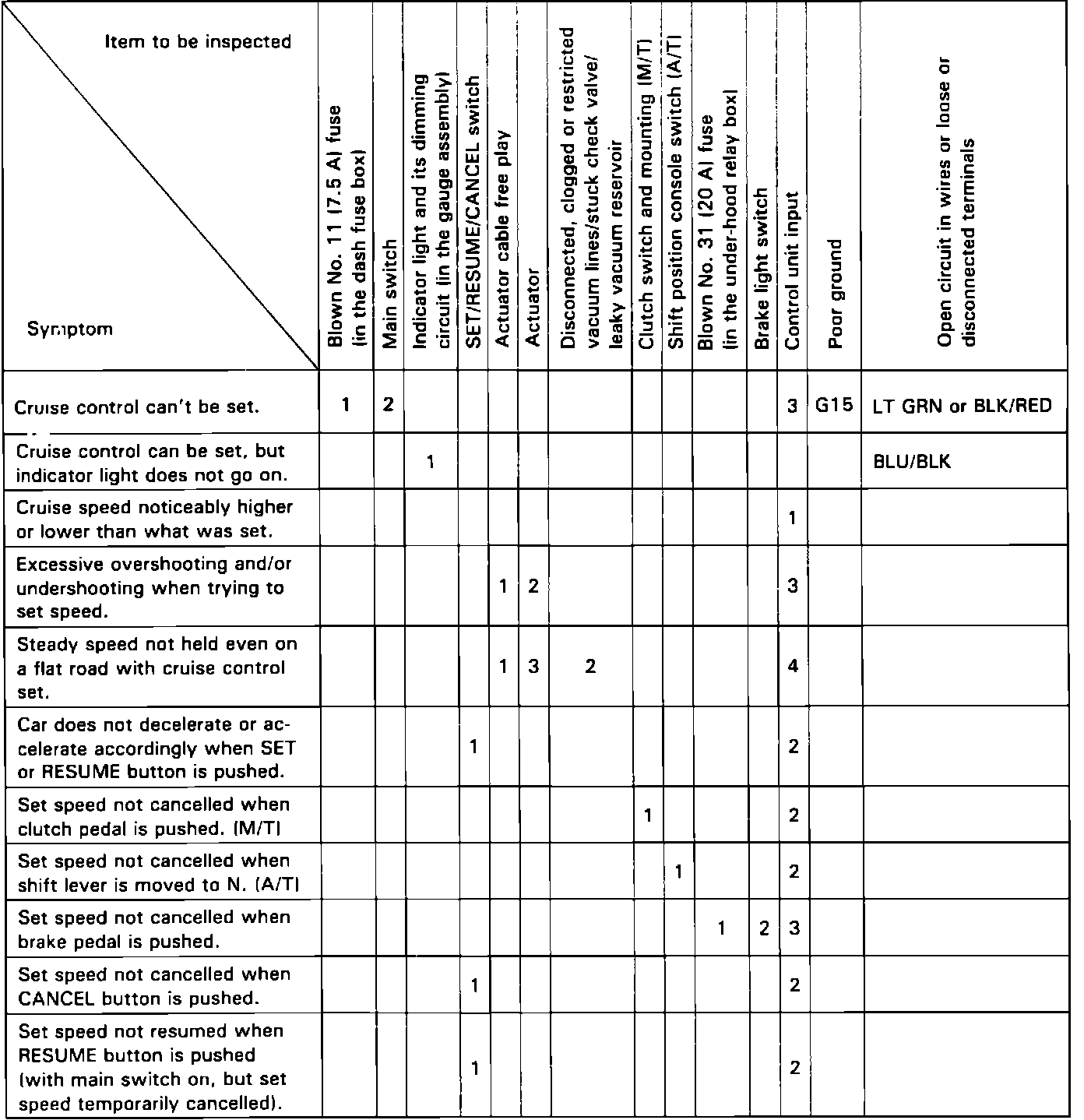

Fig. 5 Troubleshooting Chart:

Refer to Figs. 4 and 5, using numbers in the table following symptoms, as sequence with which fuse or unit may be at fault.
