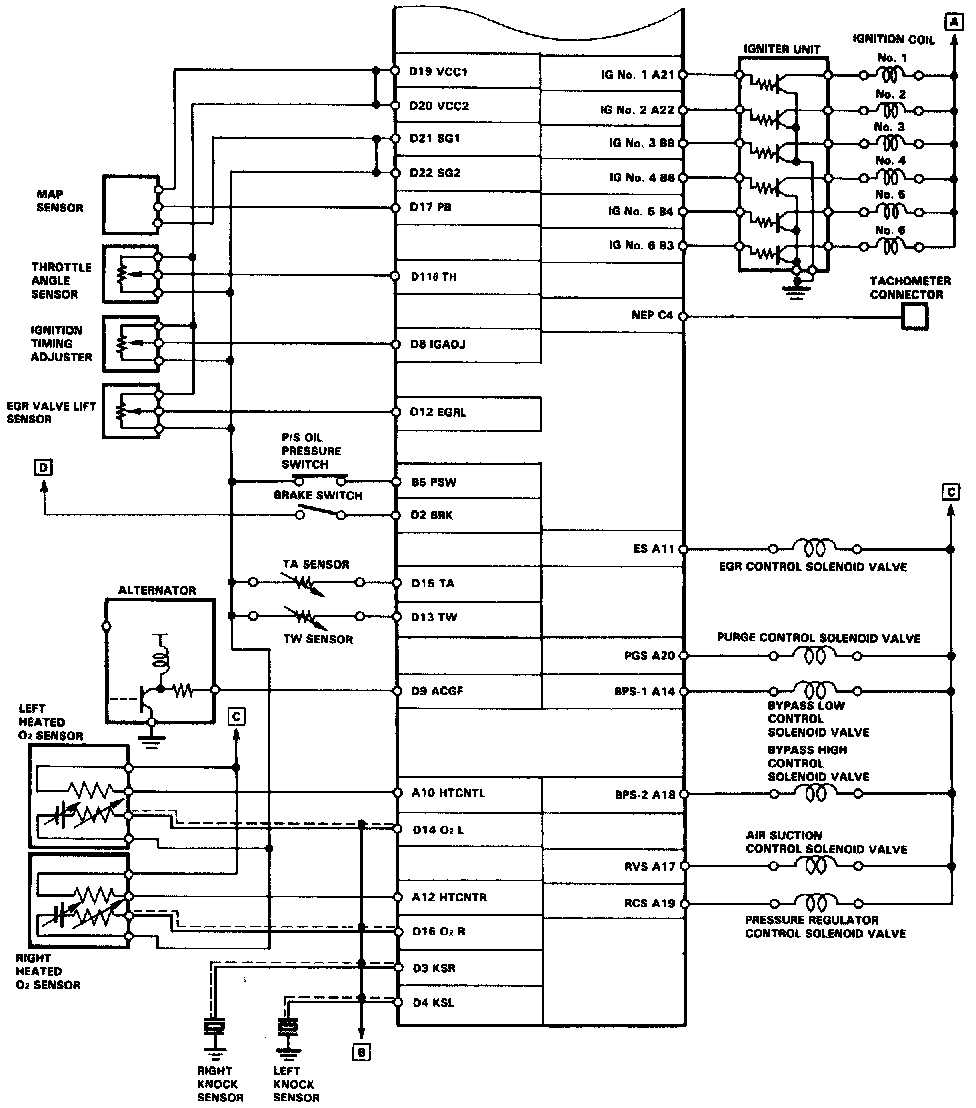

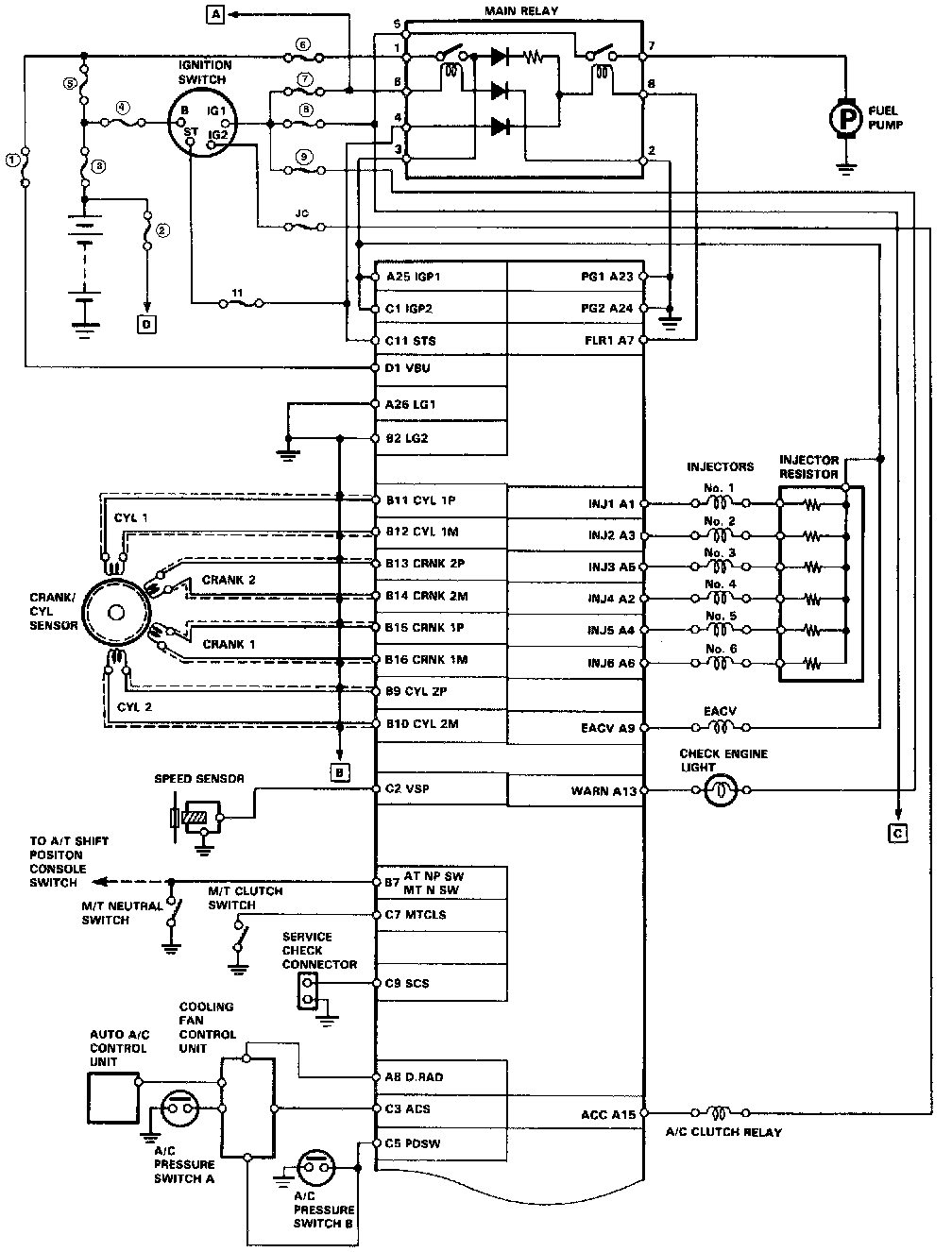

Engine Control Module
FUSES (1)
NO. 15 (ACG) (7.5 A)
(2)
STOP & HORN (20 A)
(3)
MAIN FUSE (BATTERY) (120 A)
(4)
MAIN FUSE (IG SW) (5O A)
(5)
MAIN FUSE (FUSE BOX) (50 A)
(6)
No. 5 (20A)
(7)
NO. 25 (IG COIL) (30 A)
(8)
No. 22 (FUEL PUMP) (20 A)
(9)
No. 13 (BACK UP LT) (7.5 A)
(10)
No. 3 (RR DEF) (15 A)
(11)
No. 14 (EFI STS) (7.5 A)
*: In the under-hood fuse/reley box
