A/T Torque Data

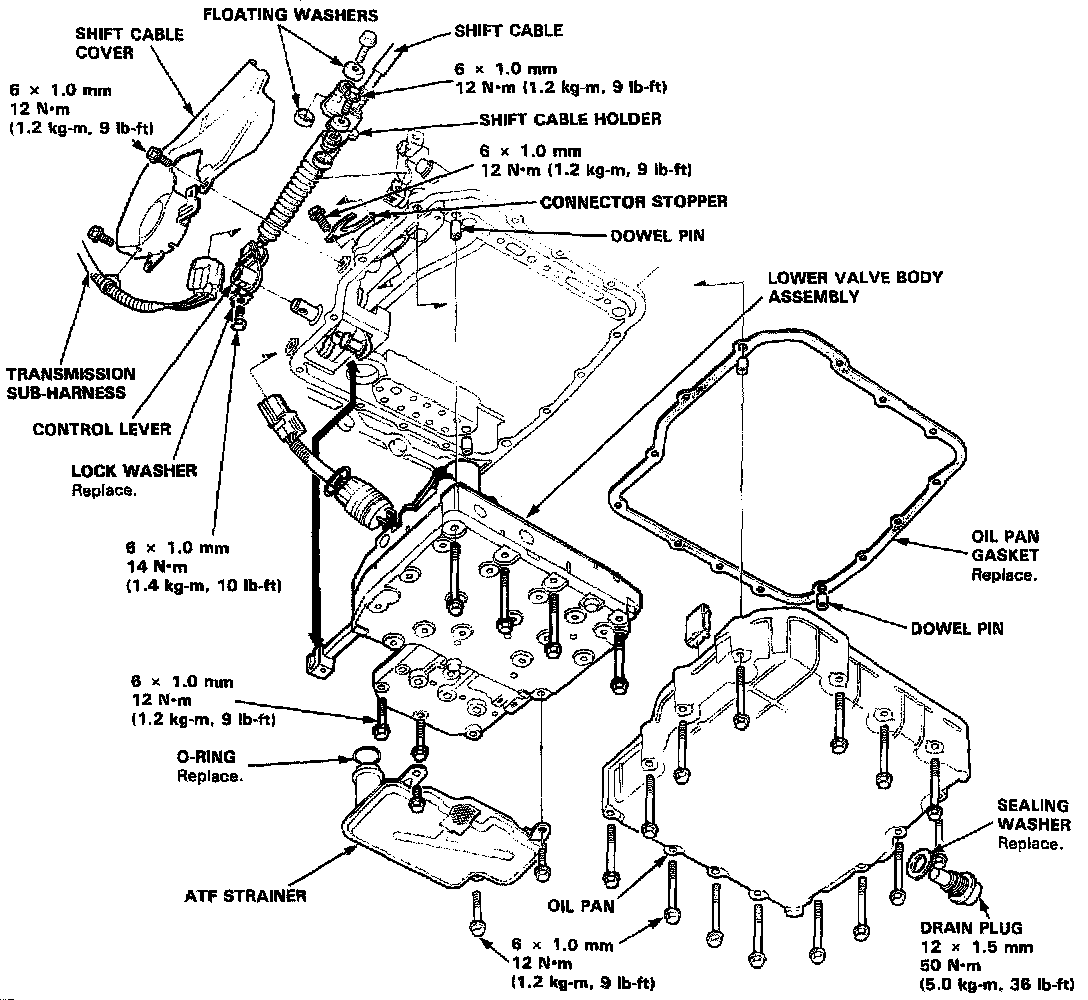

MPYA 4-spd A/T, Lower Valve Body Assembly:

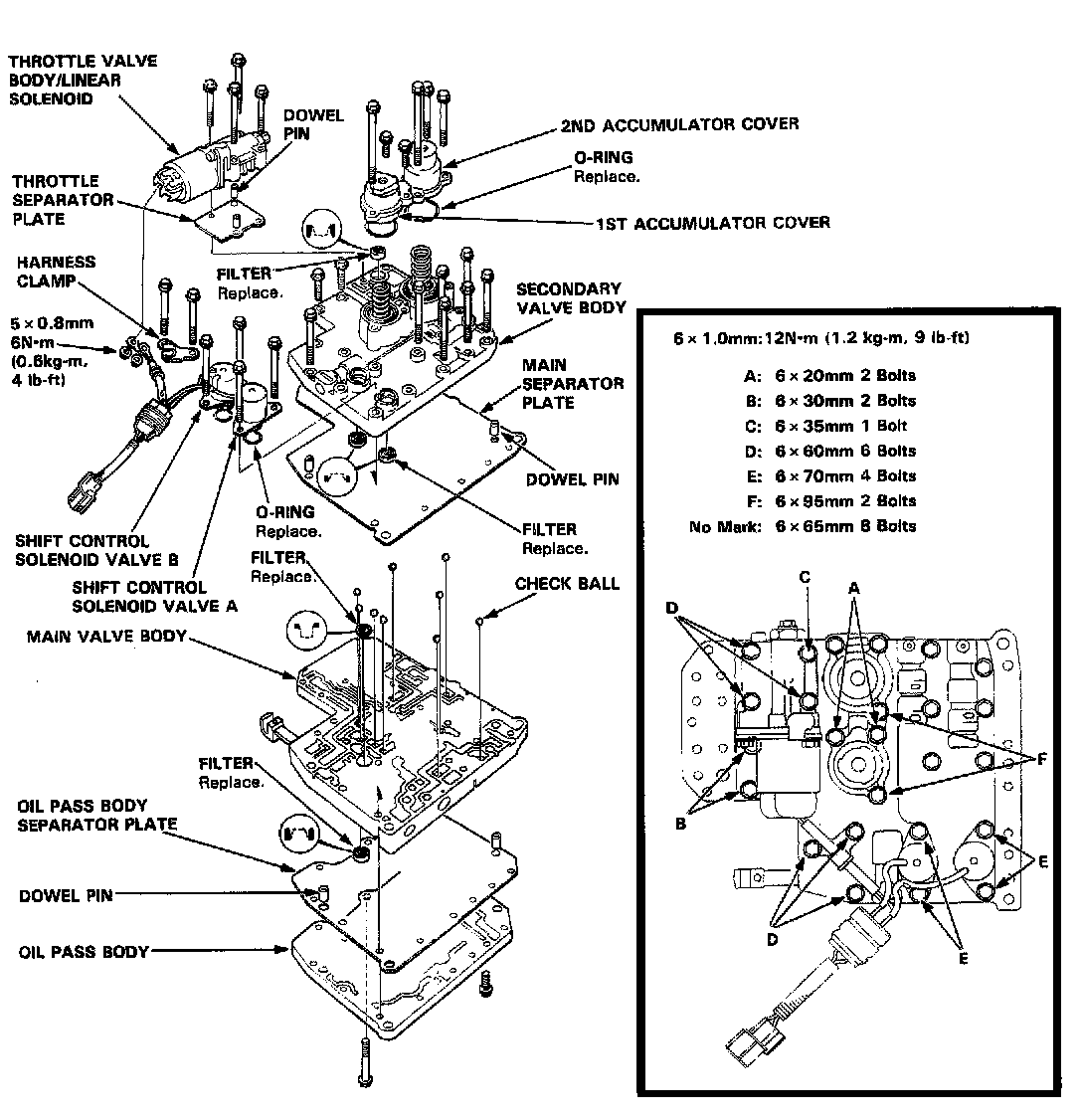

MPYA 4-spd A/T, Main Valve Body Assembly:

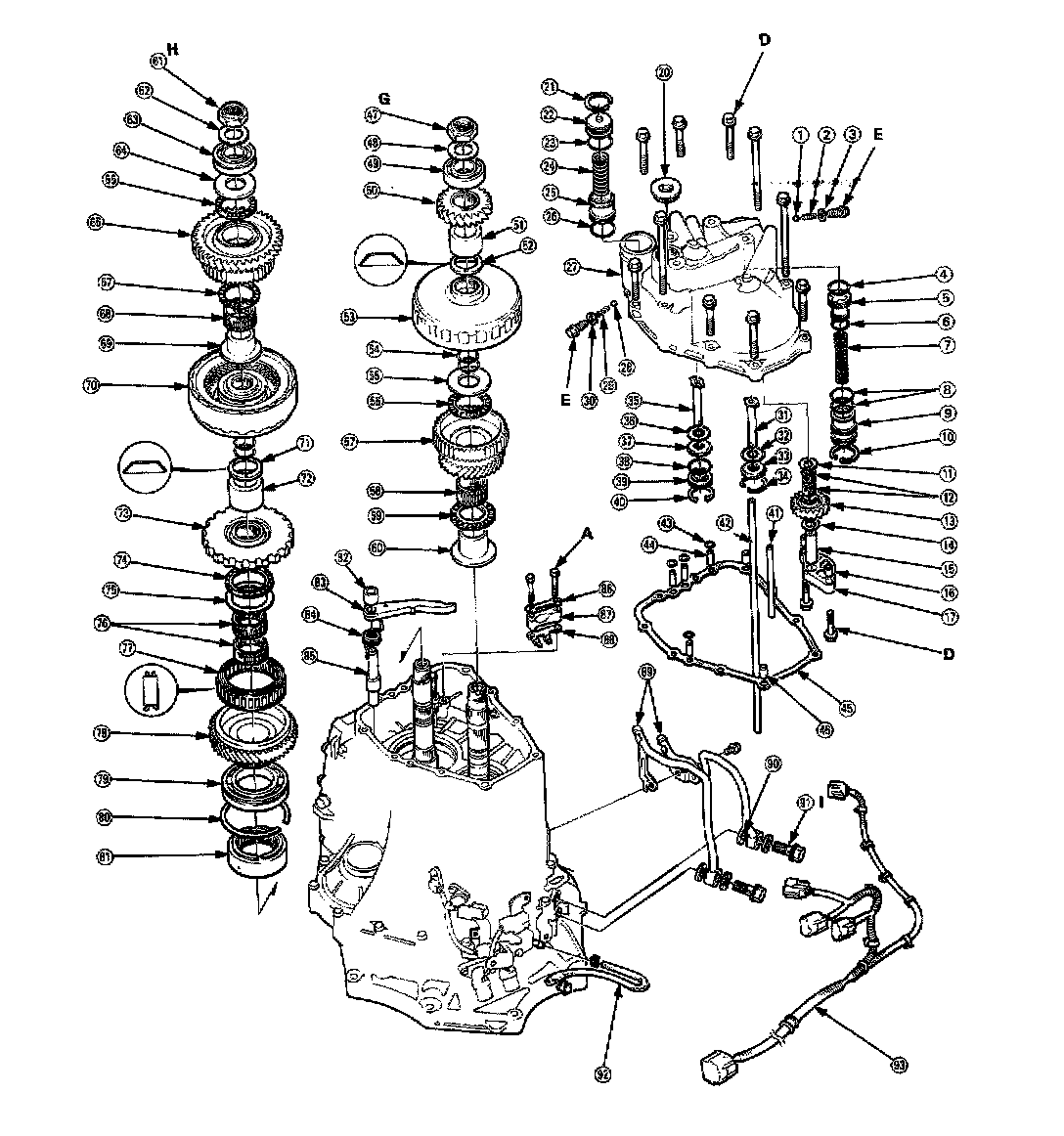

MPYA 4-sps A/T, Rear Cover Assembly 1 Of 8:

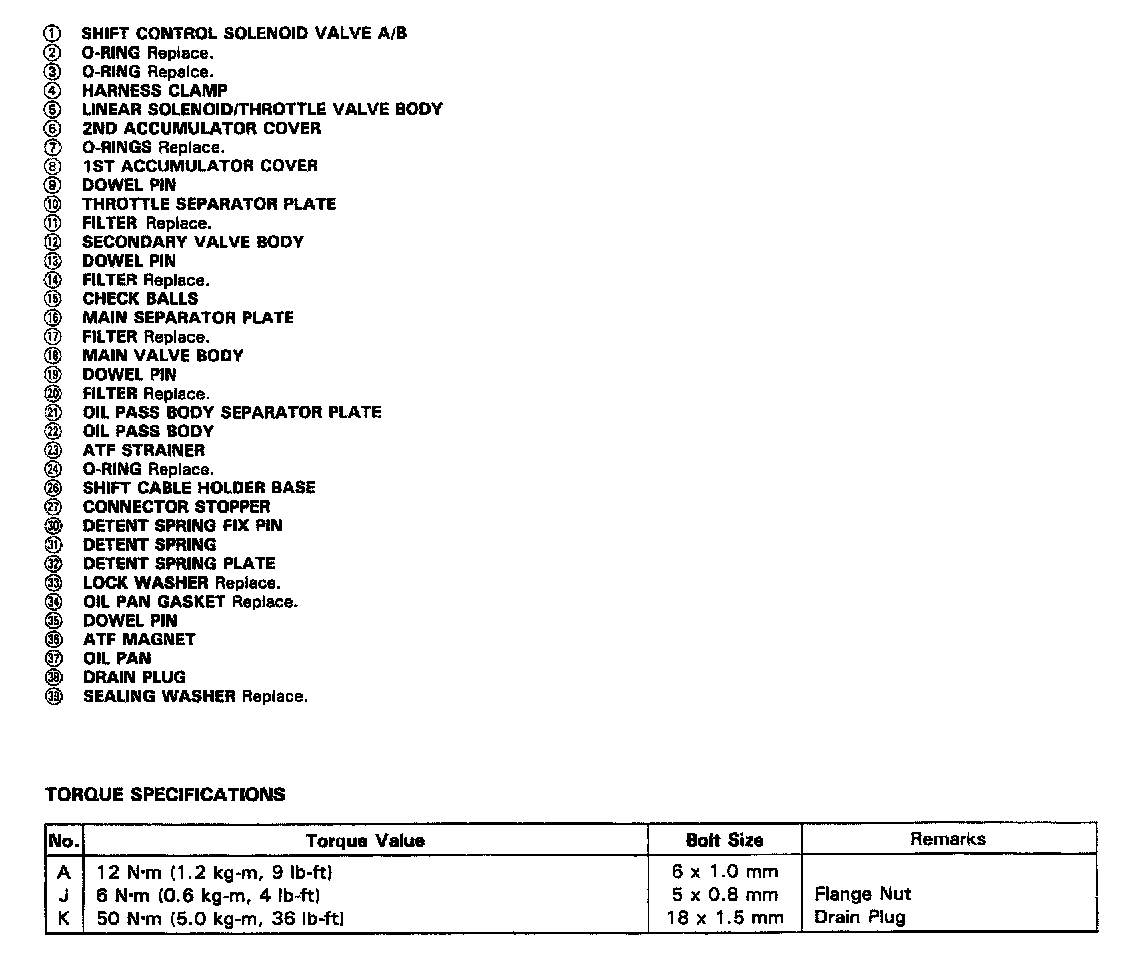

MPYA 4-spd A/T, Rear Cover Assembly Legend 2 Of 8:

MPYA 4-spd A/T, Transmission Housing/Lower Valve Body 3 Of 8:

MPYA 4-spd A/T, Transmisssion Housing Legend 4 Of 8:

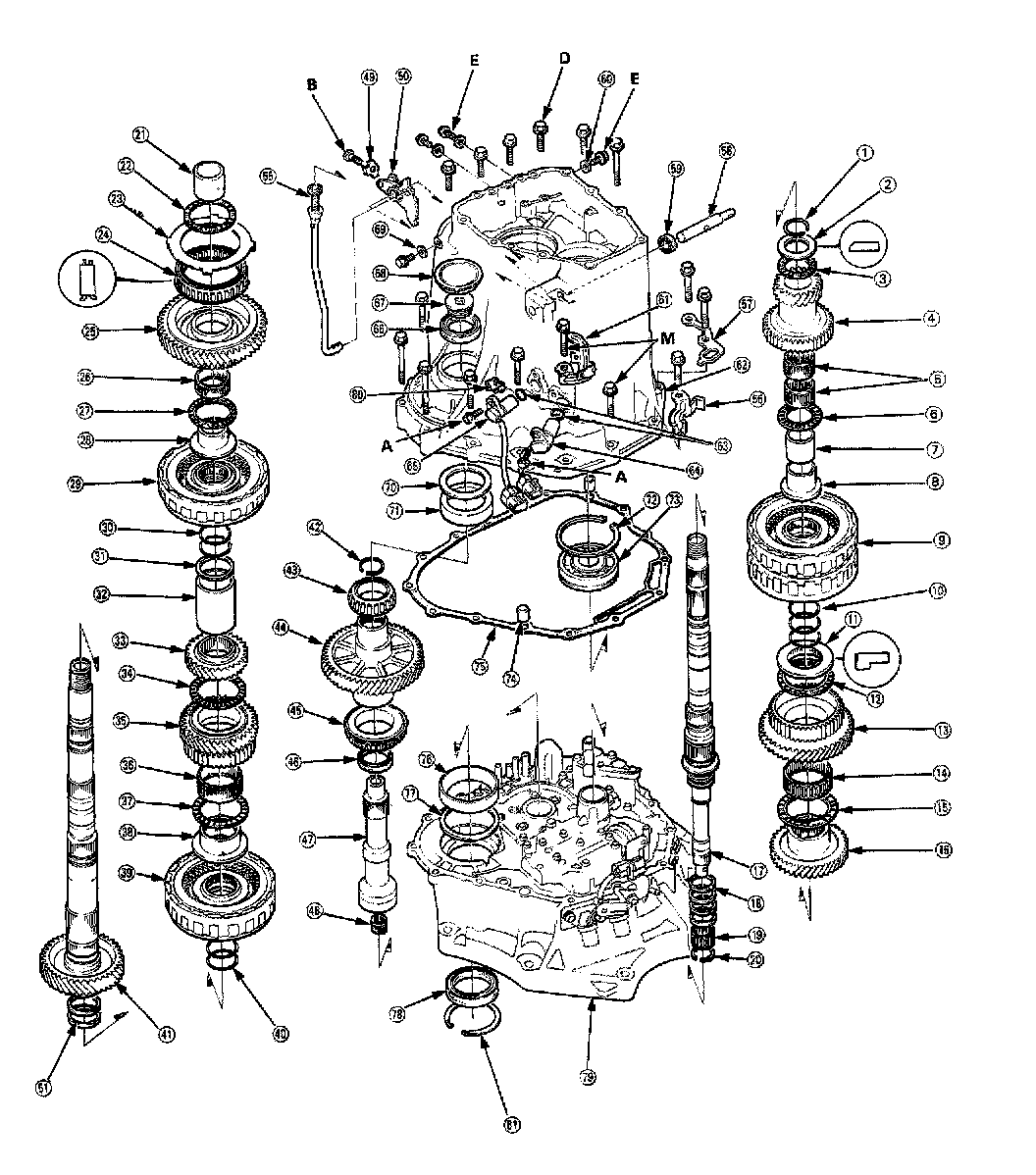

MPYA 4-spd A/T, Transmission Housing 5 Of 8:

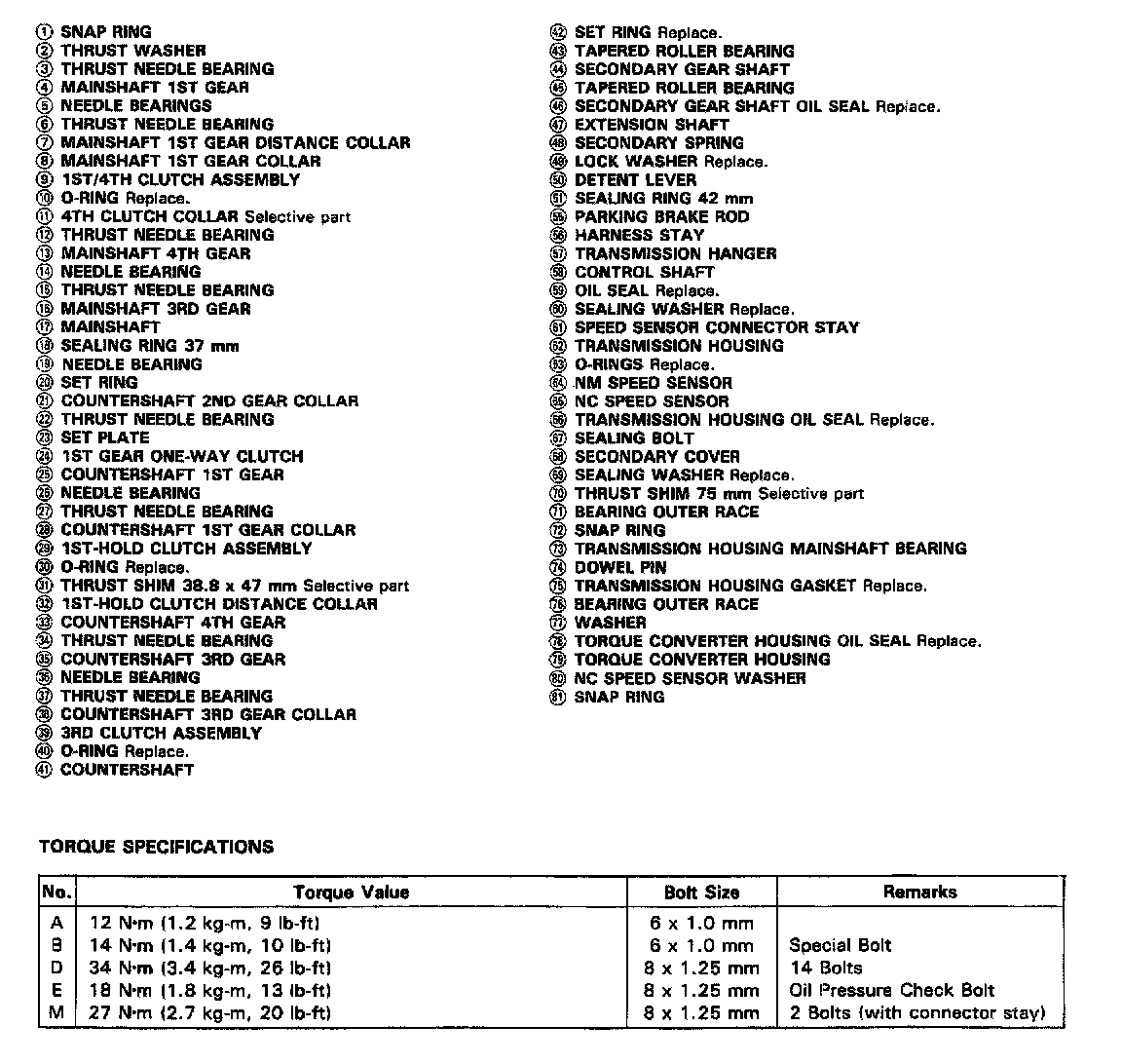

MPYA 4-spd A/T, Transmission Housing Legend 6 Of 8:

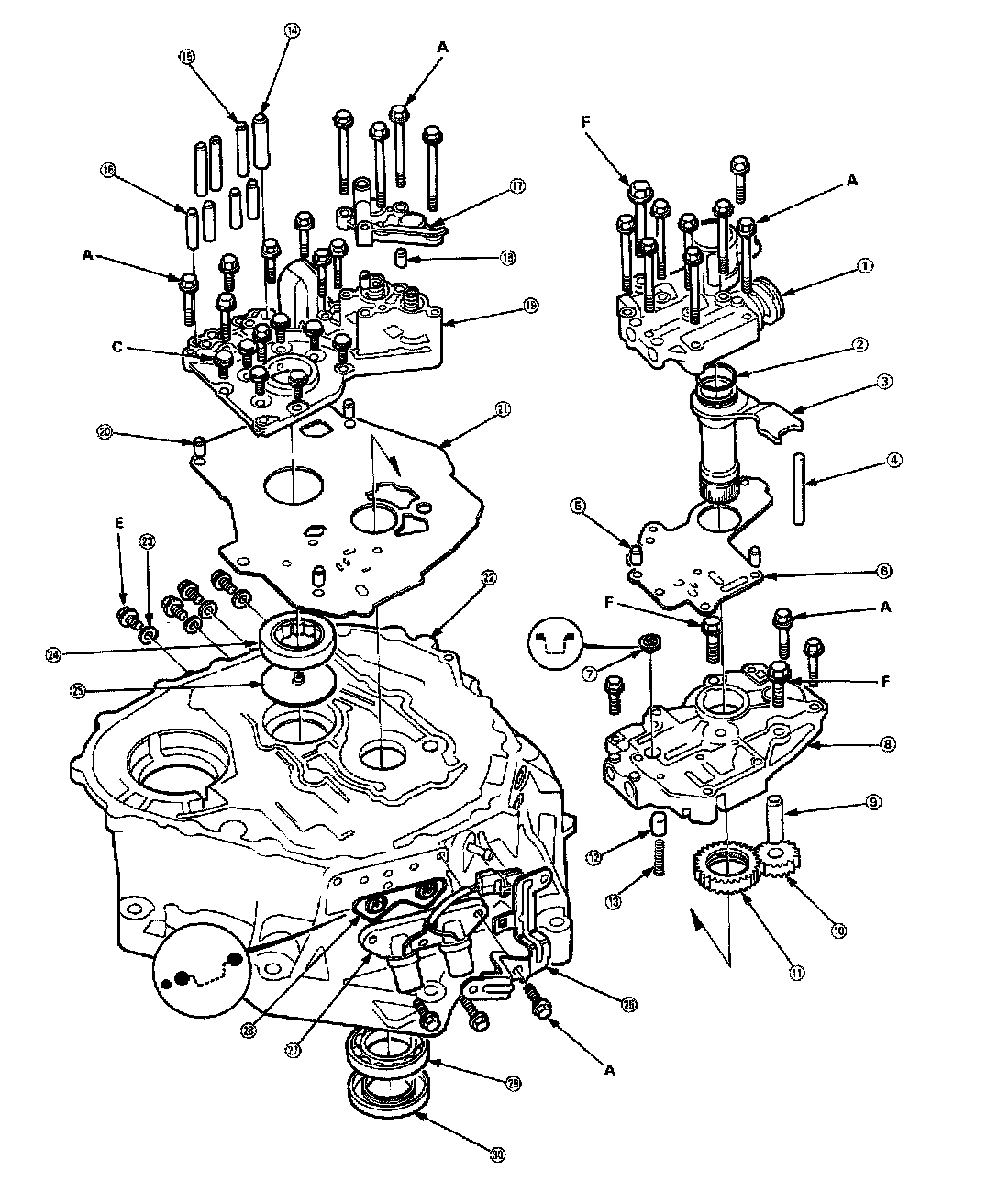

MPYA 4-spd A/T, Torque Converter Housing/Valve Body 7 Of 8:

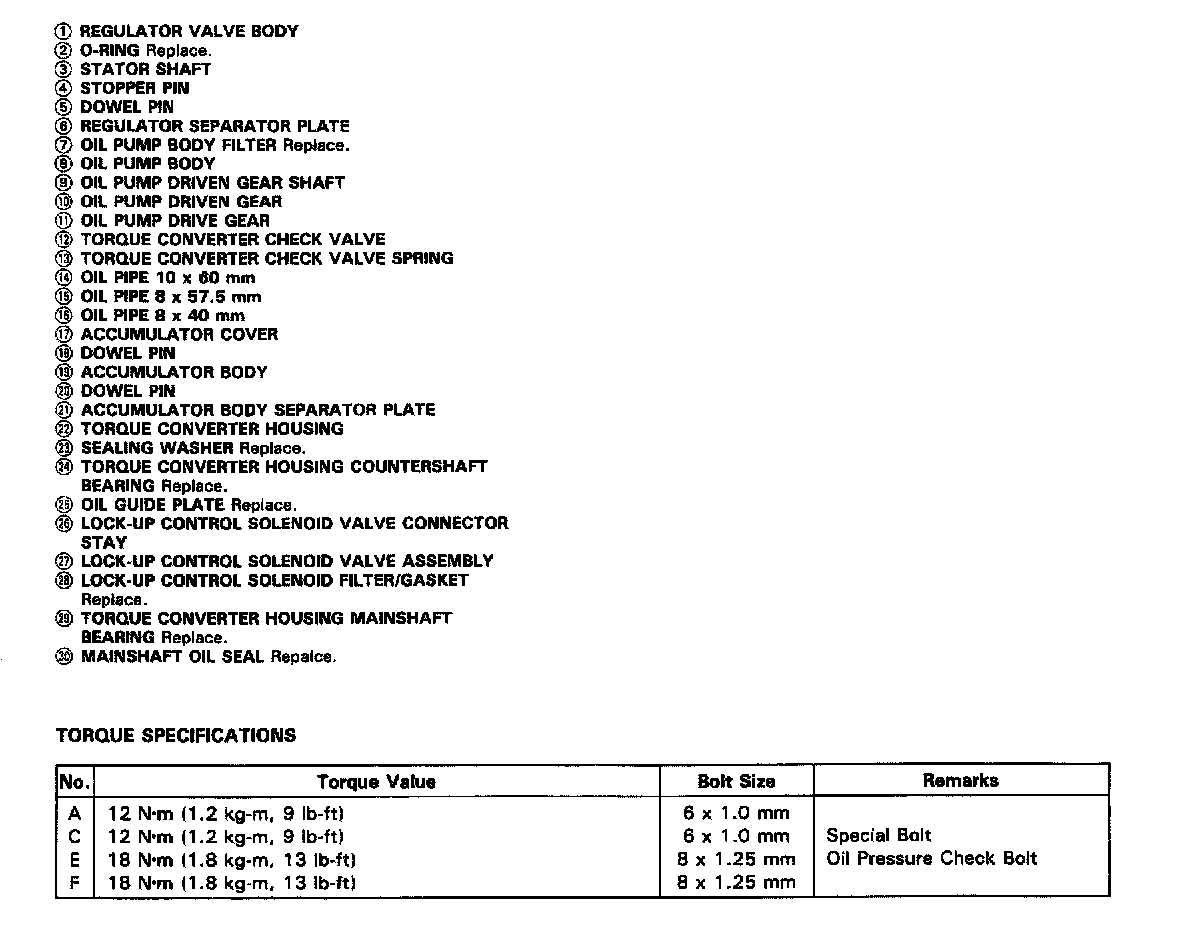

MPYA 4-spd A/T, Torque Converter Housing Legend 8 Of 8:

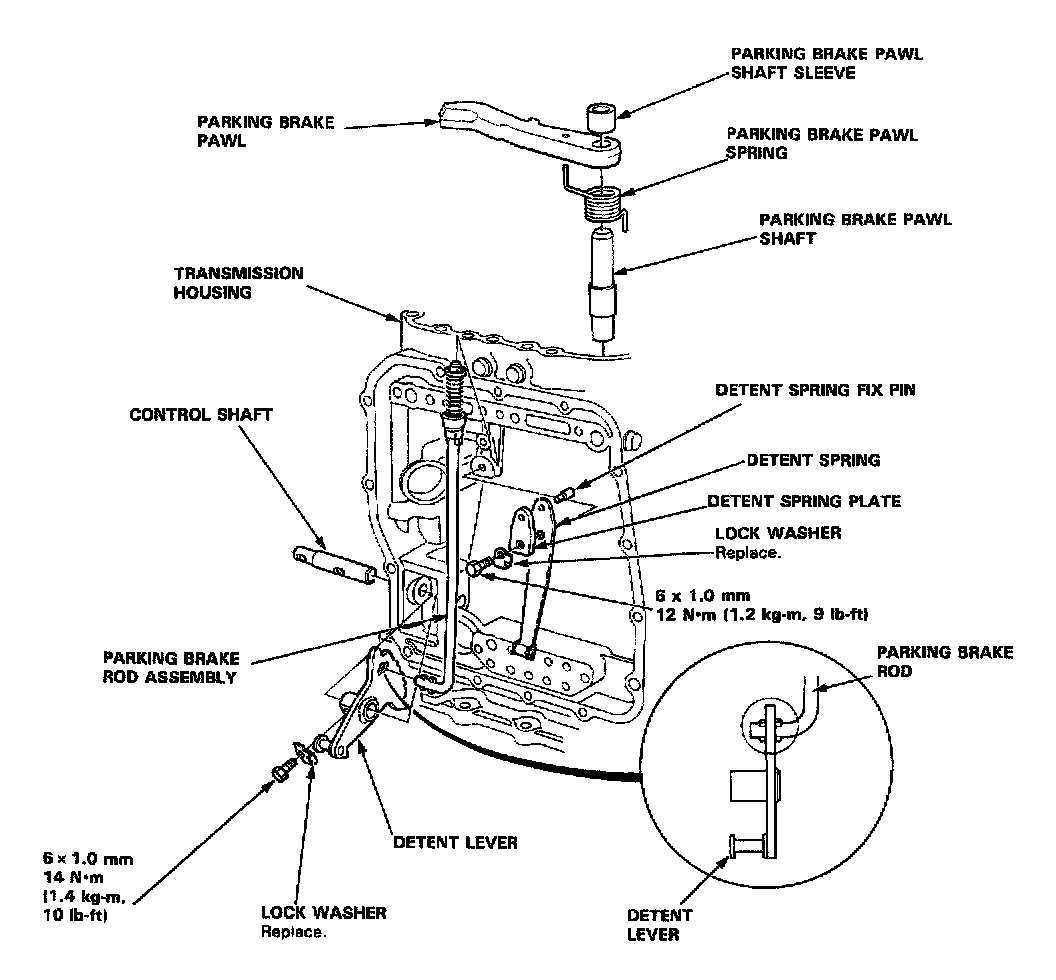

MPYA 4-spd A/T, Parking Brake Mechanism:

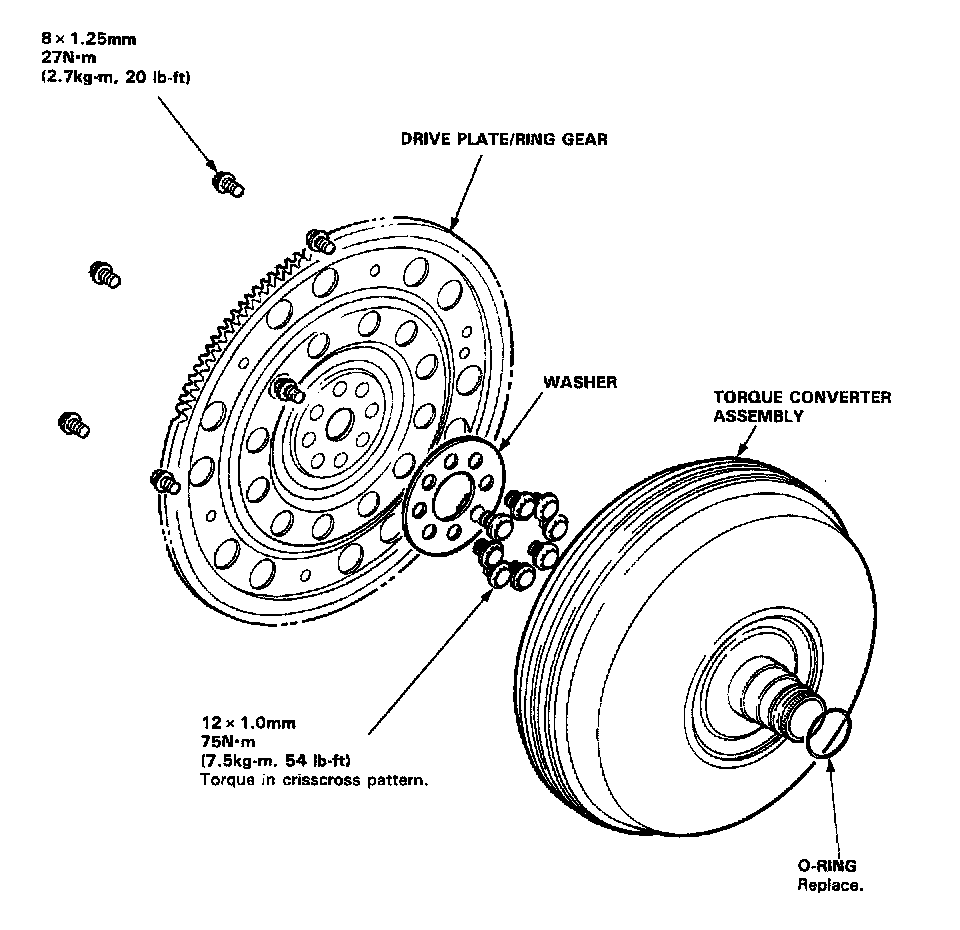

MPYA 4-spd A/T, Torque Converter Assembly:

MPYA 4-spd A/T, Transmission Housing Mounting Bolts:

MPYA 4-spd A/T, Transmission Mounts:

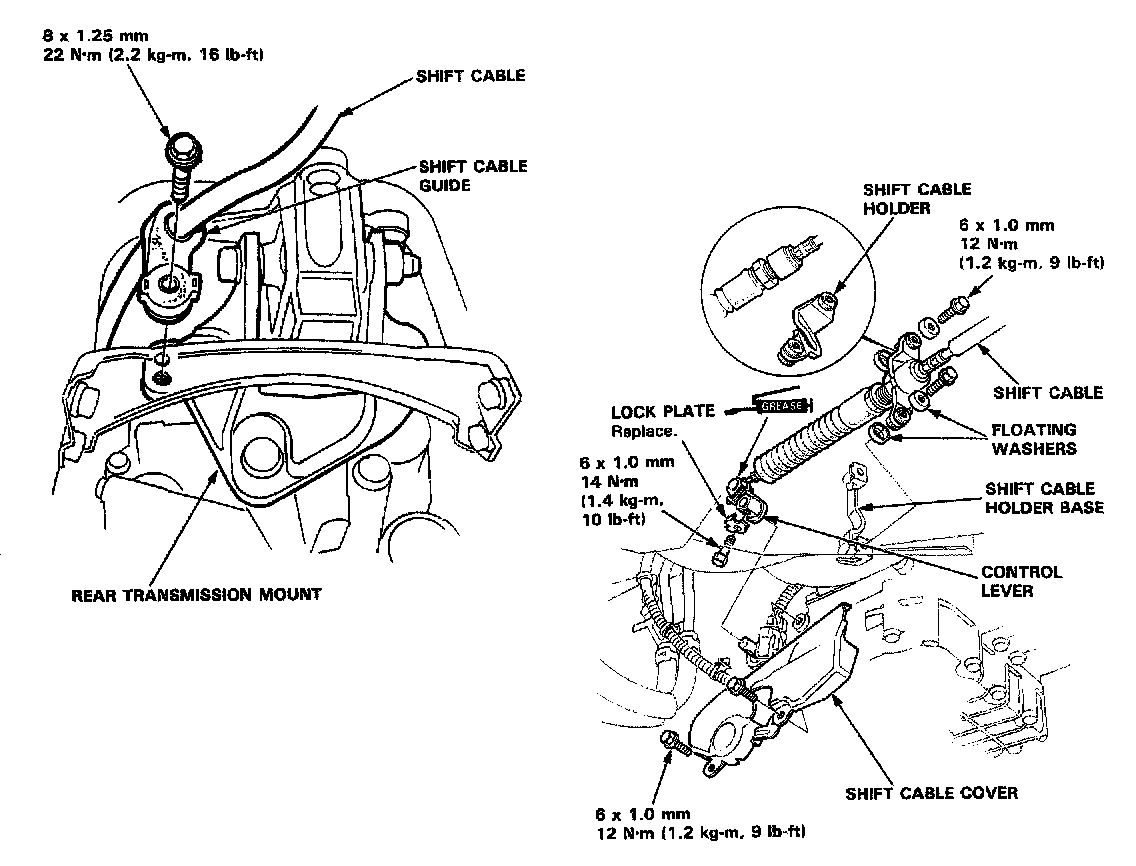

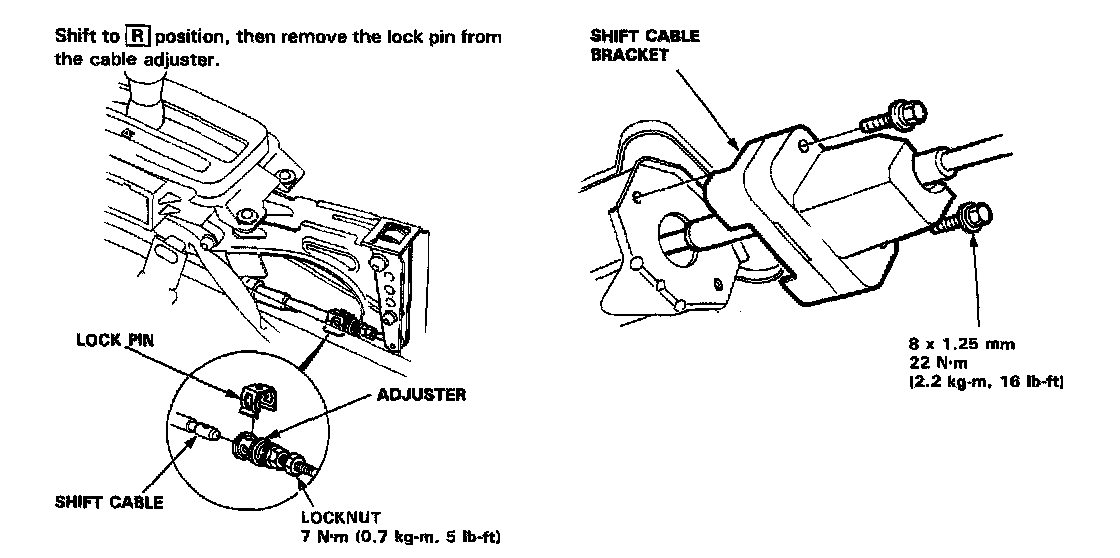

MPYA 4-spd A/T, Shift Cable:

MPYA 4-spd A/T, Shift Cable Guide & Holder:

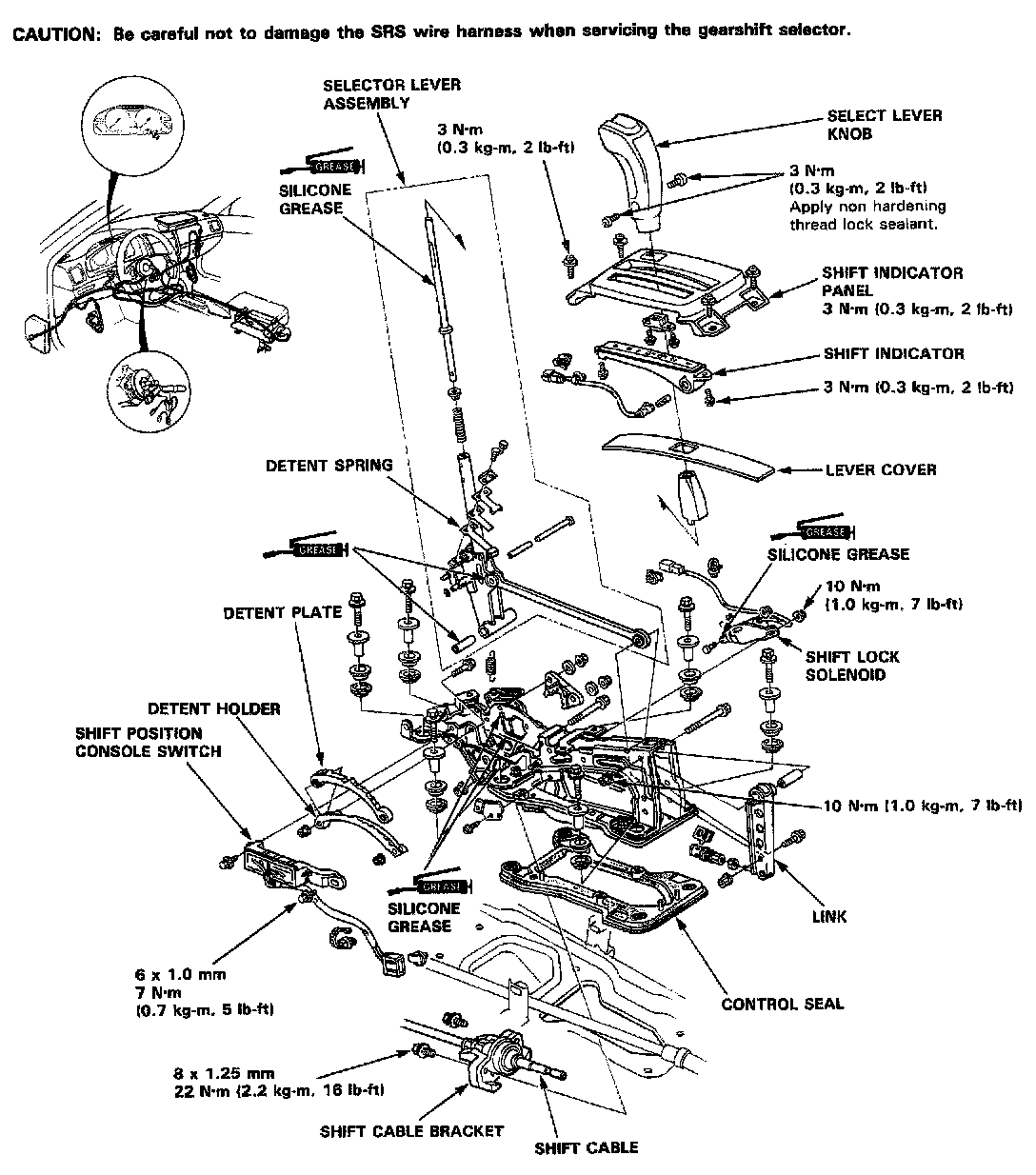

MPYA 4-spd A/T, Gearshift Selector:

MPYA 4-spd A/T, Gear Shift Detent Spring:
