Heater Core Case: Adjustments
Defroster Door Adjustment 1.
Set the mode control switch on HEAT.
2.
Loosen the adjusting screw.
3.

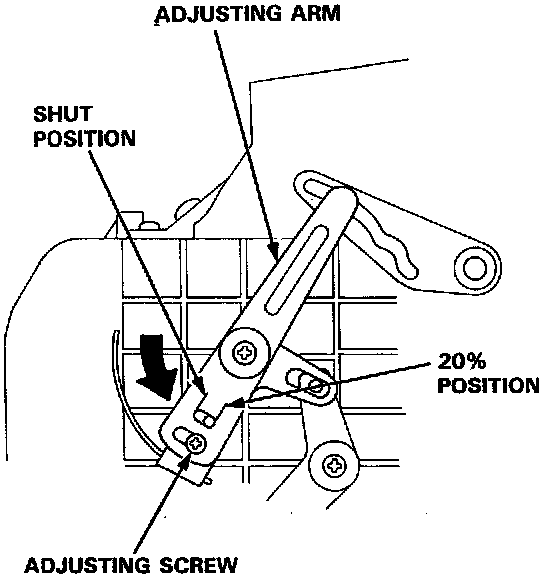

Turn the adjusting arm to the left, as shown, so that there will be no heat leakage from the defroster door.
4.
Tighten the adjusting screw.
