Fail Safe Relay: Testing and Inspection

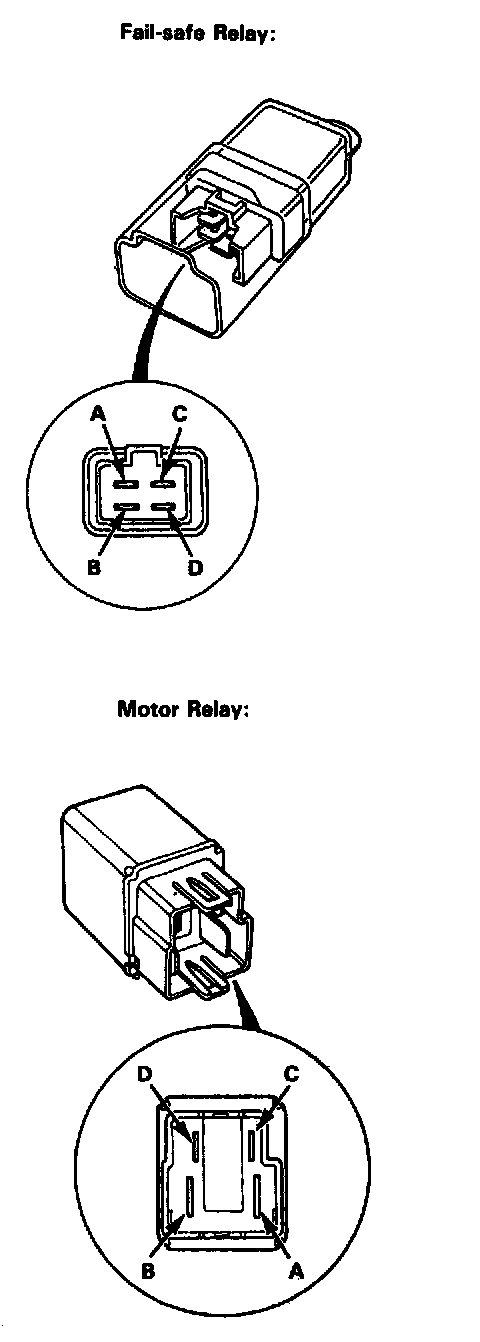

Relay Inspection 1.
Remove the fail-safe relays and motor relay.
2.
Check for continuity between terminals C and D. There should be continuity.
3.
Check for continuity between terminals A and B. There should be continuity when the battery is connected between terminals C and D. There should no continuity when the battery is disconnected.
