Transmission Speed Sensor: Service and Repair

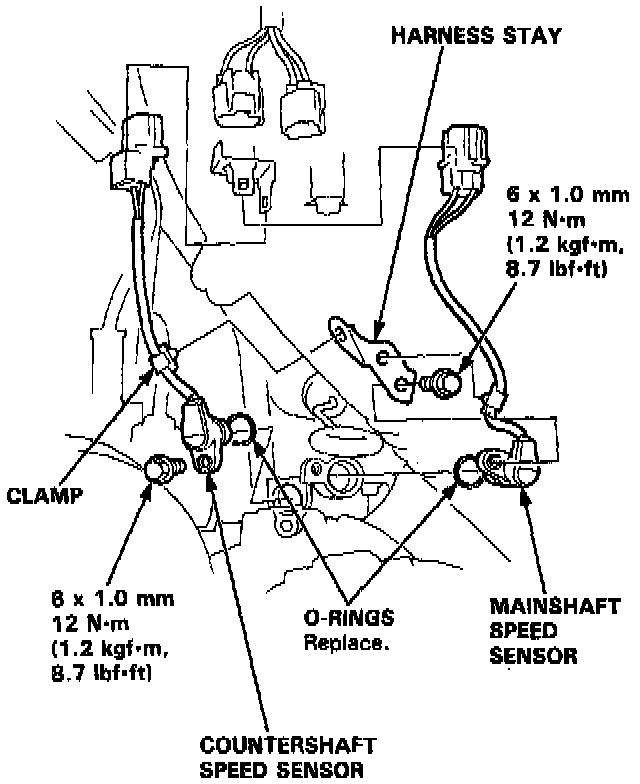

MAINSHAFT/COUNTERSHAFT SPEED SENSORS
1. Disconnect the speed sensor connectors, then remove the harness clamp on the countershaft speed sensor harness from the harness stay.
2. Remove the 6 mm bolts securing the mainshaft and countershaft speed sensors from the transmission housing.
3. Remove the mainshaft and countershaft speed sensors.
4. Install the mainshaft and countershaft speed sensors in the reverse order of the removal.
