Control Module HVAC: Description and Operation









FAN CONTROL UNIT

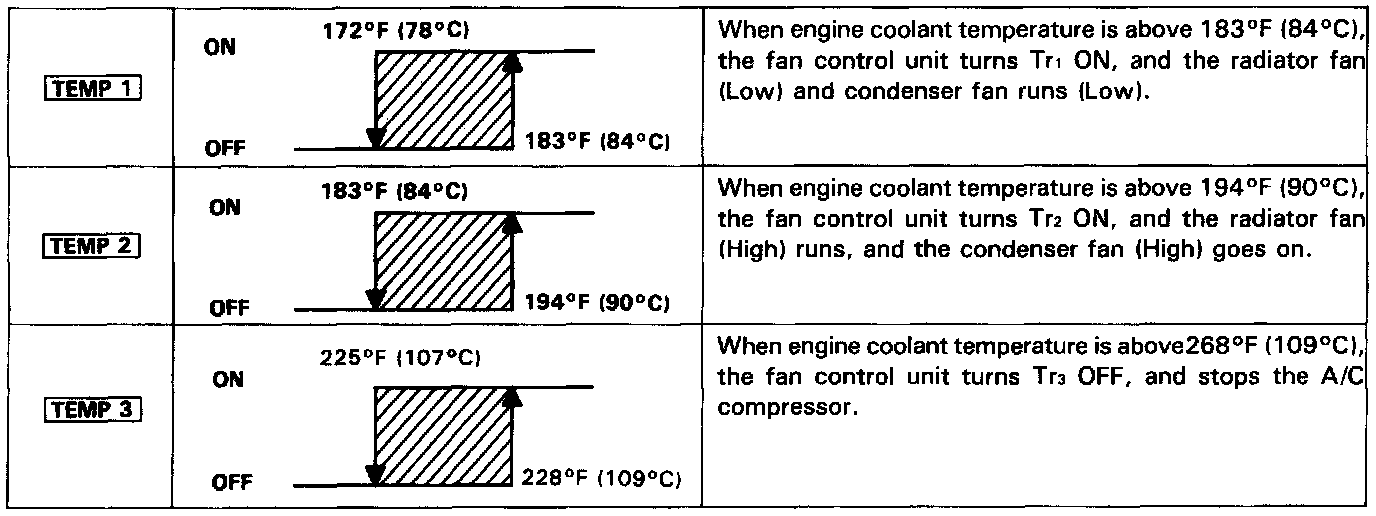

The fan control unit makes calculations based on signals from the radiator fan control sensor. It then controls the operation of the radiator fan, condenser fan and A/C system.
