Transmission Assembly

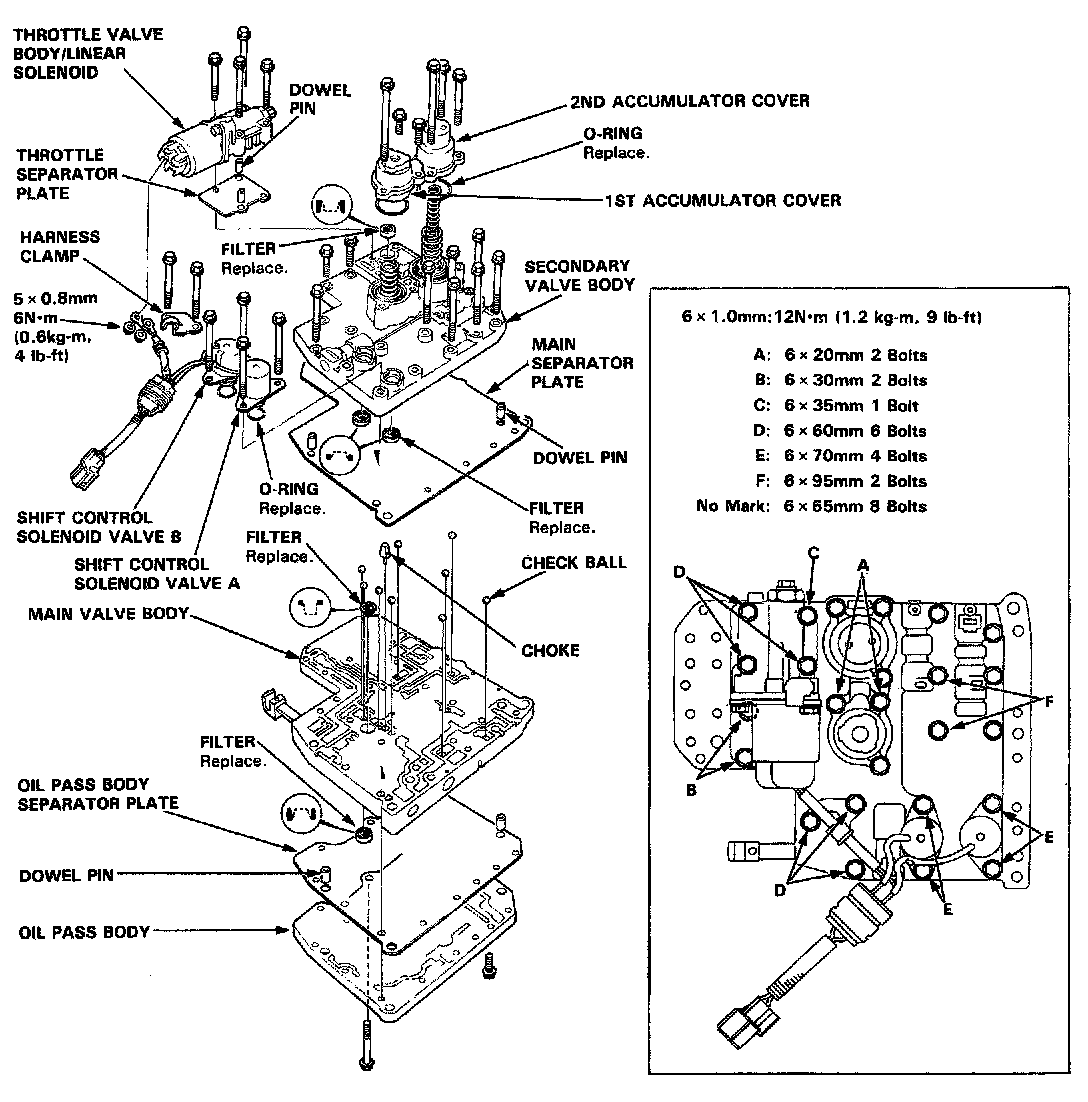

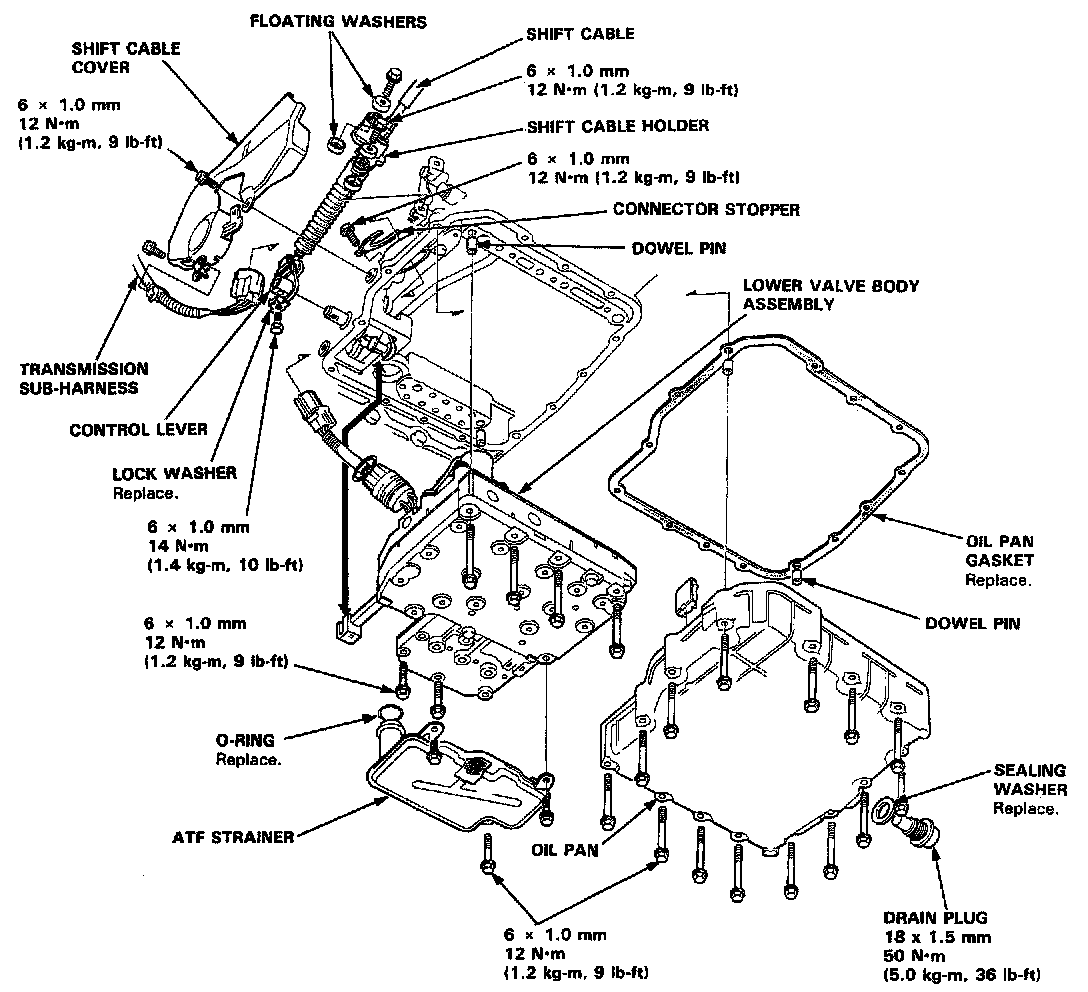

MPYA 4-spd A/T, Lower Valve Body Assembly:

MPYA 4-spd A/T, Valve Body Torque:

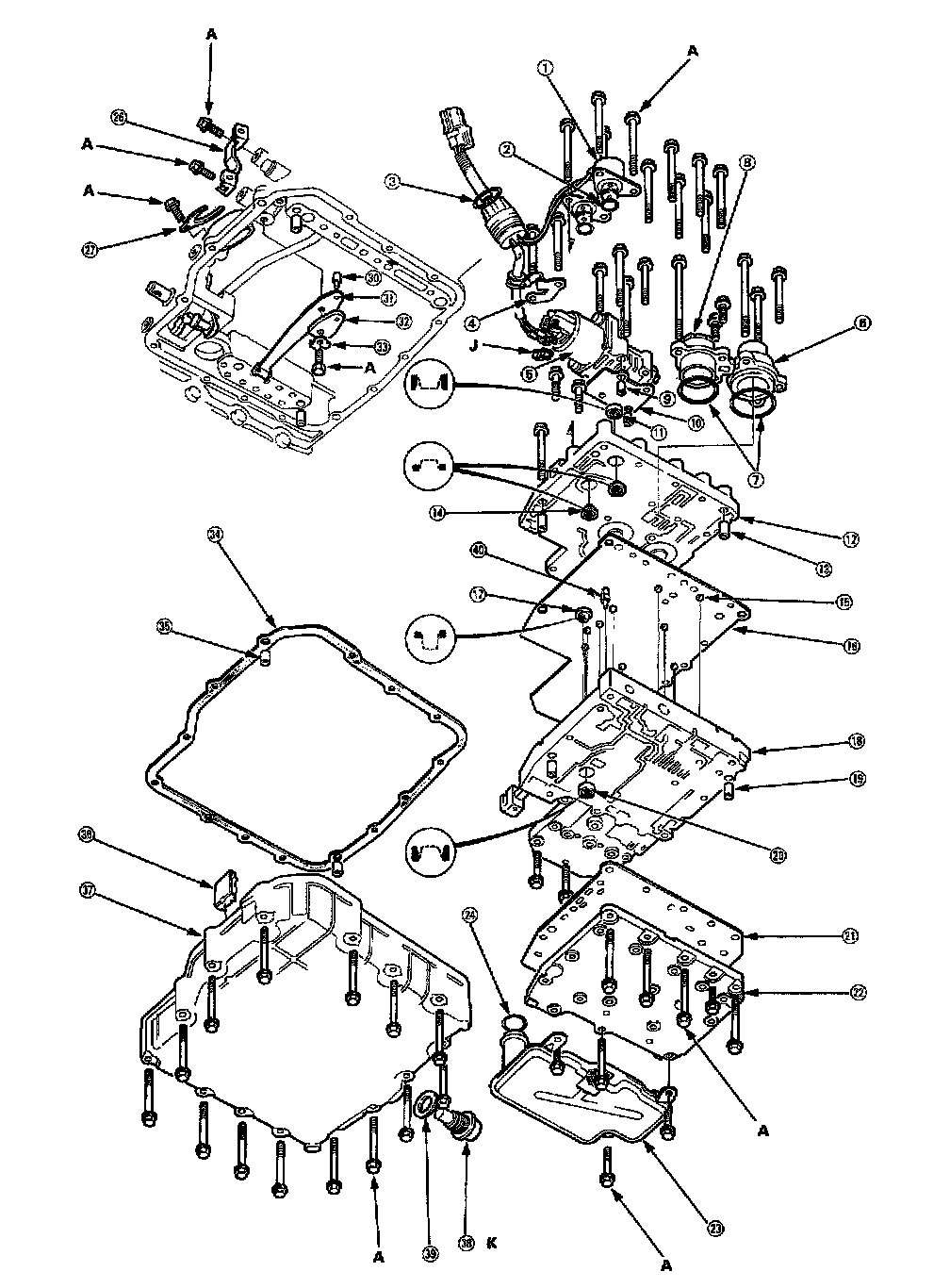

MPYA 4-spd A/T, Housing/Lower Valve Body (1 Of 8):

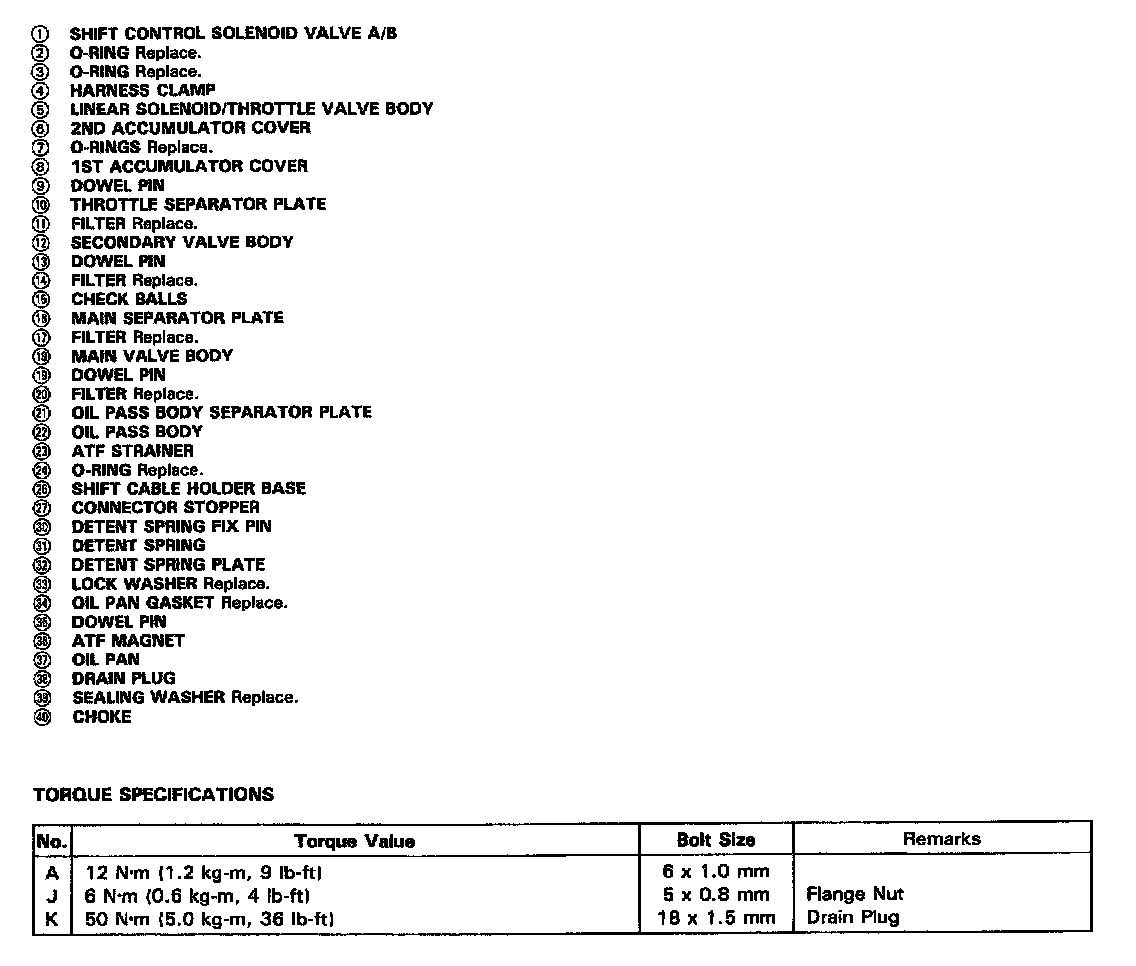

MPYA 4-spd A/T, Housing/Lower Valve Body Legend (2 0f 8):

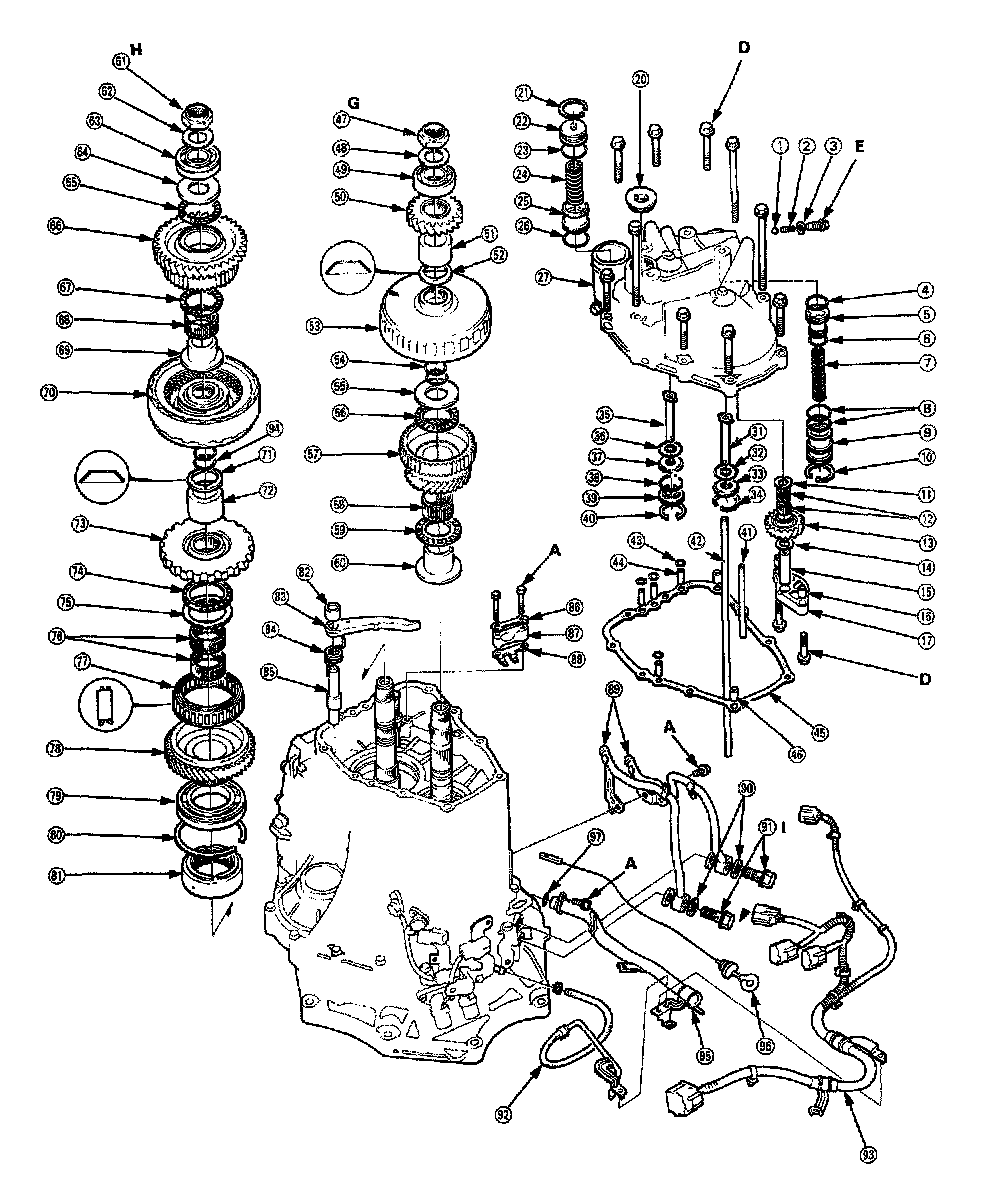

MPYA 4-spd A/T, Rear Cover (3 Of 8):

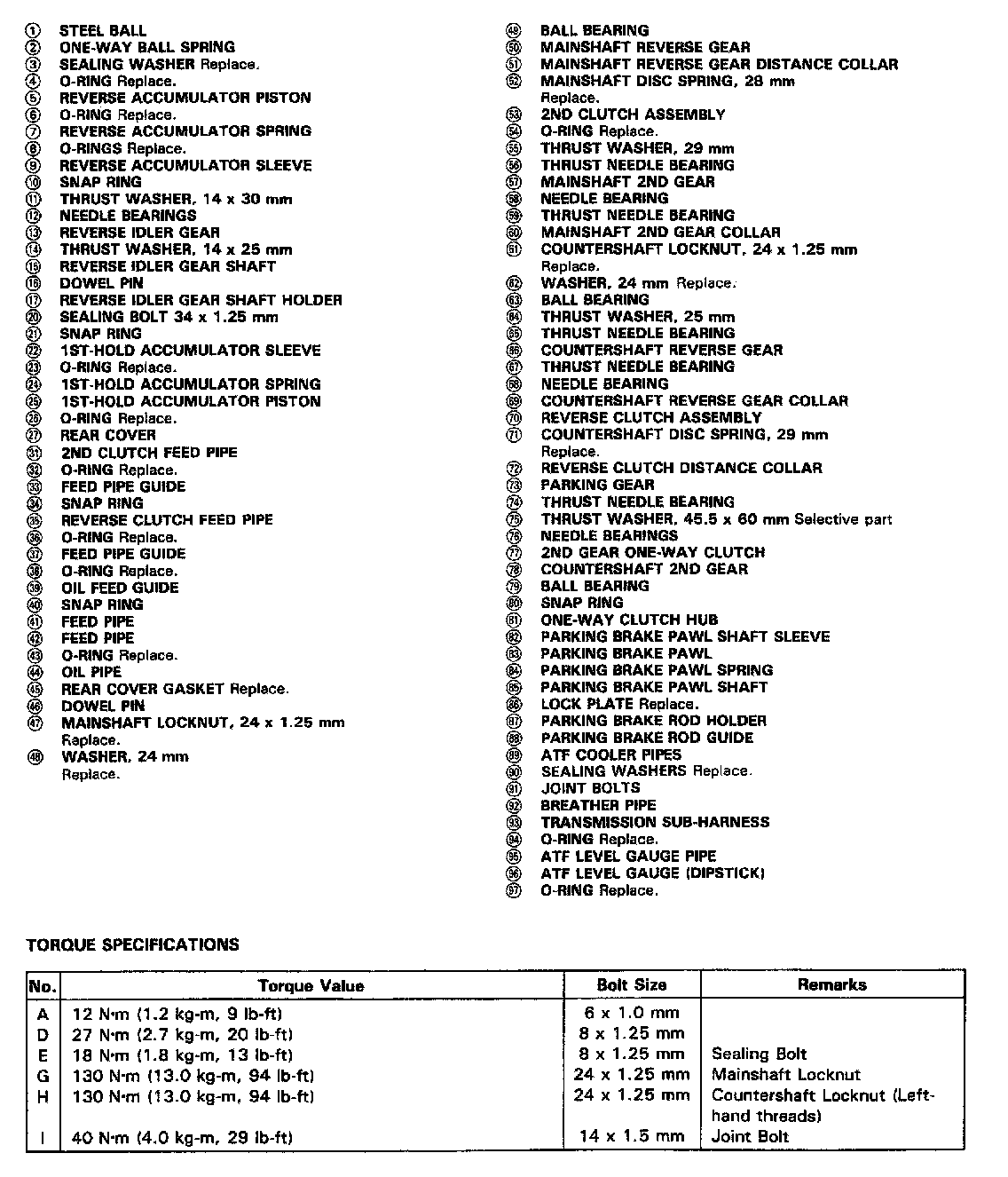

MPYA 4-spd A/T, Rear Cover Legend (4 Of 8):

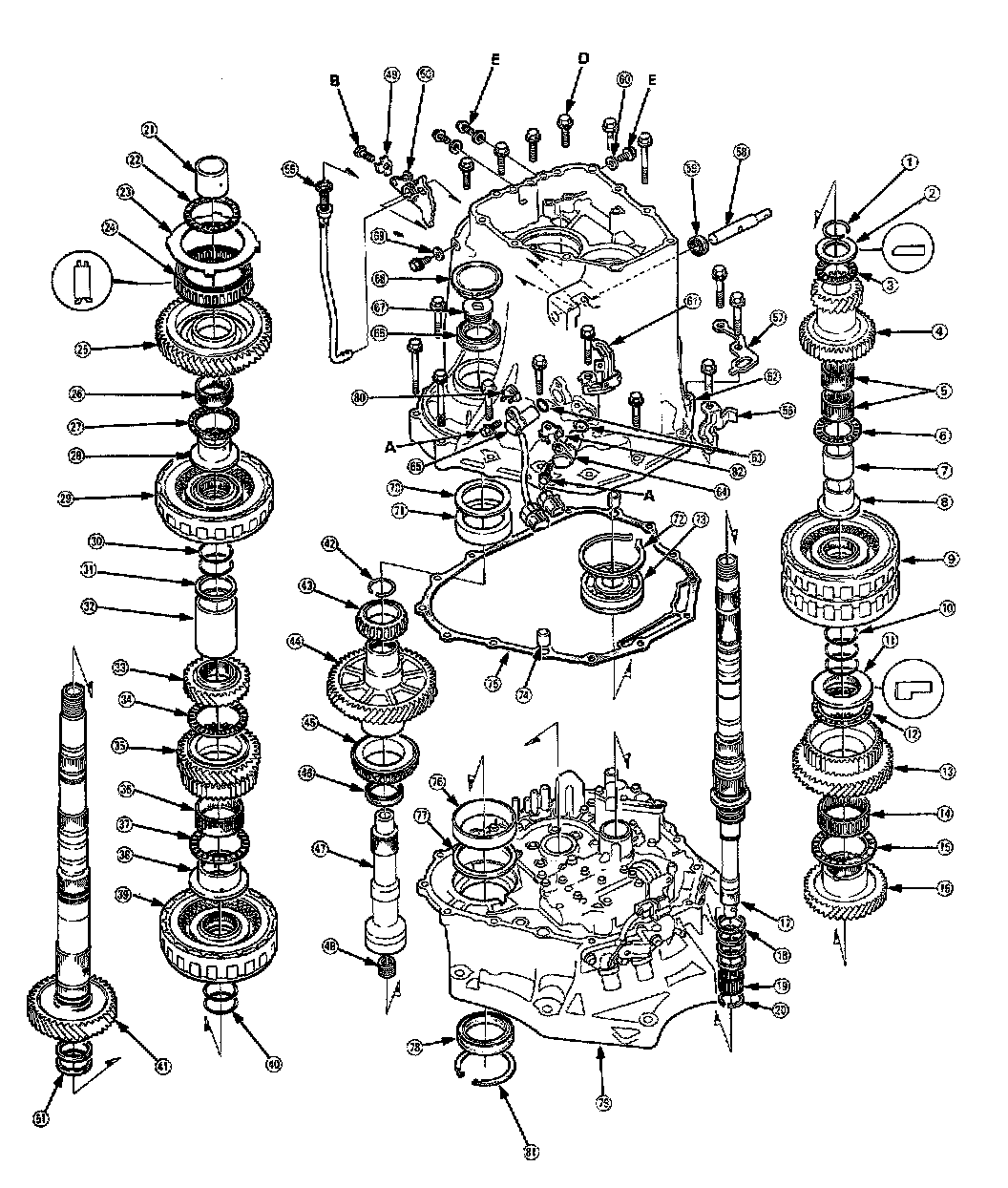

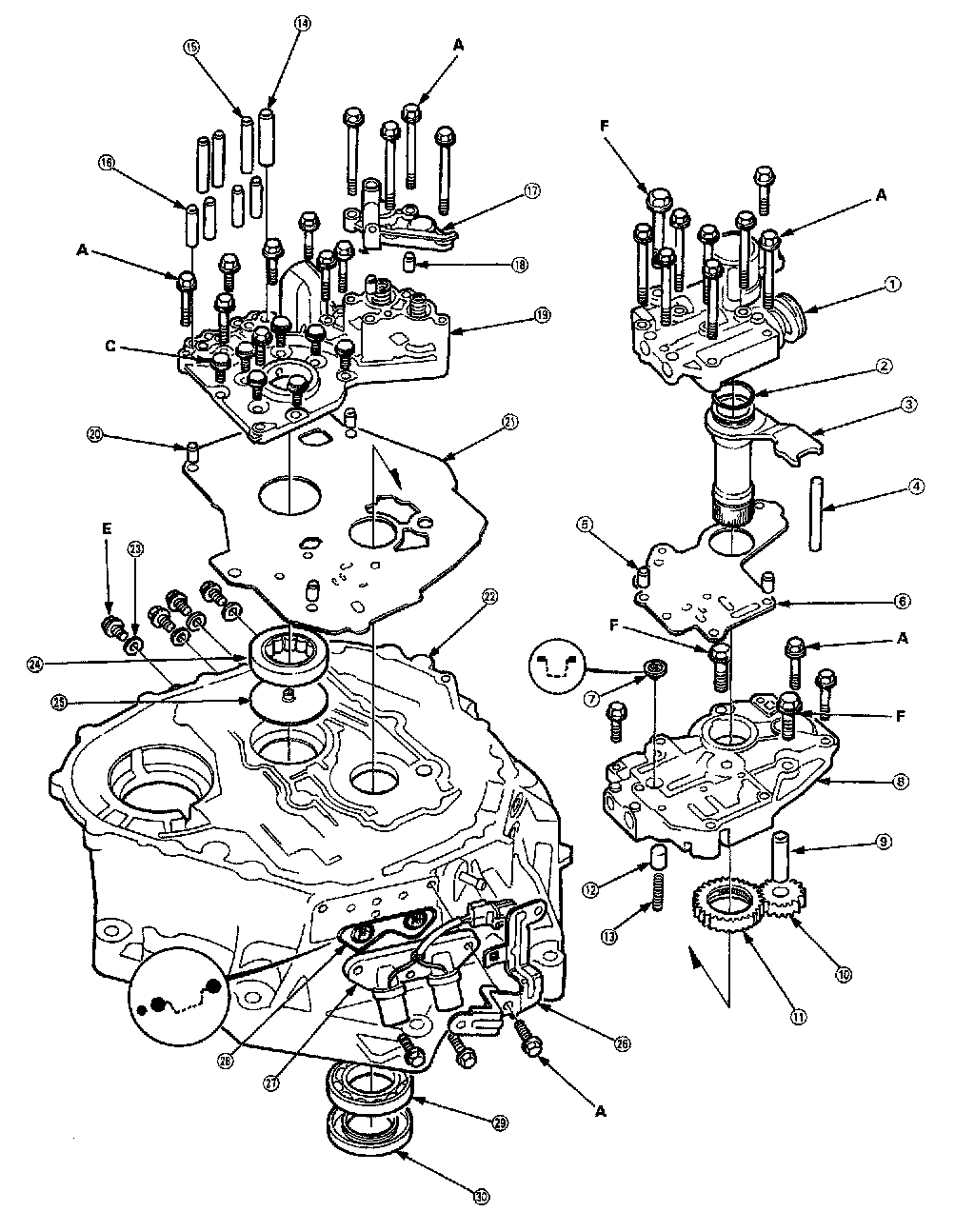

MPYA 4-spd A/T, Transmission Housing (5 Of 8):

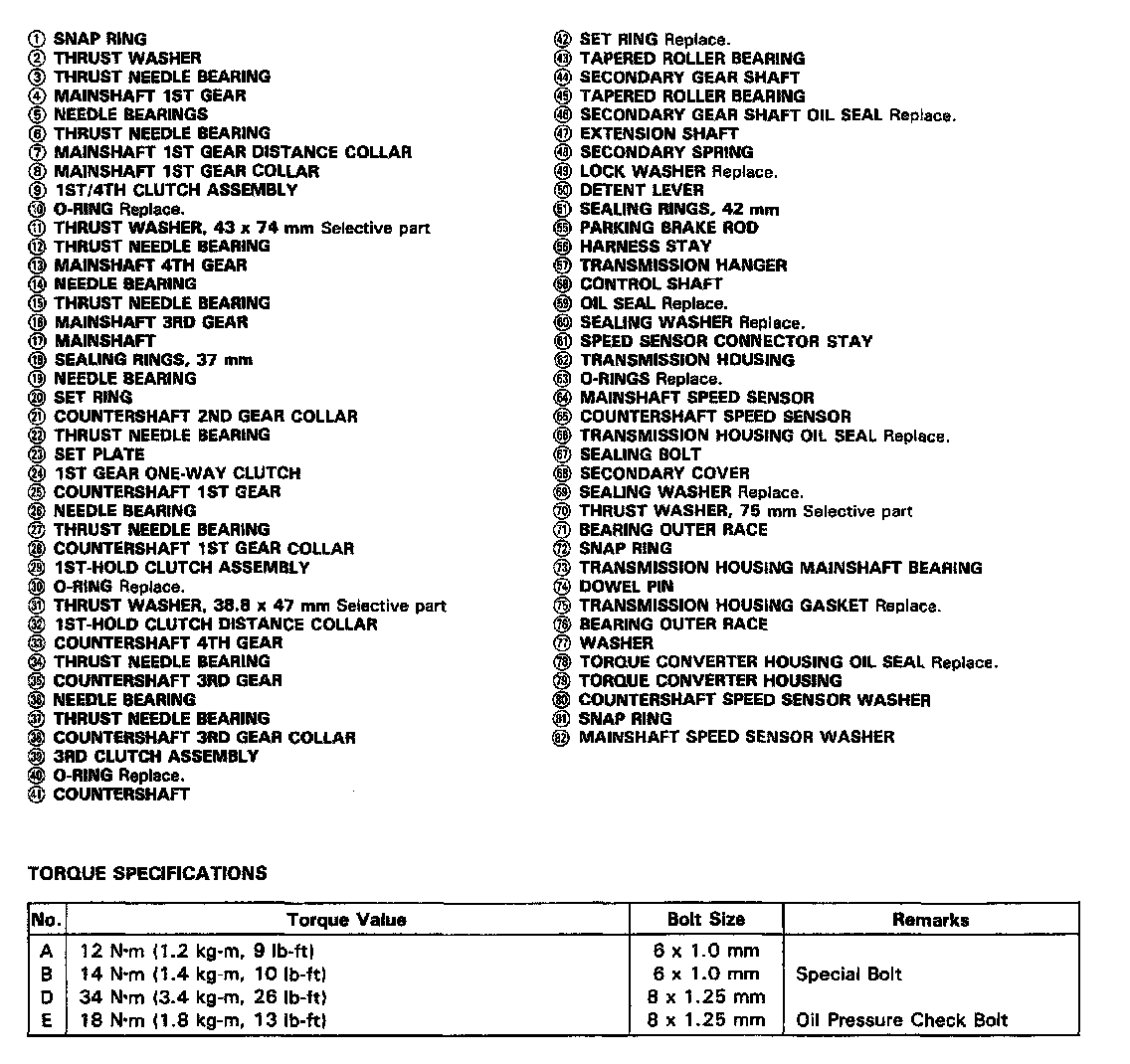

MPYA 4-spd A/T, Transmission Housing Legend (6 Of 8):

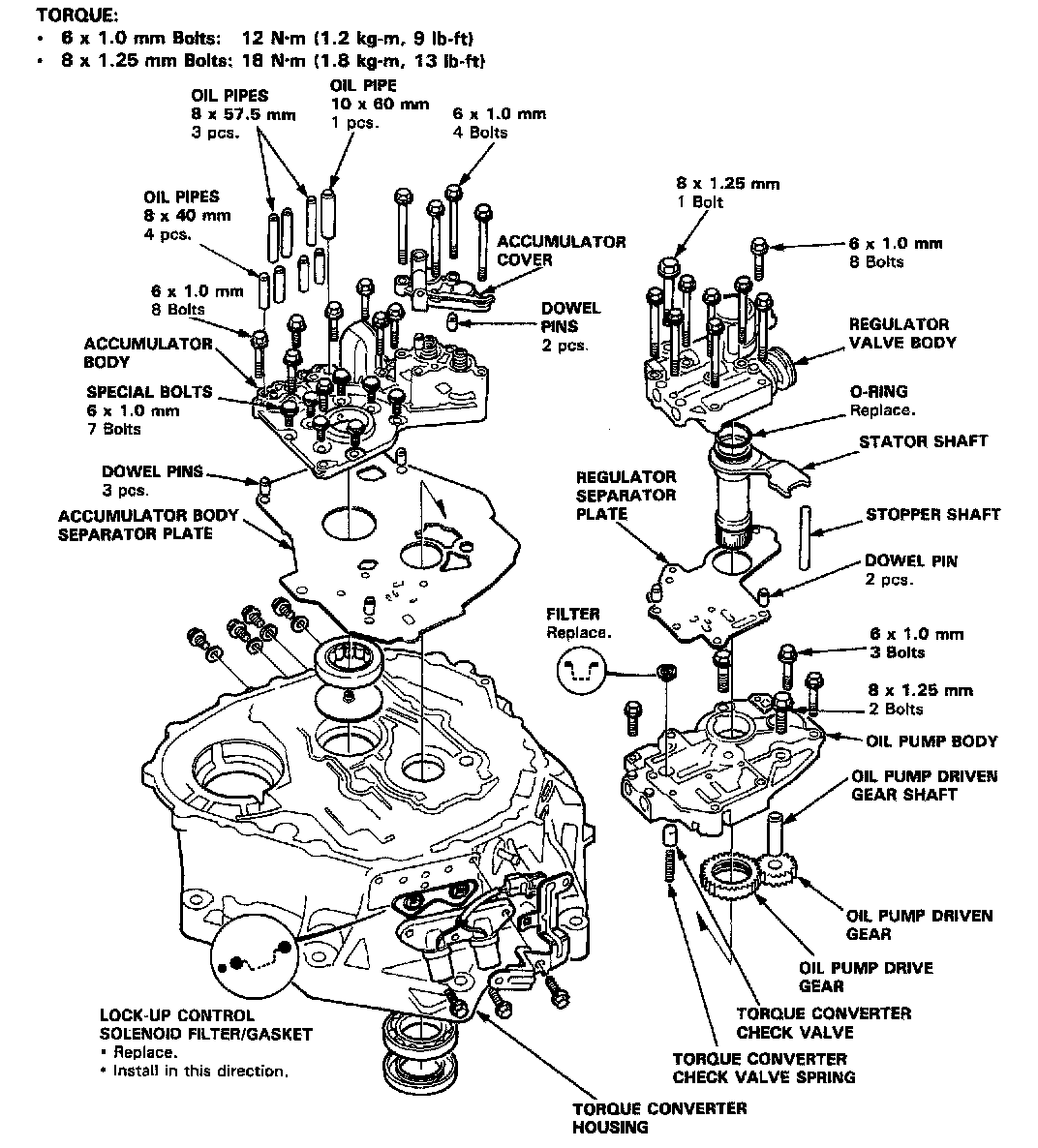

MPYA 4-spd A/T, Torque Converter Housing/Valve Body (7 Of 8):

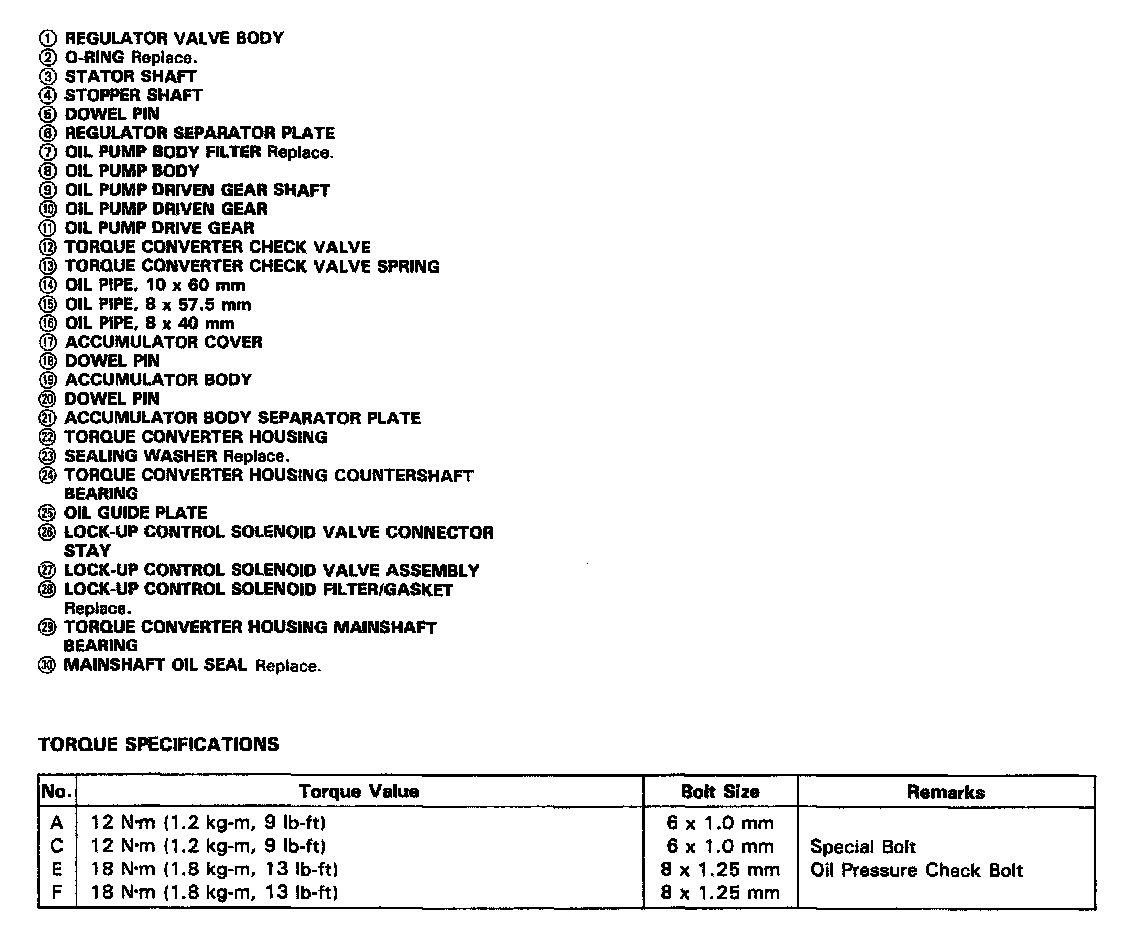

MPYA 4-spd M/T, Torque Converter Housing/Valve Body Legend (8 Of 8):

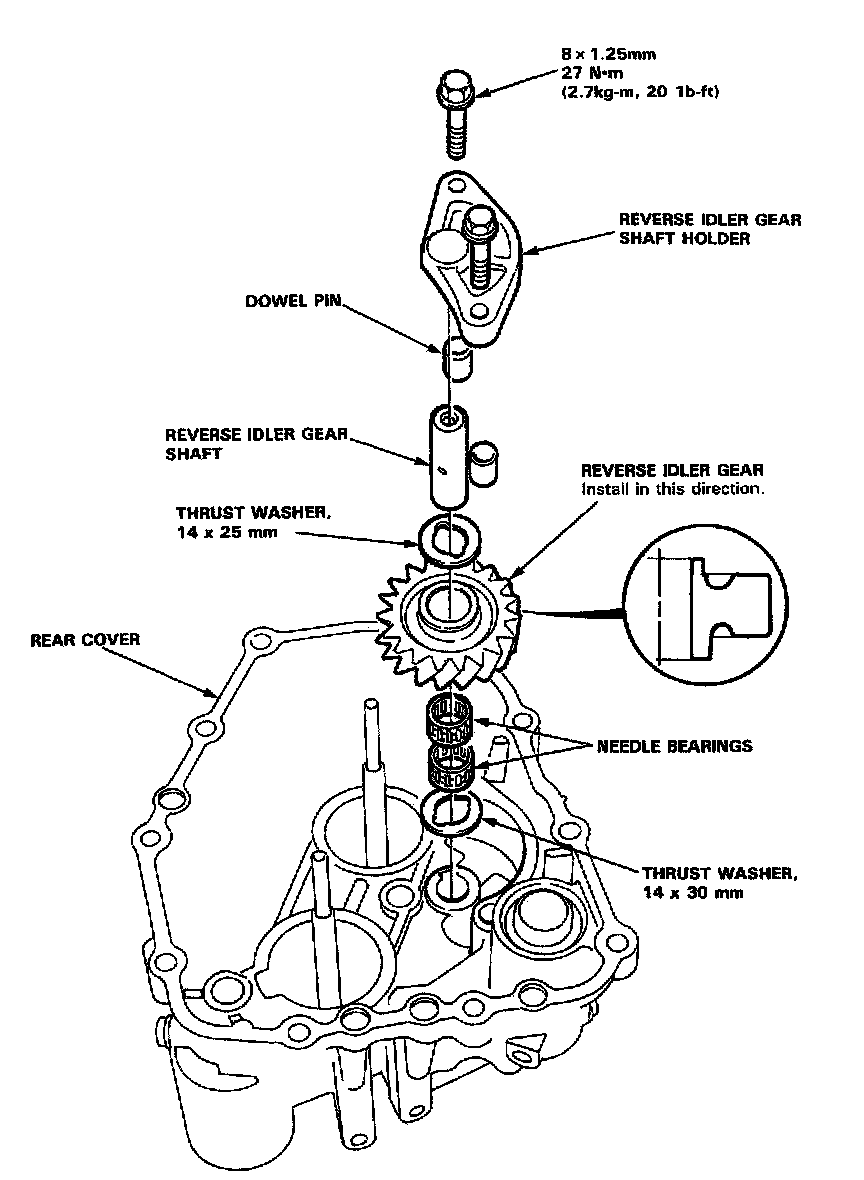

MPYA 4-spd A/T, Reverse Idler Gear:

MPYA 4-spd A/T, Transmission Assembly:

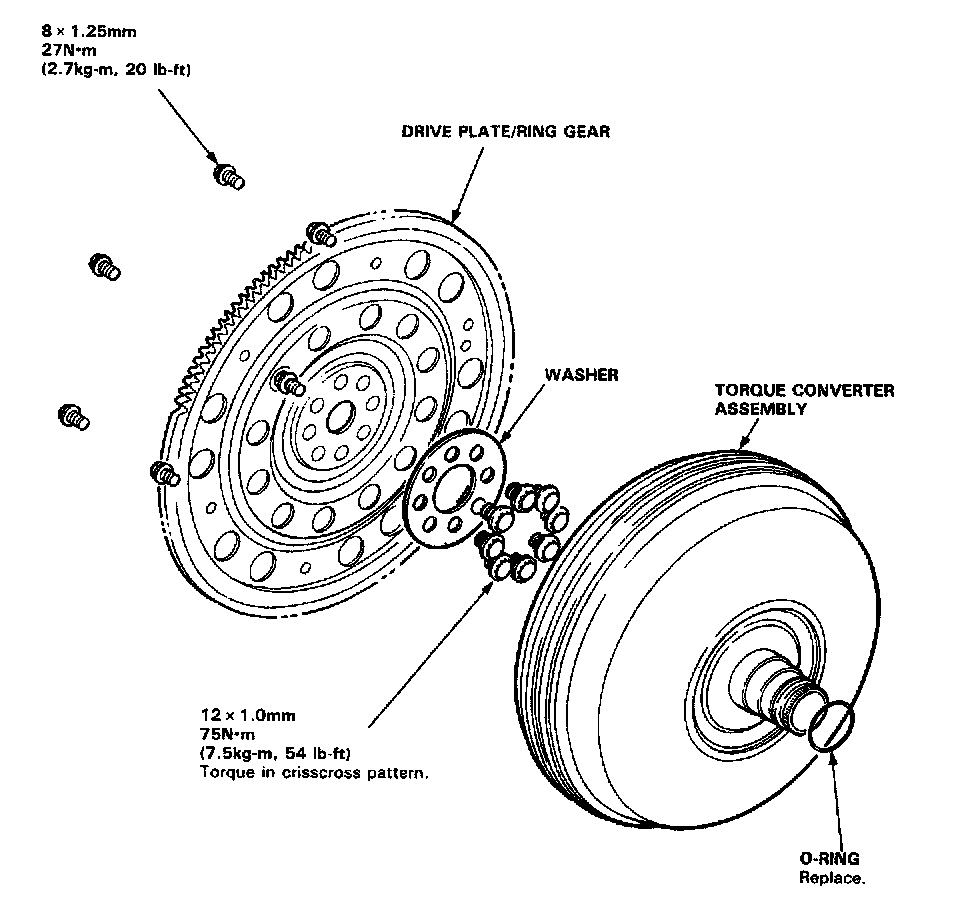

MPYA 4-spd A/T, Torque Converter:

MPYA 4-spd A/T, Transmission Housing Mounting:

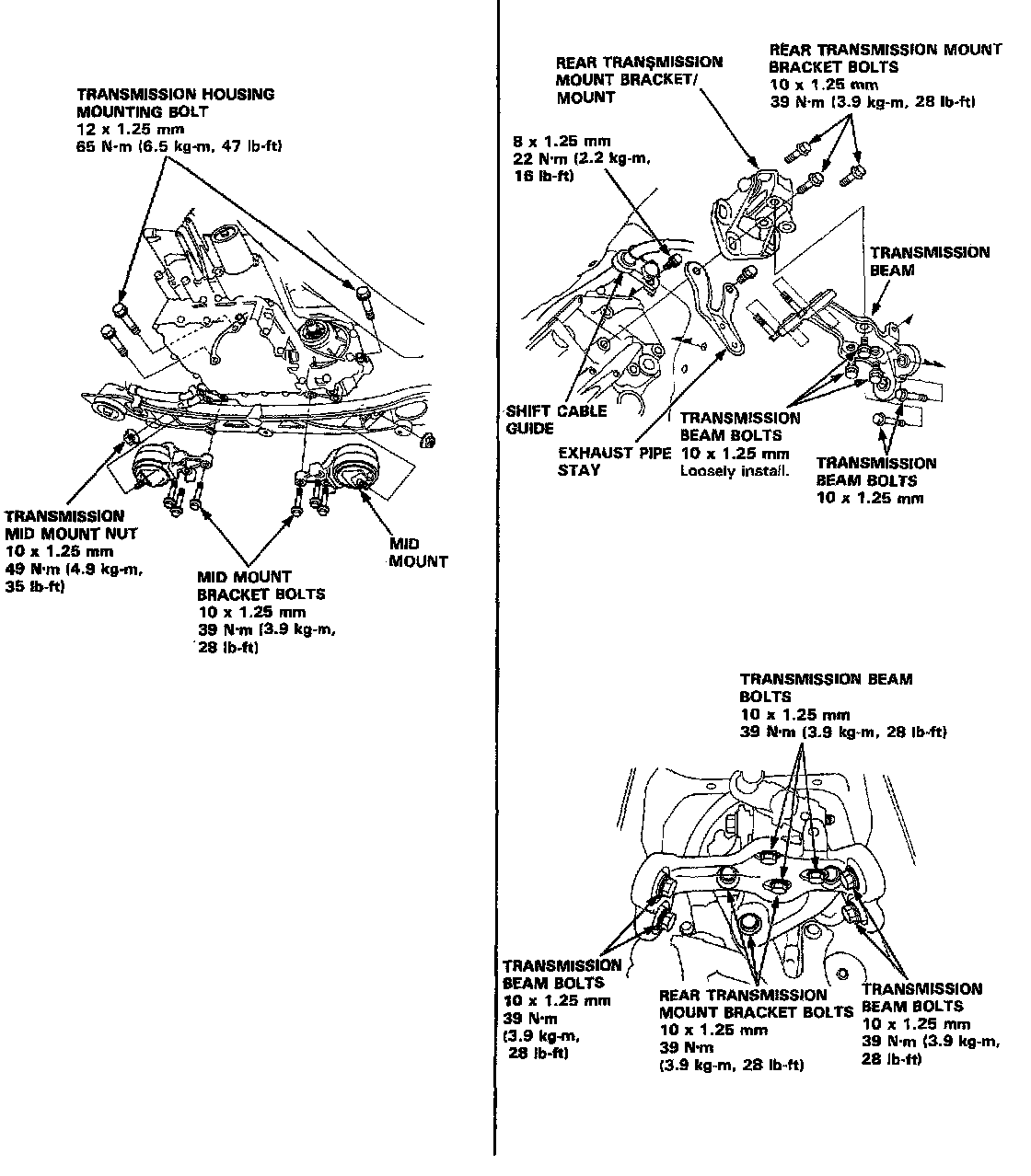

MPYA 4-spd A/T, Transmission Mounts:

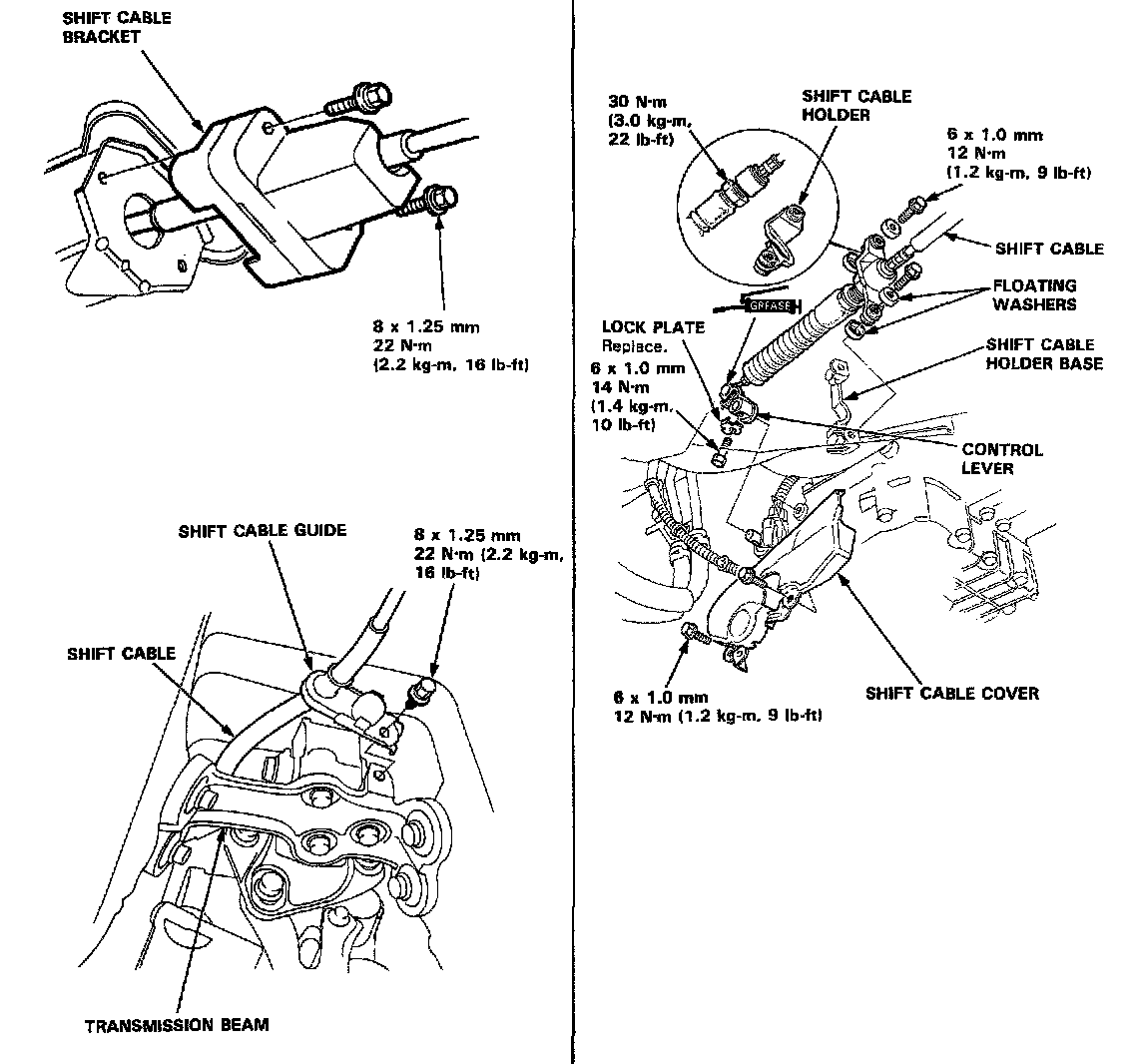

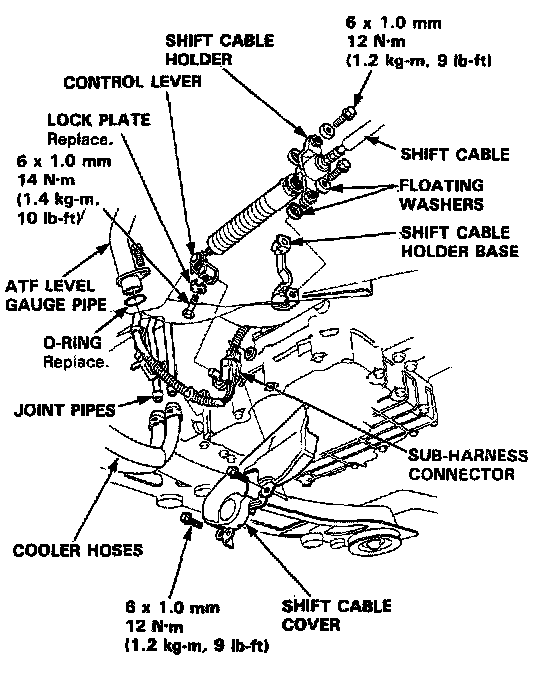

MPYA 4-spd A/T, Shift Cable:

MPYA 4-spd A/T, Transmission Upper Mounting/Harness:

MPYA 4-spd A/T, Shift Cable Locknut:

MPYA 4-spd A/T, Shift Cable Assembly:

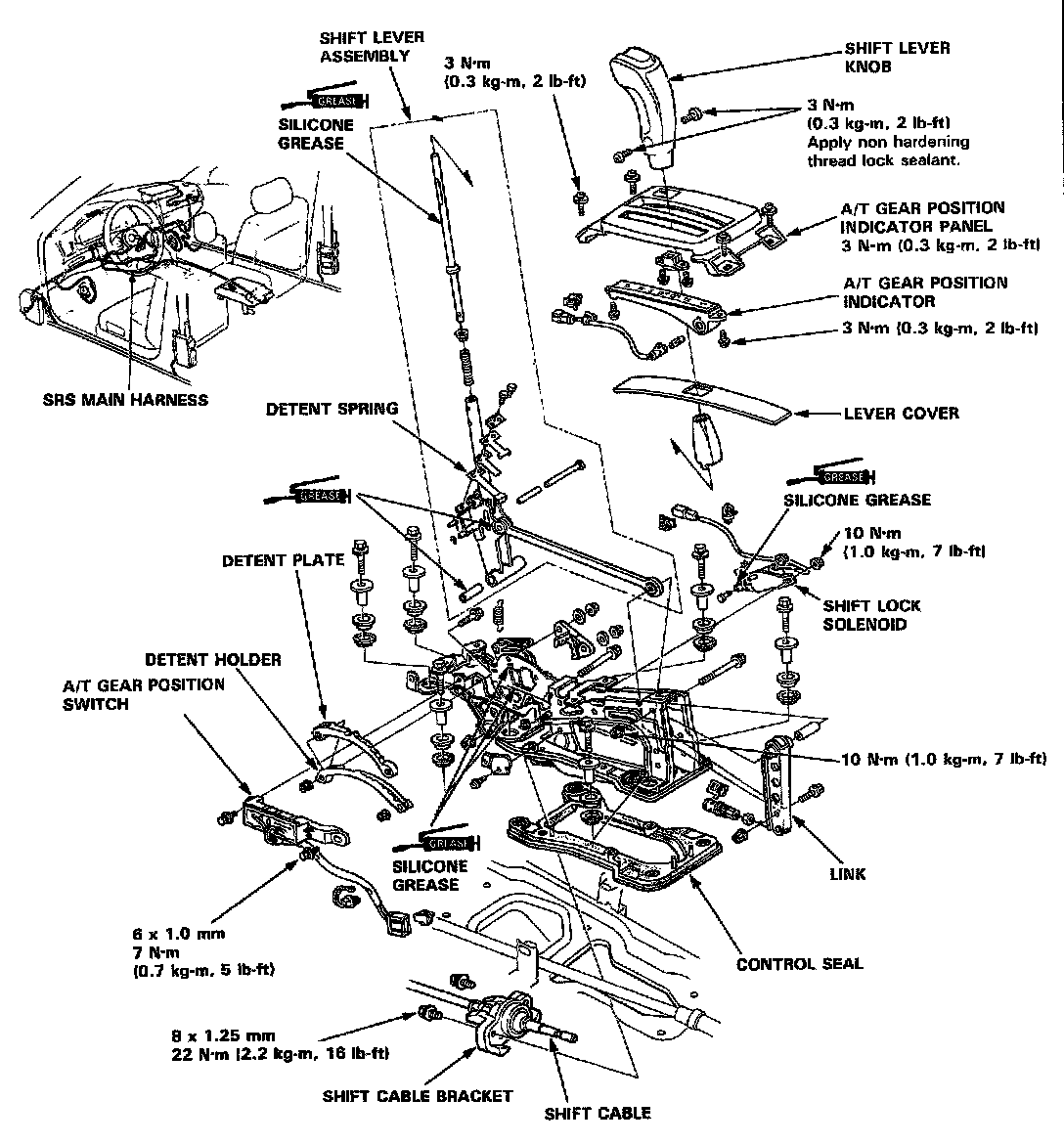

MPYA 4-spd A/T, Shift Lever Assembly:

MPYA 4-spd A/T, Shift Lever Assembly, Detent Spring:
