Engine Assembly

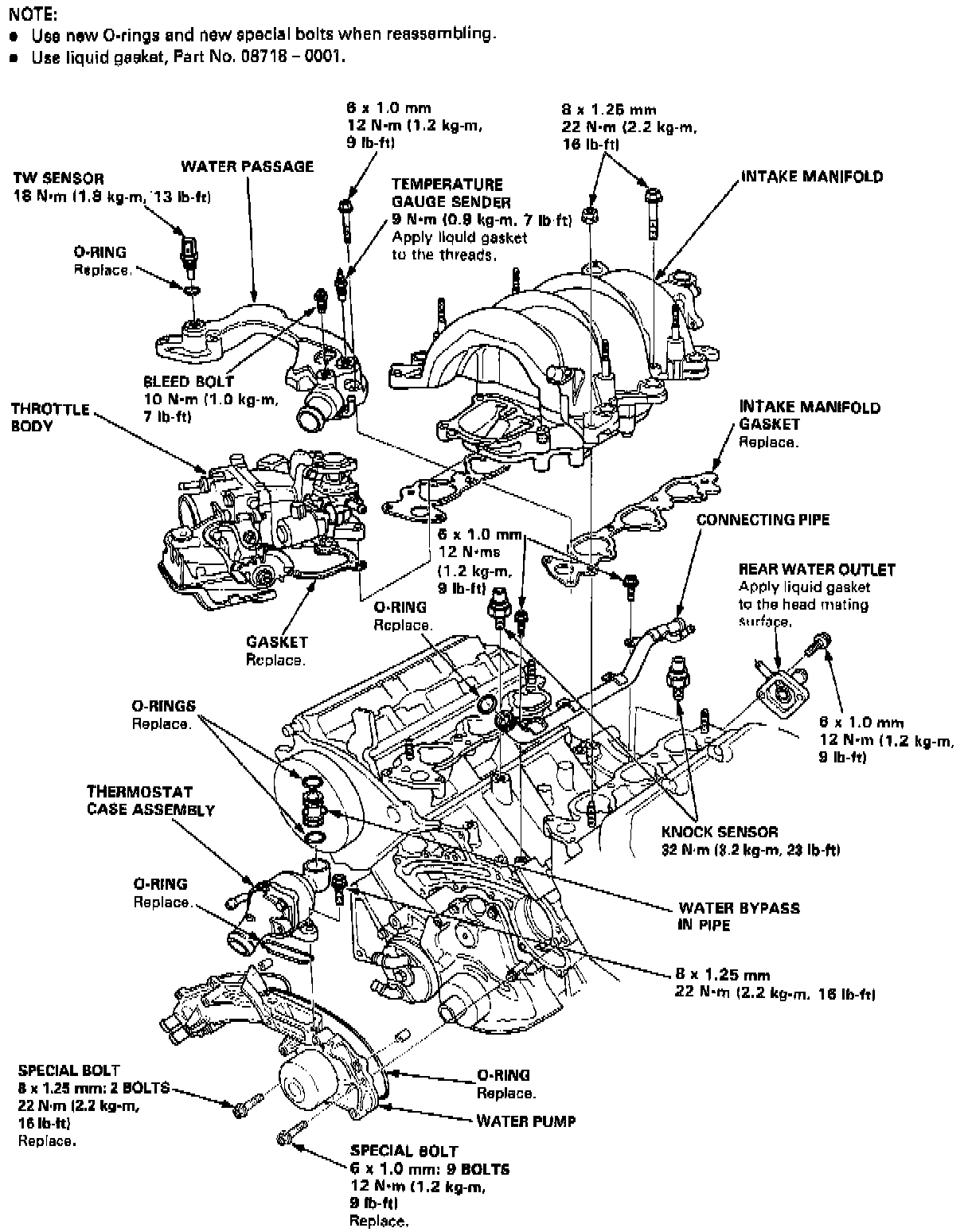

Intake:
Exhaust Manifold:
Upper Engine:
Water Pump:
Tighten cylinder head bolts sequentially in two or three steps to
78 N.m (7.8 kg-m, 56 lb.ft)Timing Components:
Lower Engine:
Main Torque Sequence:
Engine Lubrication (GS MODEL ONLY):
Engine Lubrication (EXCEPT GS MODEL):
Flywheel (M/T) Torque:
Drive Plate (A/T) Torque:
