M/T Technical Data

K4A6 5-spd M/T, Clutch Measurements:

K4A6 5-spd M/T, Main/Countershaft Measurements:

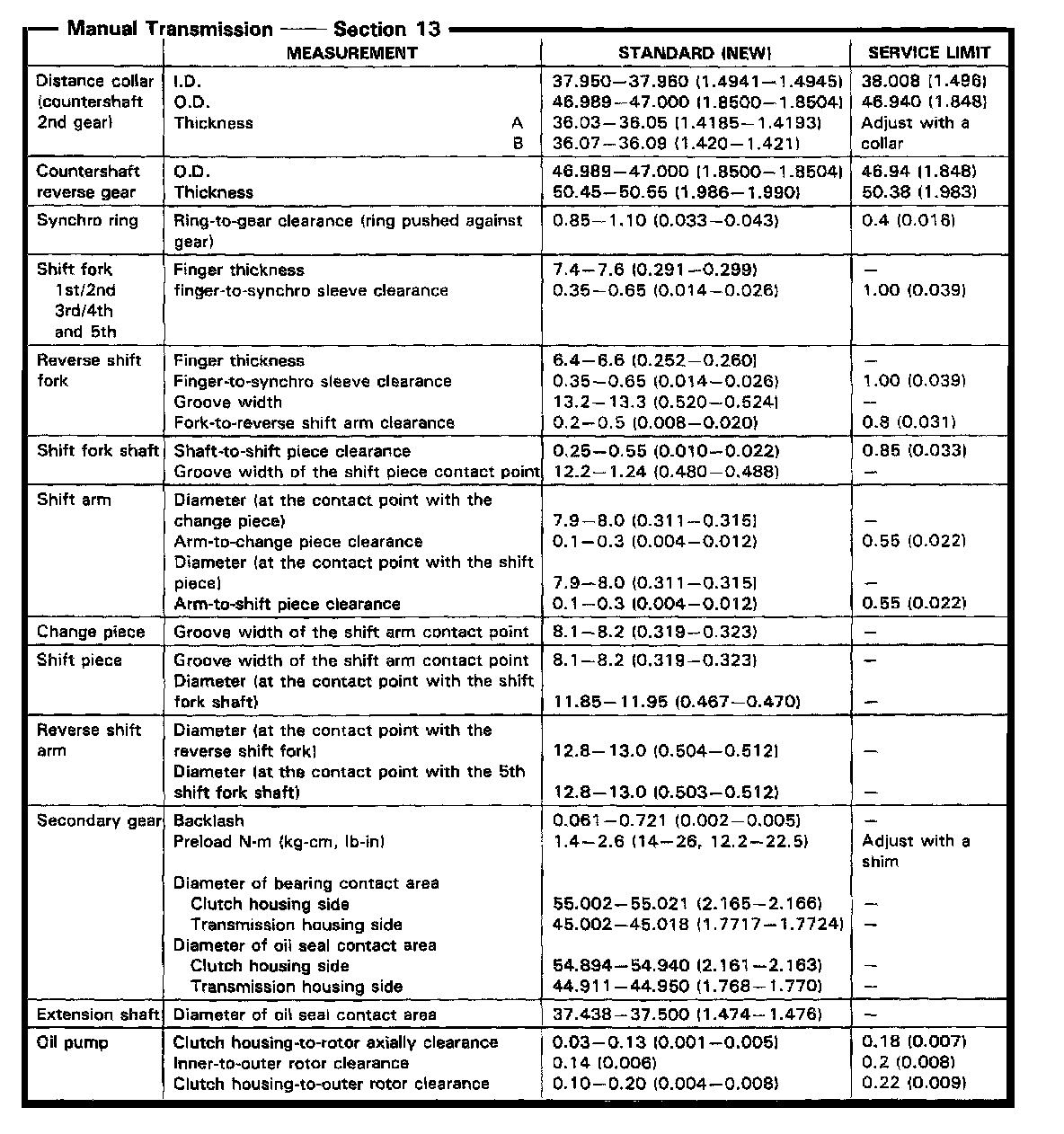

K4A6 5-spd M/T, Countershaft Gear, Reverse Gear Clearances:

M/T Technical Data

K4A6 5-spd M/T, Clutch Measurements:

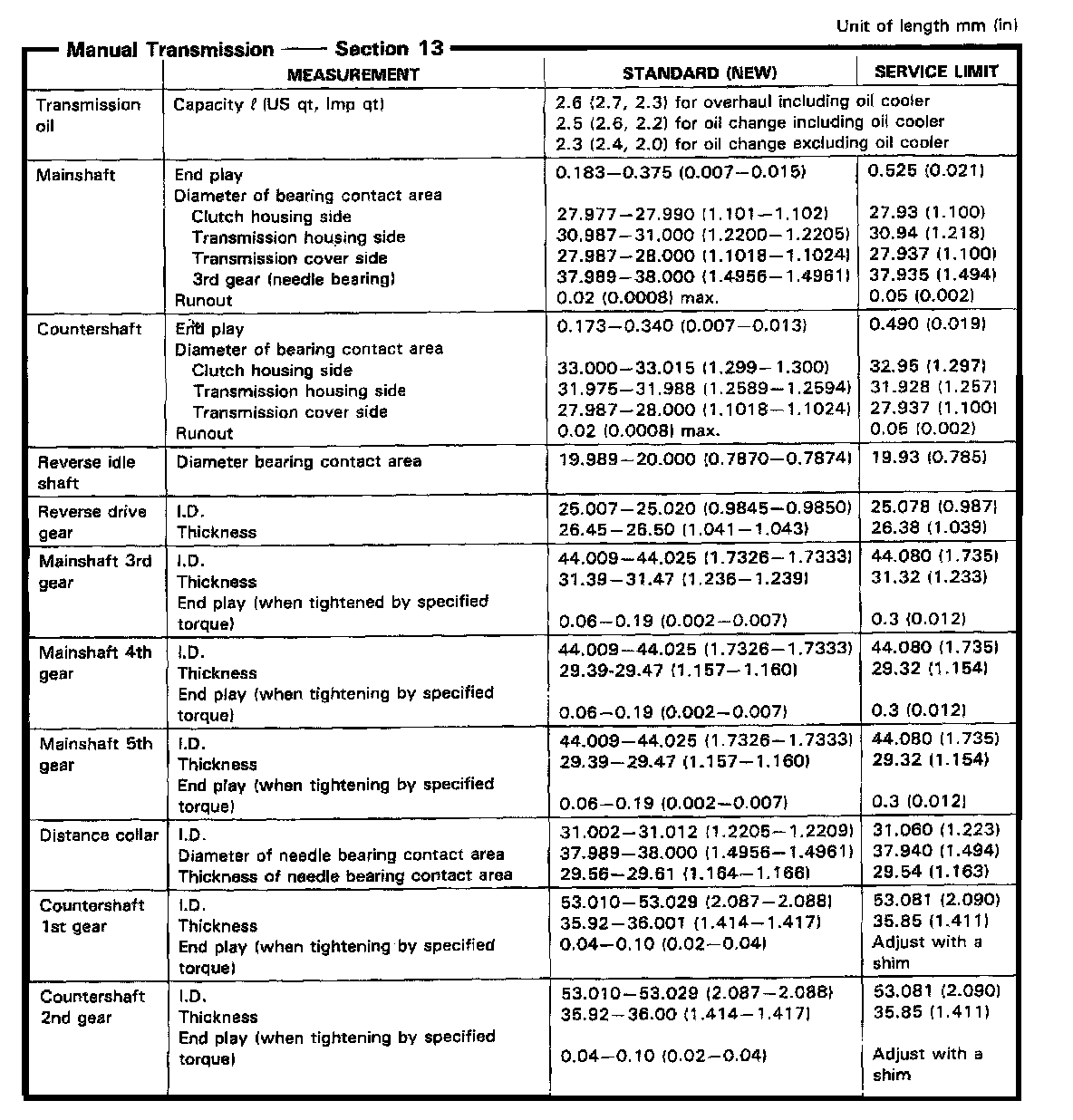

K4A6 5-spd M/T, Main/Countershaft Measurements:

K4A6 5-spd M/T, Countershaft Gear, Reverse Gear Clearances:

Manual/Automatic Transmission Gear Ratios:

K4A6 6-spd M/T, Clutch Measurements:

K4A6 6-spd M/T, Mainshaft / Countershaft Measurements:

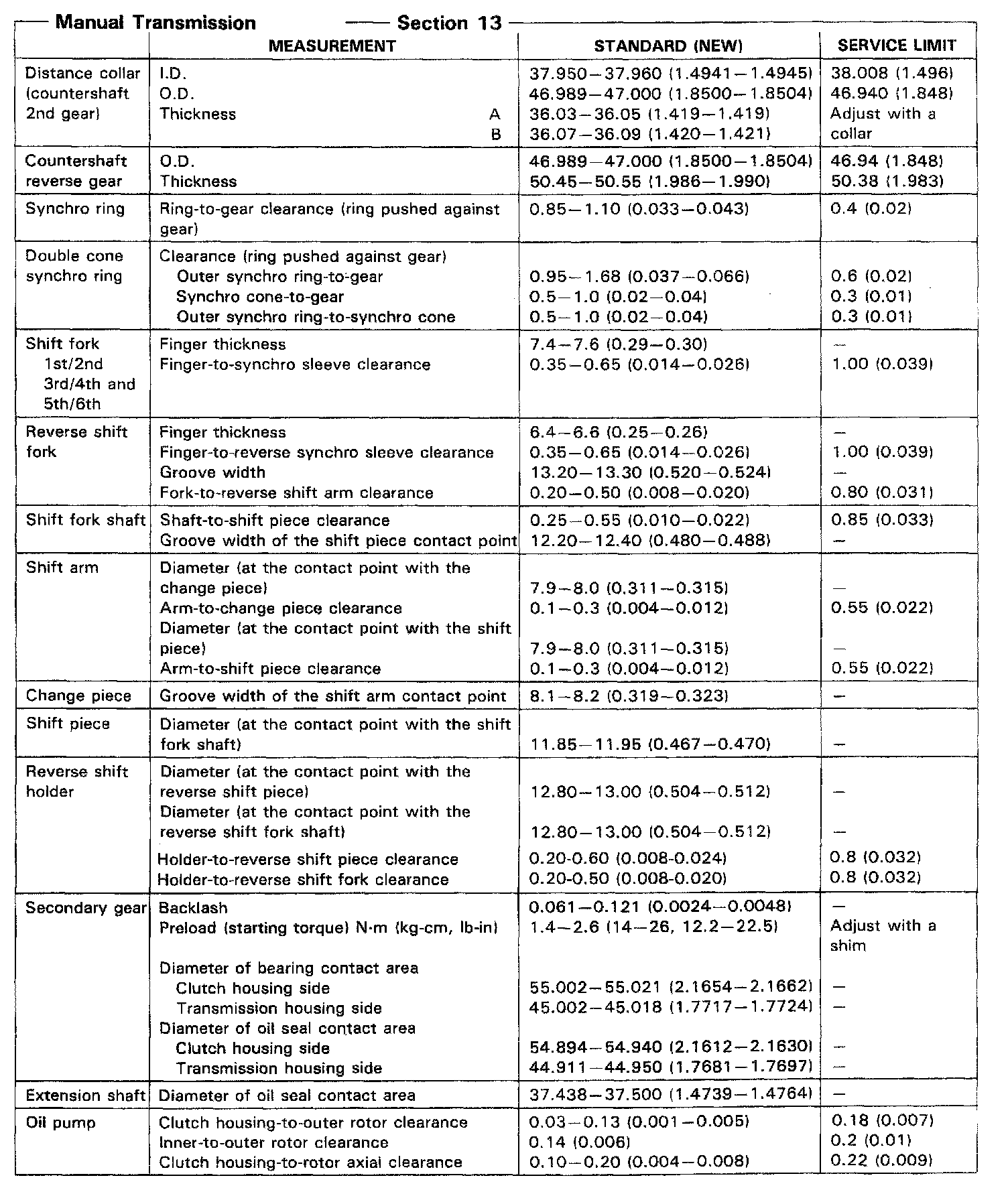

K4A6 6-spd M/T, Countershaft Gear, Reverse & Secondary Gear:

Manual/Automatic Transmission Gear Ratios:
