Mode Control Motor
Mode Control Motor Self-diagnosis indicator light G comes on: Indicates a problem in the mode control motor circuit. Use a digital multimeter (KS-AHM-32-003) to check it.
The mode control motor controls the outlet air direction and volume according to output from the control unit.

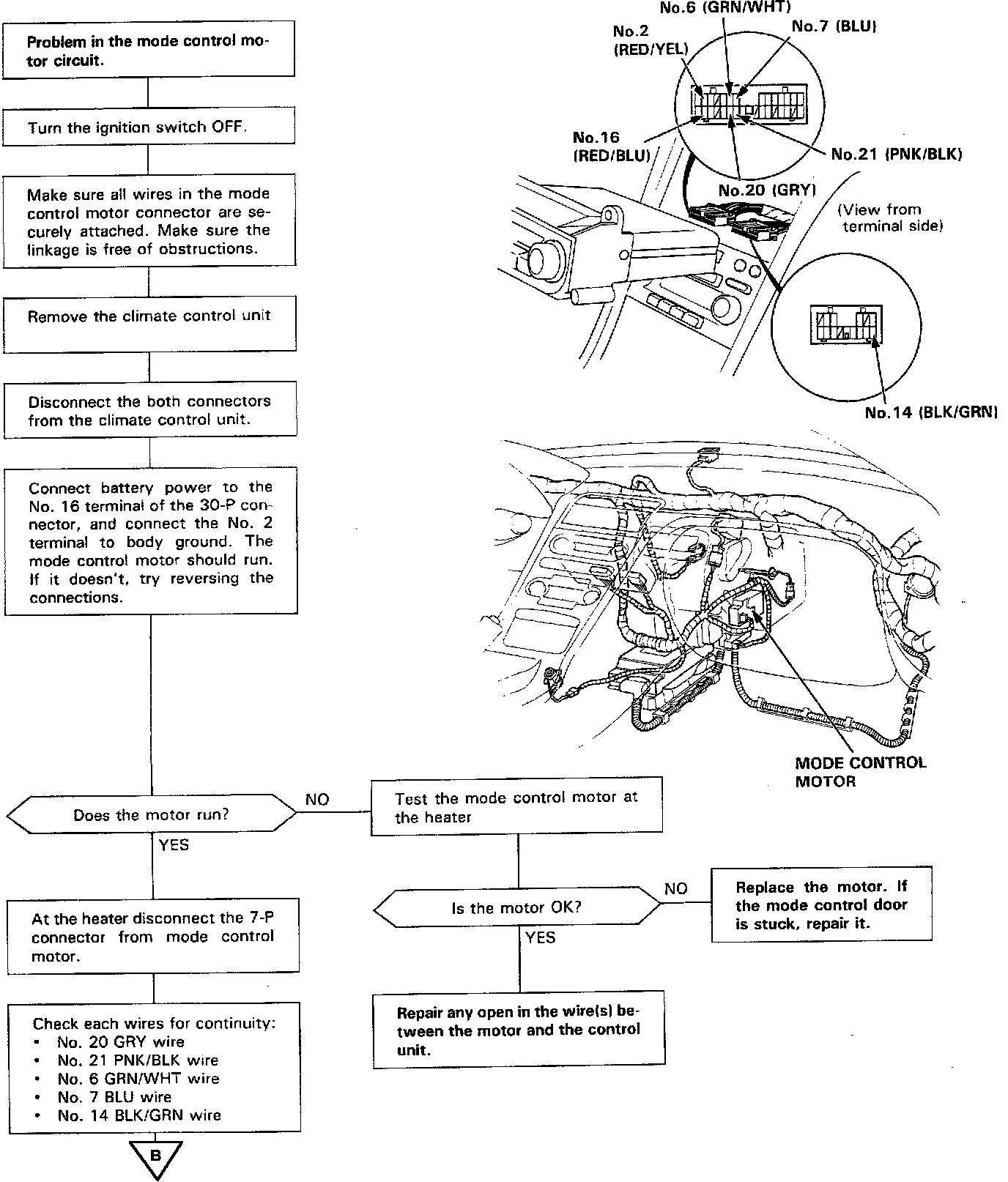

Part A:

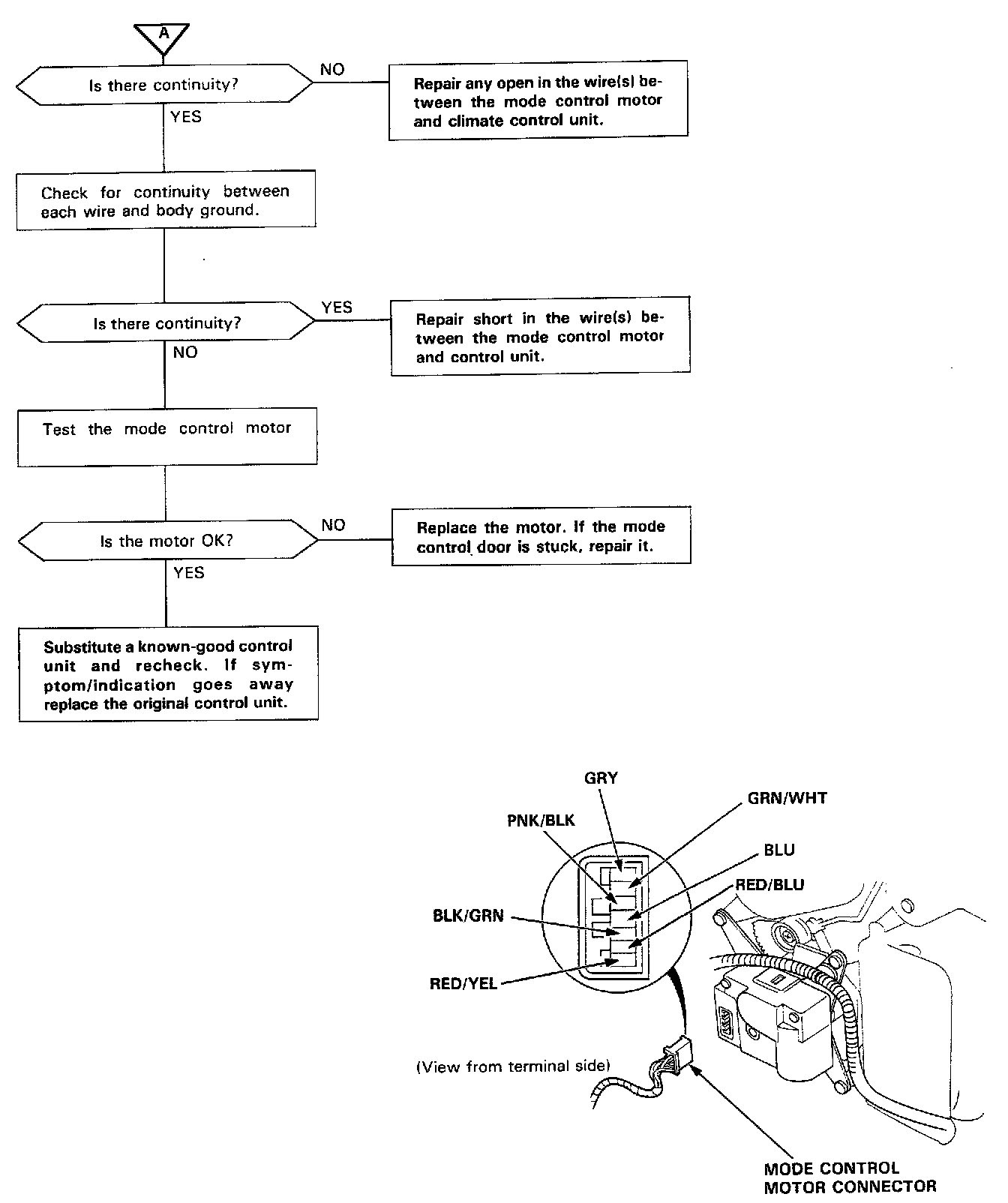

Part B:
