System Connectors - Engine Compartment

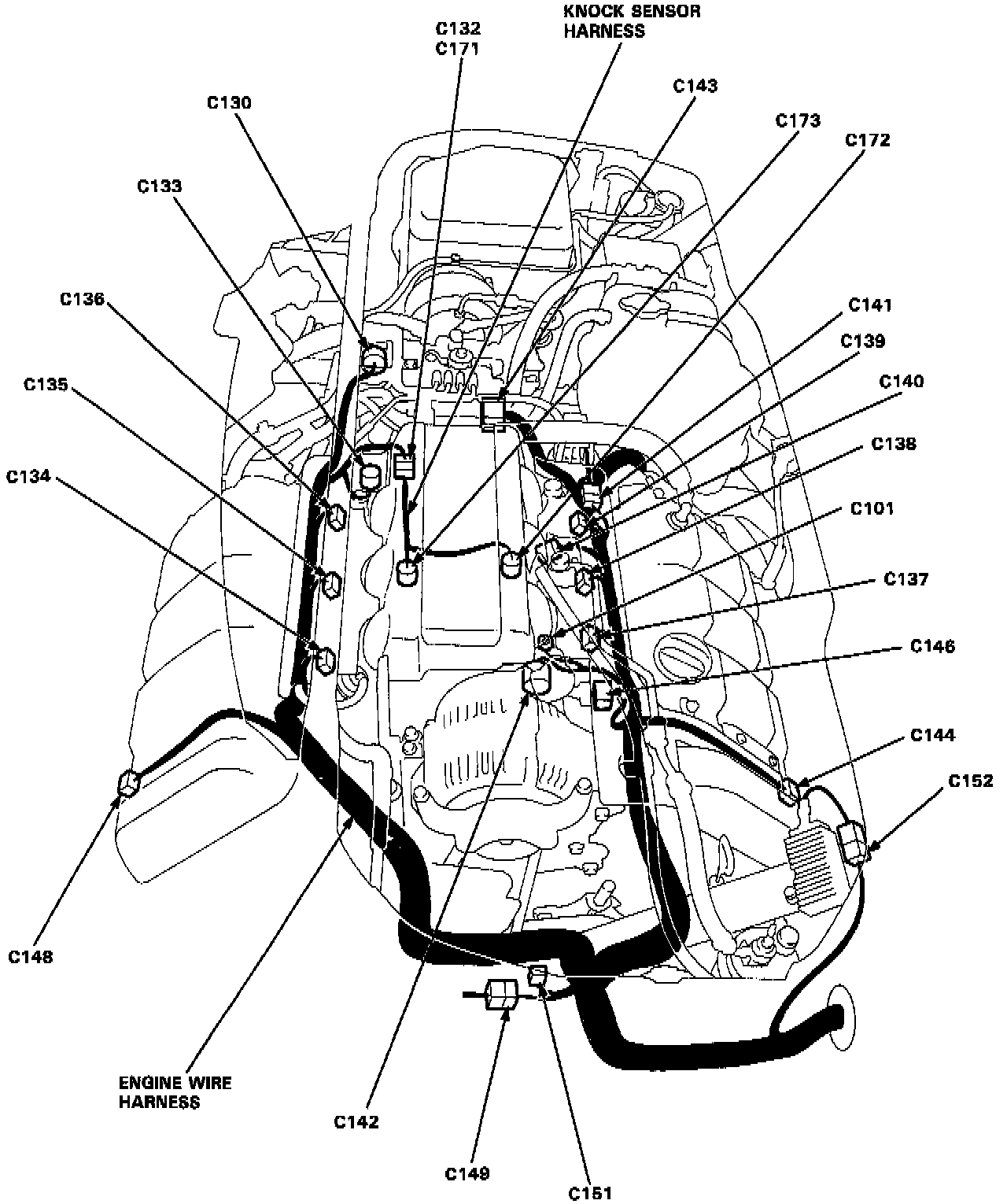

Engine compartment view, left.

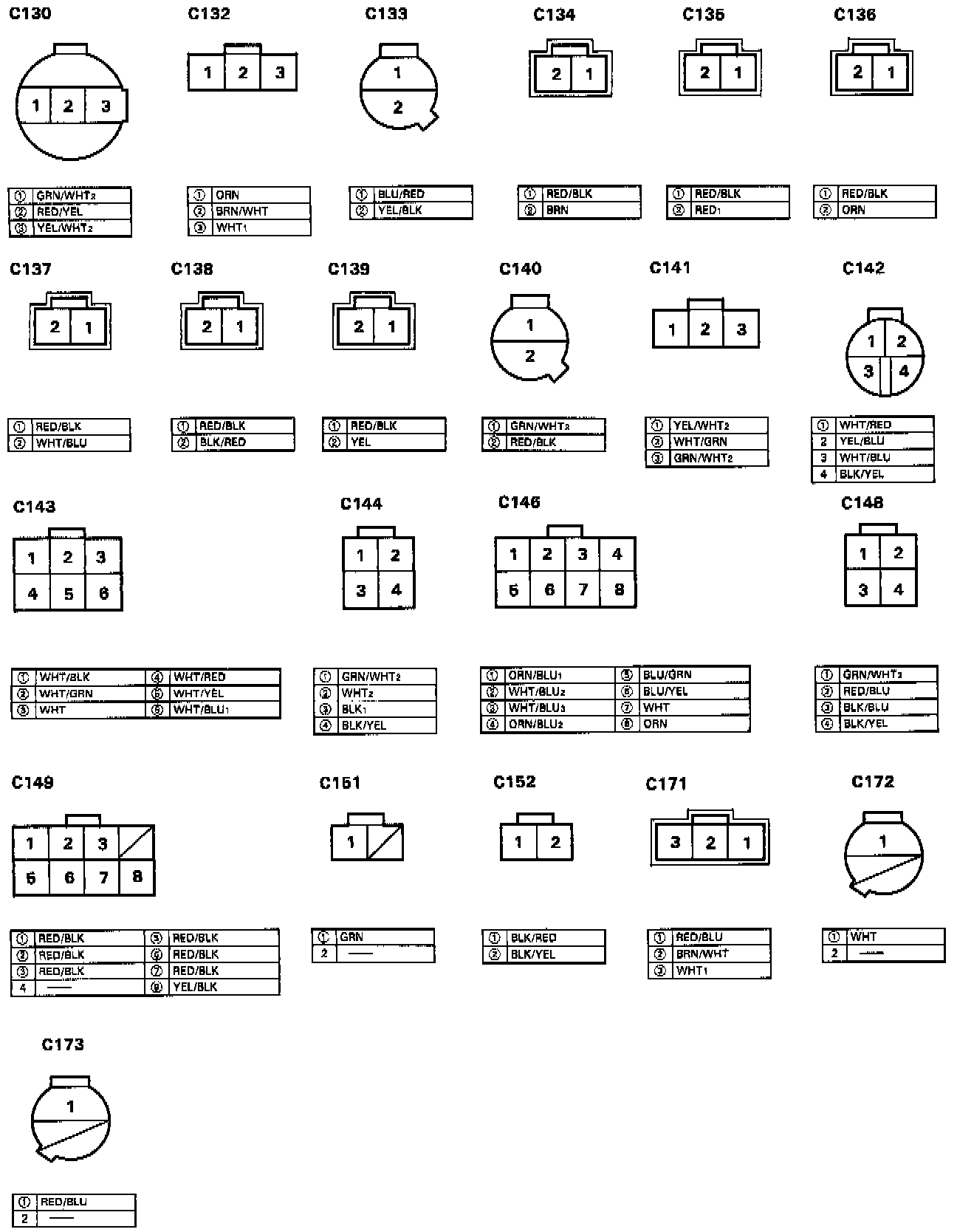

Connector views.

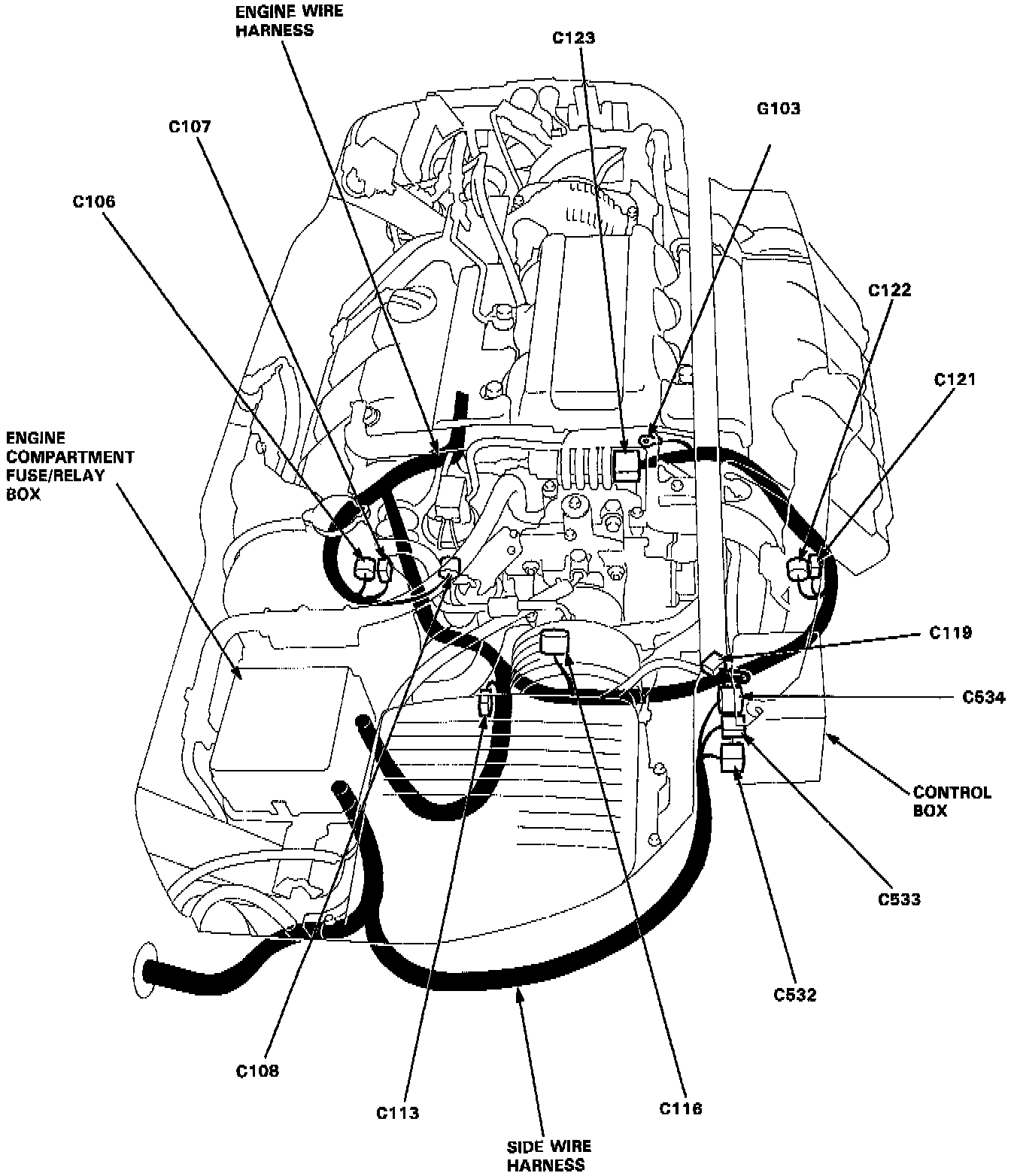

Engine compartment view, right.
Connector views.
NOTE: -
Several different wires have the same color. They have been given a number suffix to distinguish them (for example YEL/BLK1 and YEL/BLK2 are not the same.
-
Circled terminal numbers are Related to the
PGM-FI System.
