Brake Switch (Cruise Control): Testing and Inspection
1.
Disconnect 4 pin connector from
brake light switch.

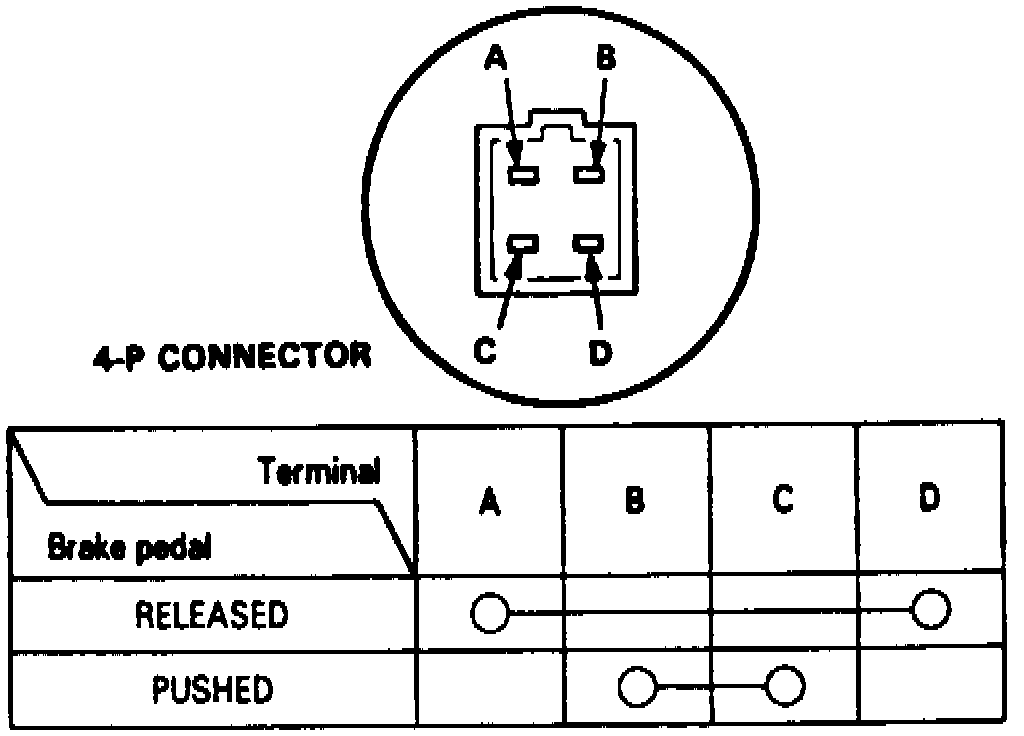

Fig. 31 Brake Switch Continuity Chart:
2.
Check for continuity between terminals of 4 pin connector as shown,
Fig. 31. 3.
If results are not as indicated, replace switch or adjust pedal height.
