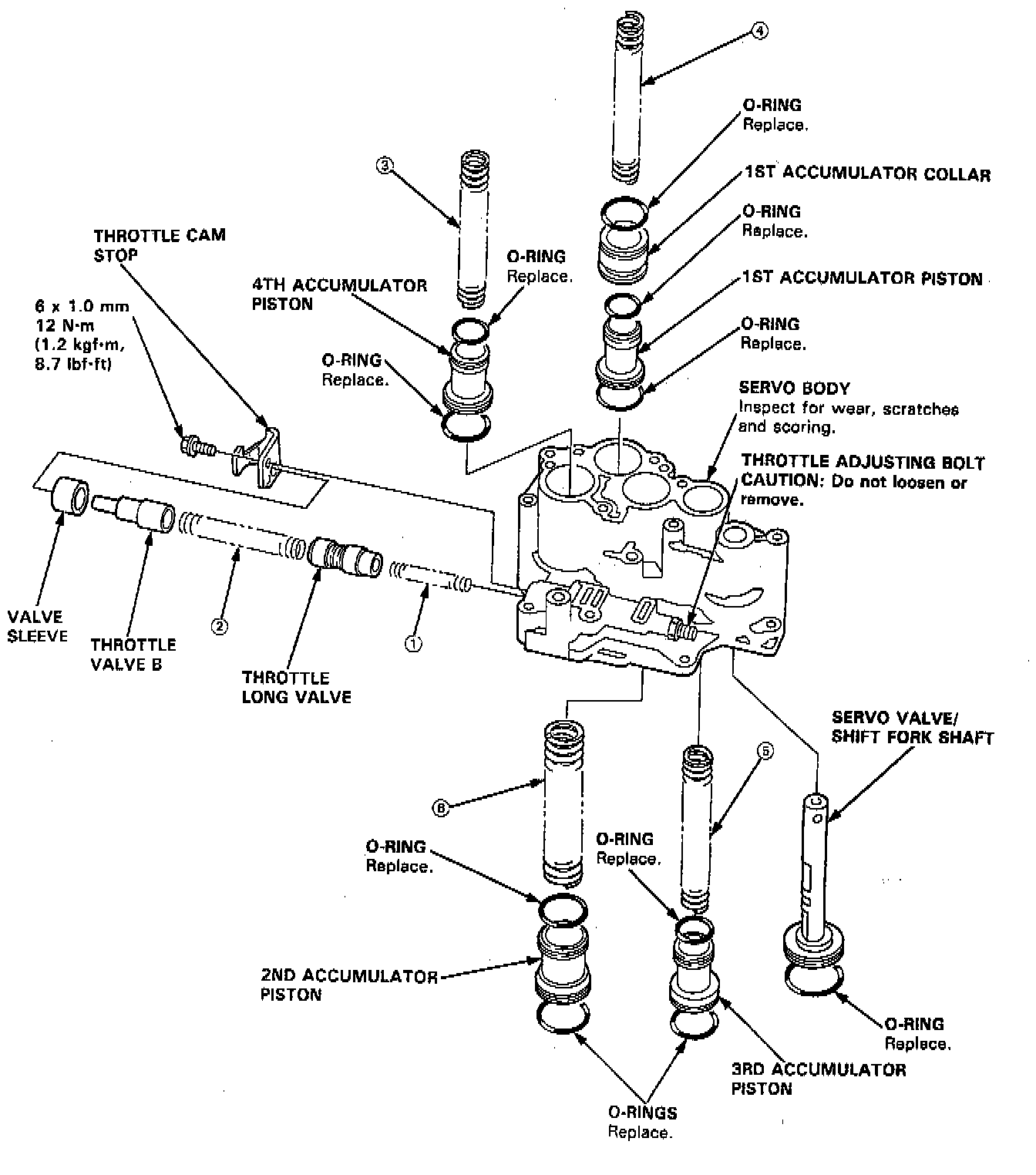

Valve Body, A/T
NOTE: -
Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air.
-
Blow out all passages.
-
Replace valve body as an assembly if any parts are worn or damaged.
-
Coat all parts with ATF before reassembly.
-
Replace the O-rings.
