Wheel Hub: Service and Repair

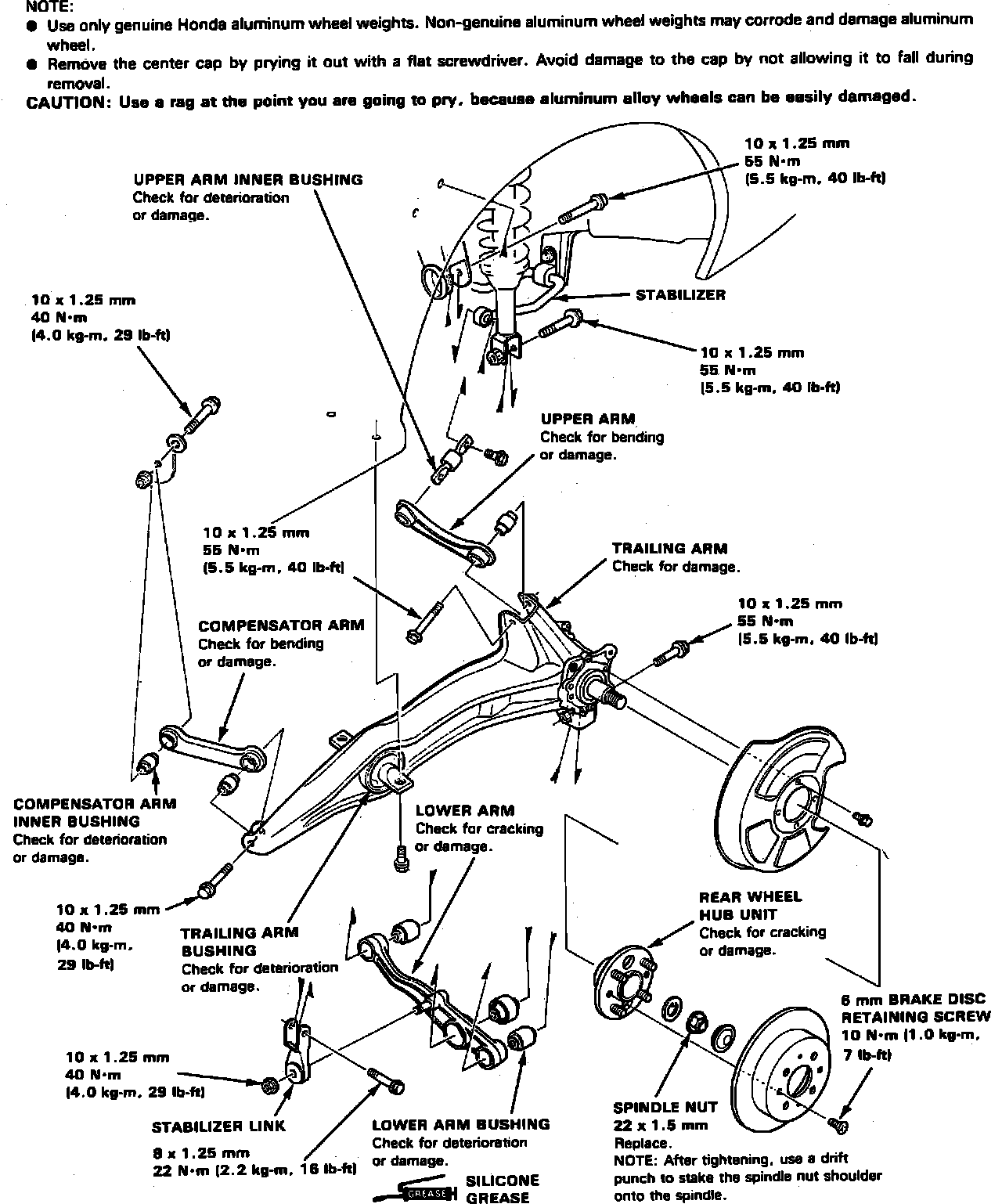

Fig. 7 Exploded View Of Rear Suspension Components:
1.
Raise and support rear of vehicle and remove wheel and tire assembly.
2.
Remove brake caliper and brake disc, then the hub cap, hub nut and hub assembly,
Fig. 7. 3.
Reverse procedure to install.
Torque hub nut to specifications, then stake hub nut against groove in spindle.
