Ignition Timing Connector: Locations

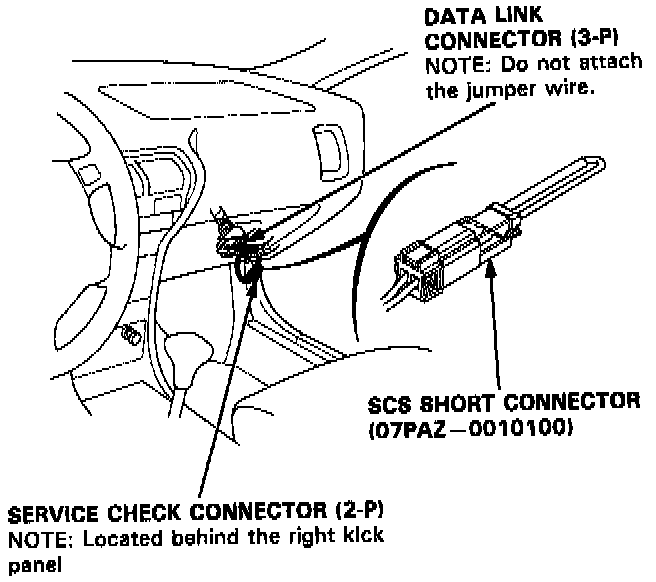

IGNITION TIMING CHECK CONNECTOR

Ignition Timing Check Connector is located behind the right front kick panel. It is a 2-wire connector.
