Pressure Plate
DIMENSIONS Diaphragm Spring Fingers Height:
Standard (New)
0.6 mm (0.02 inch)
Service Limit
0.8 mm (0.03 inch)
Warpage:
Standard (New)
0.03 mm (0.001 inch)
Service Limit
0.15 mm (0.006 inch)

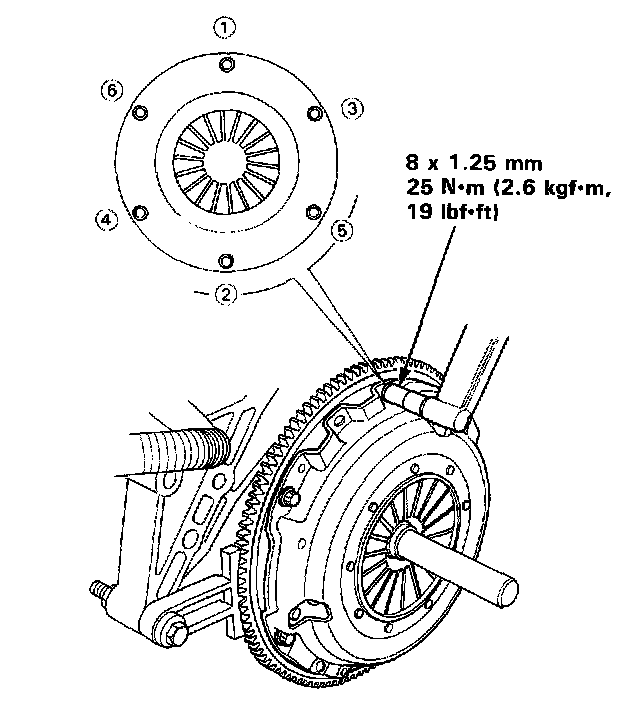

TIGHTENING SPECIFICATIONS 8 x 1.25 mm
25 Nm (19 ft. lbs.)
