Steering Column: Service and Repair

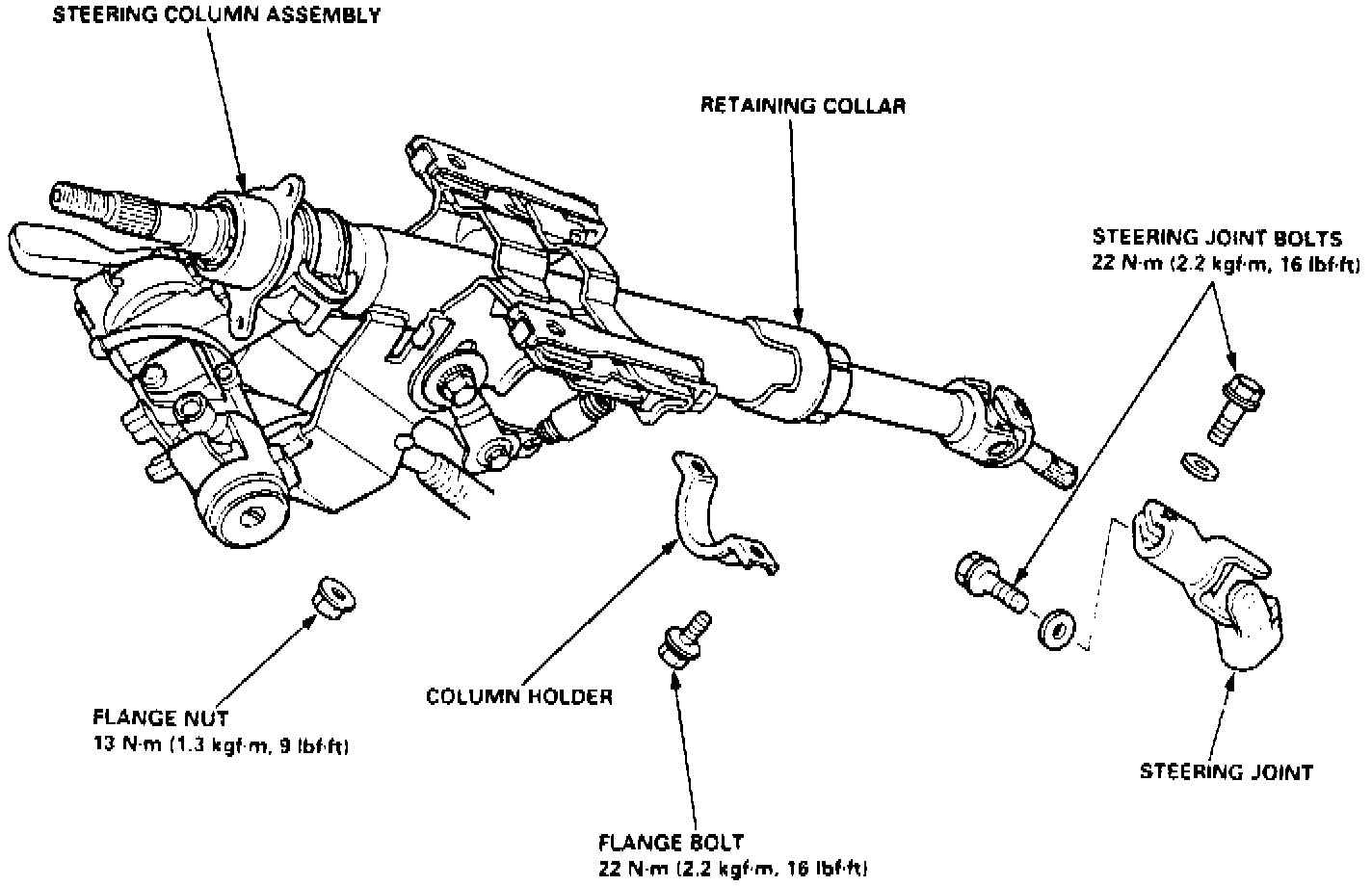

Fig. 2 Exploded View Of Steering Column:
1.
Disable airbag system as described under
Technician Safety Information. 2.
Refer to
Fig. 2 for
steering column service.
3.
Rearm airbag system as outlined under
Technician Safety Information after completing service.
