Engine: Specifications

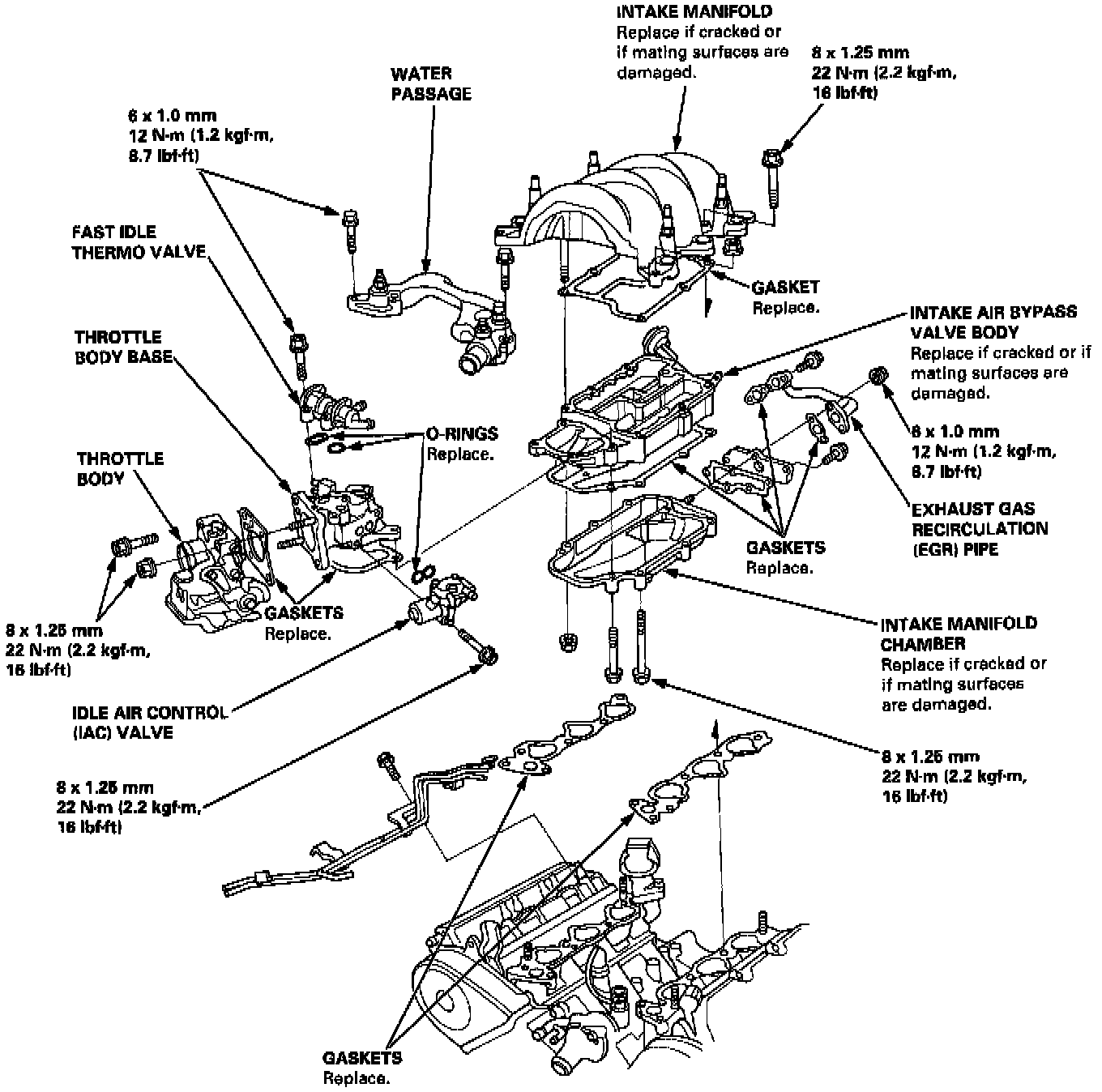

Intake:

Exhaust Manifold:

Upper Engine:

Specified Torque: 76 Nm (7.8 kgs.cm, 56 ft. lbs.)

NOTE:
Tighten the cylinder head bolts sequentially in two or three steps.
We recommend using a beam-type torque wrench. When using a preset-type torque wrench, be sure to tighten slowly and not to overtighten.
If a bolt makes any noise while you are torquing it, loosen the bolt and retighten it.



















Tighten the intake manifold mounting bolts and nuts in a crisscross pattern in two or three steps, beginning with the inner bolts.

Torque Sequence:

Oil Pan Torque Sequence:

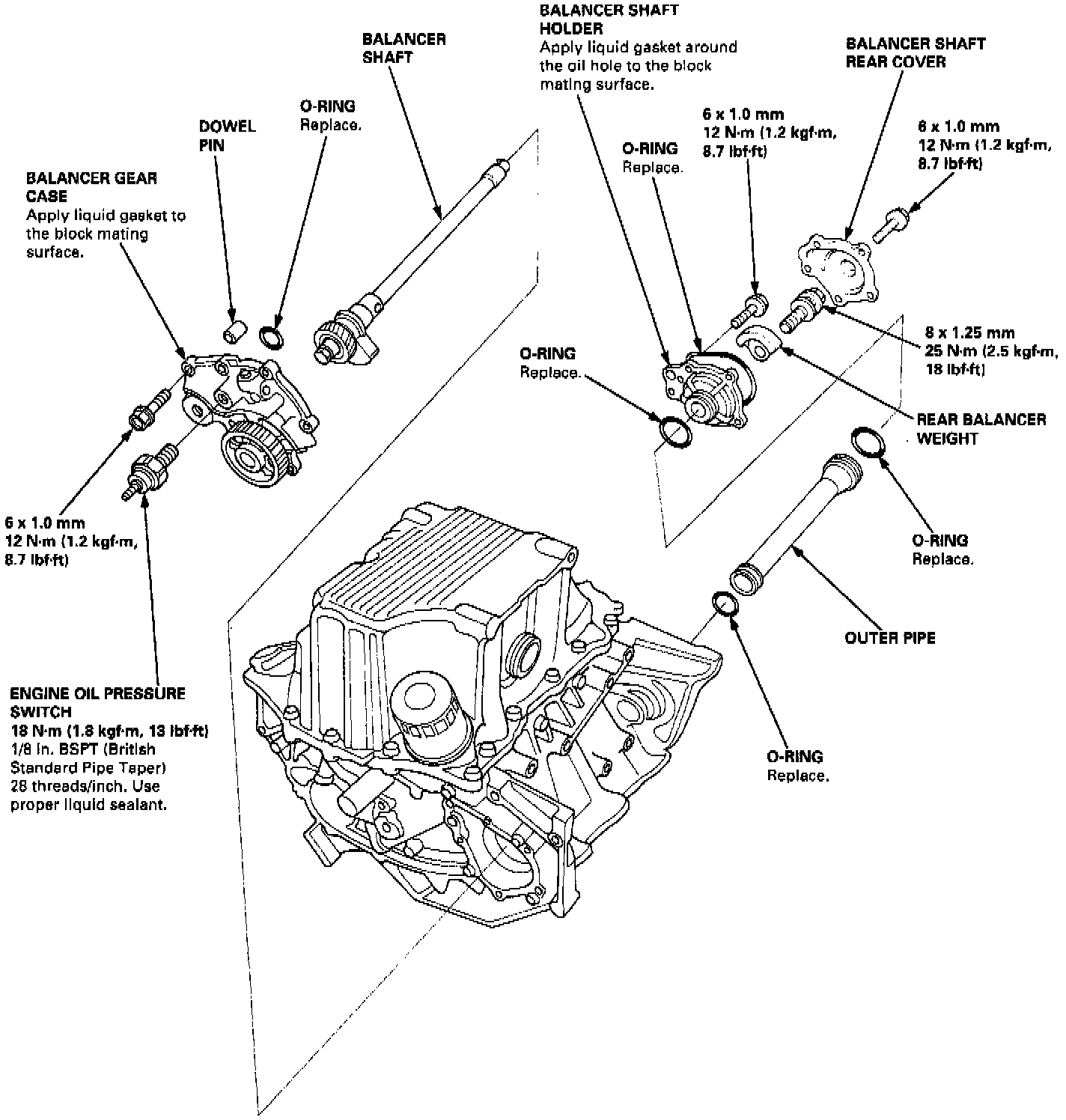

TIMING BELT AND BALANCER BELT

CYLINDER HEADS





Part 1 of 3





Part 2 of 3





Part 3 of 3

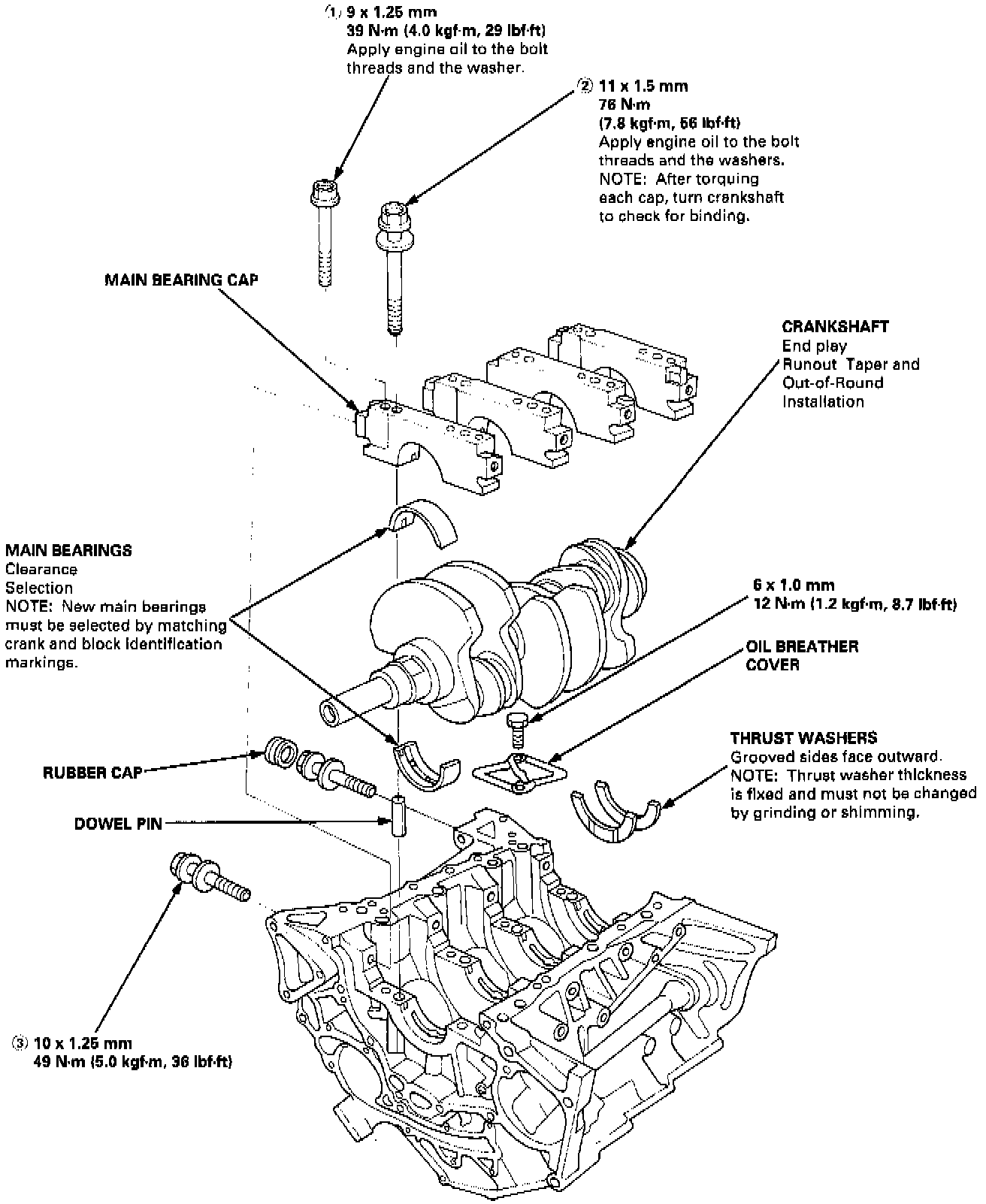

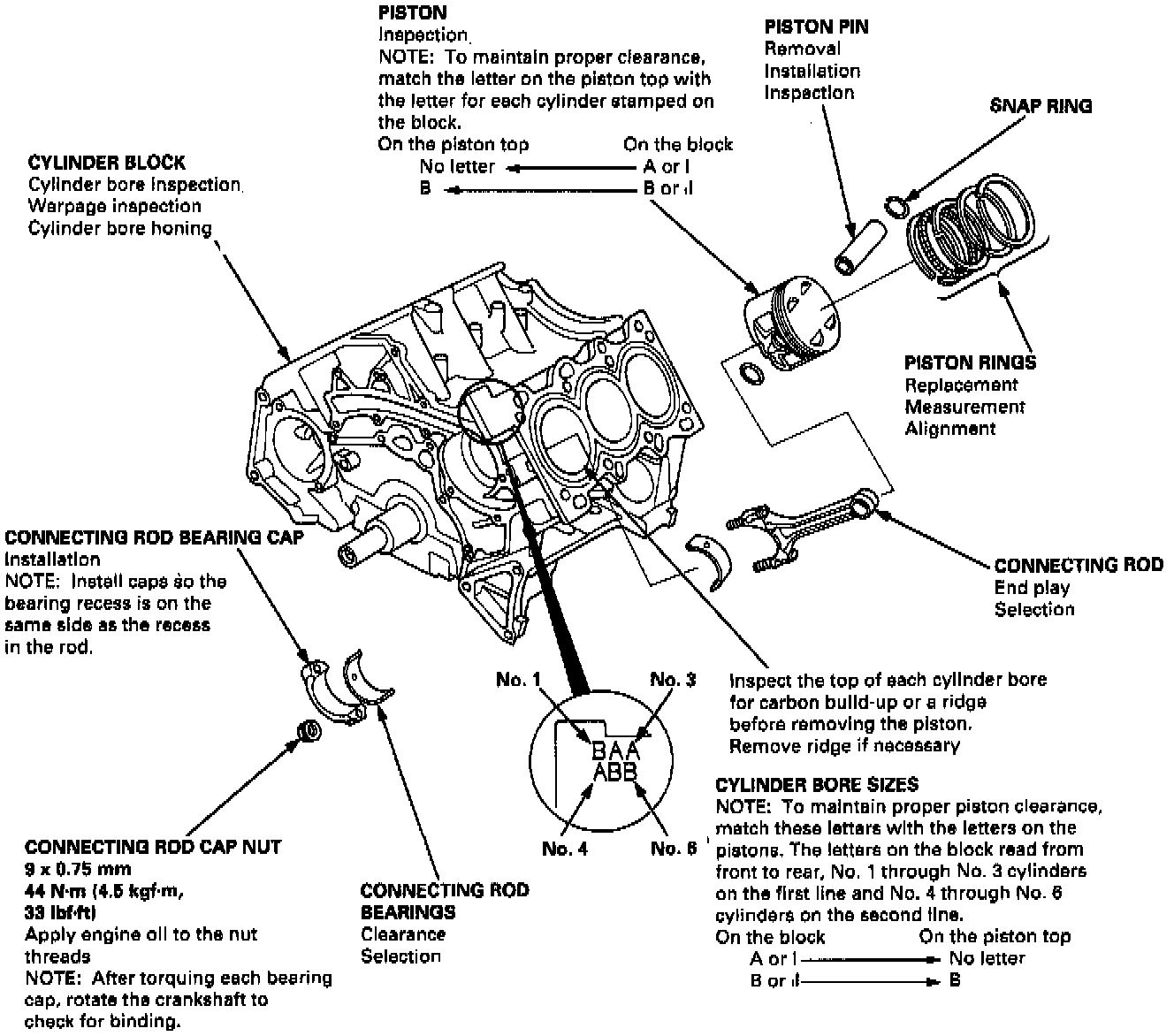

CYLINDER BLOCK





Part 1 of 4





Part 2 of 4





Part 3 of 4





Part 4 of 4

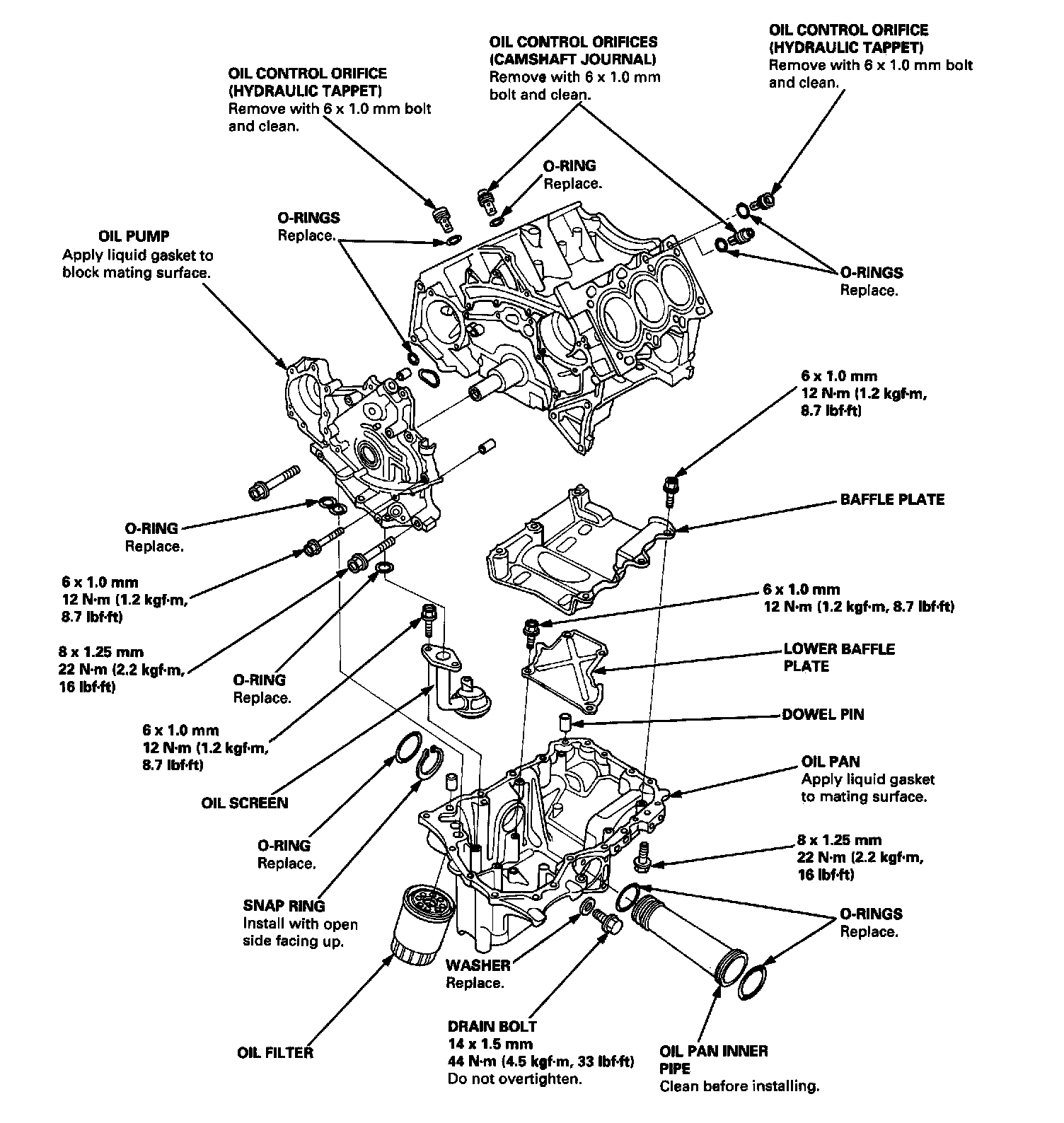

ENGINE LUBRICATION ILLUSTRATED INDEX





OIL PUMP
