Rear Door Window Regulator: Service and Repair

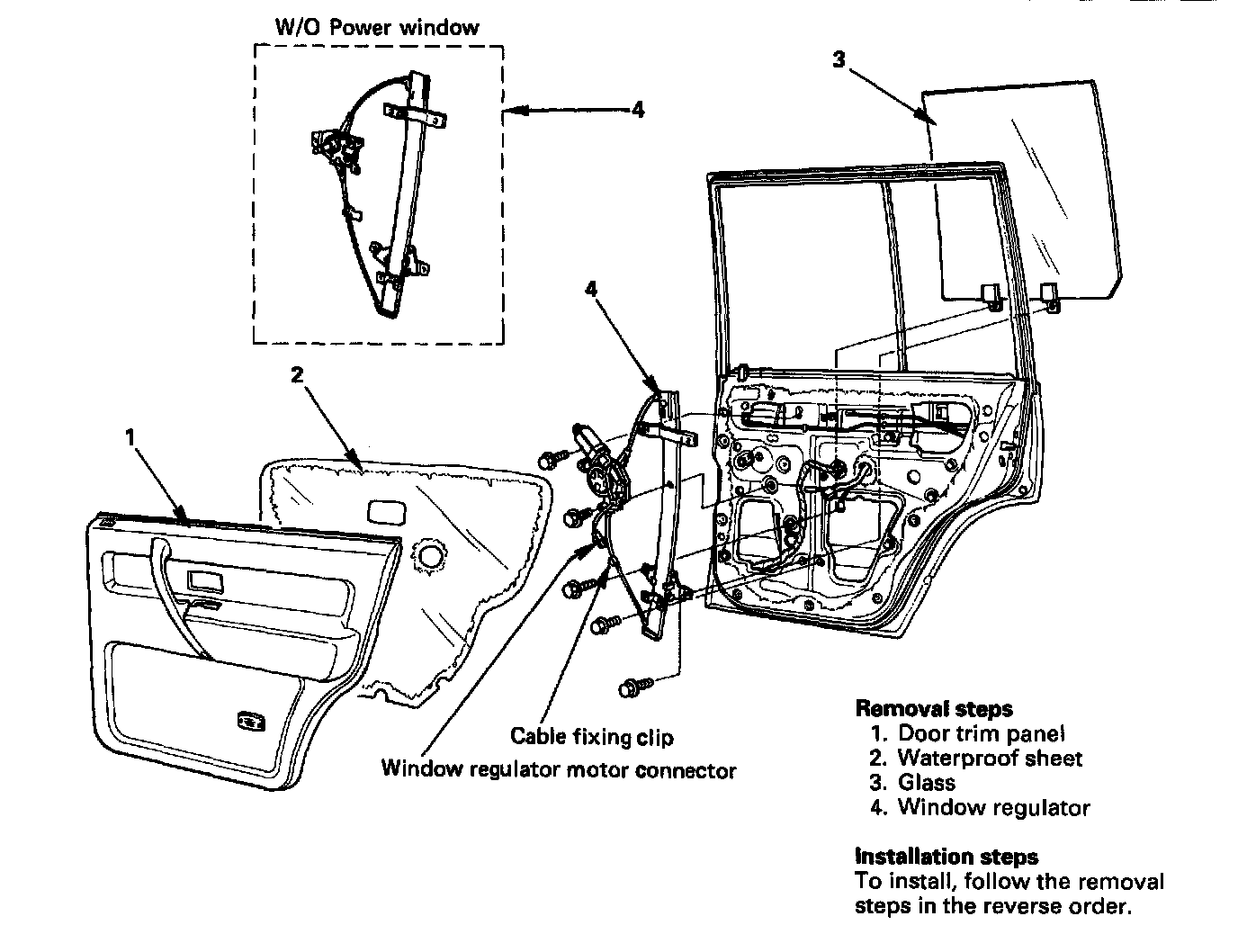

REAR WINDOW REGULATOR AND GLASS





REMOVAL

Preparation: Disconnect the battery ground cable

1. Door trim panel
^ Refer to "DOOR TRIM PANEL (REAR)" removal procedure.

2. Waterproof sheet
^ Taking notice of the door harness, peel the waterproof sheet off the door panel carefully.





3. Glass
^ Bring the glass down to the position where the bolt can be seen.
^ Remove the sash division fixing bolts (2 pcs.), and then remove the glass fixing bolt to remove the glass upwards.








4. Window regulator
^ Disconnect the regulator motor connector and remove the window regulator cable fixing clip from door panel (w/power window).
^ Remove window regulator fixing bolts and pull the regulator out from the lower hole of door panel.





INSTALLATION

To install, follow the removal steps in the reverse order, noting the following points.

1. Tighten the window regulator and glass fixing bolts to the specified torque.

Torque: 8 N.m (69 lb.in)

2. Install the waterproof sheet with no clearance between the door panel and the waterproof sheet.
