Cruise Control: Testing and Inspection

NOTE:

Troubleshooting:

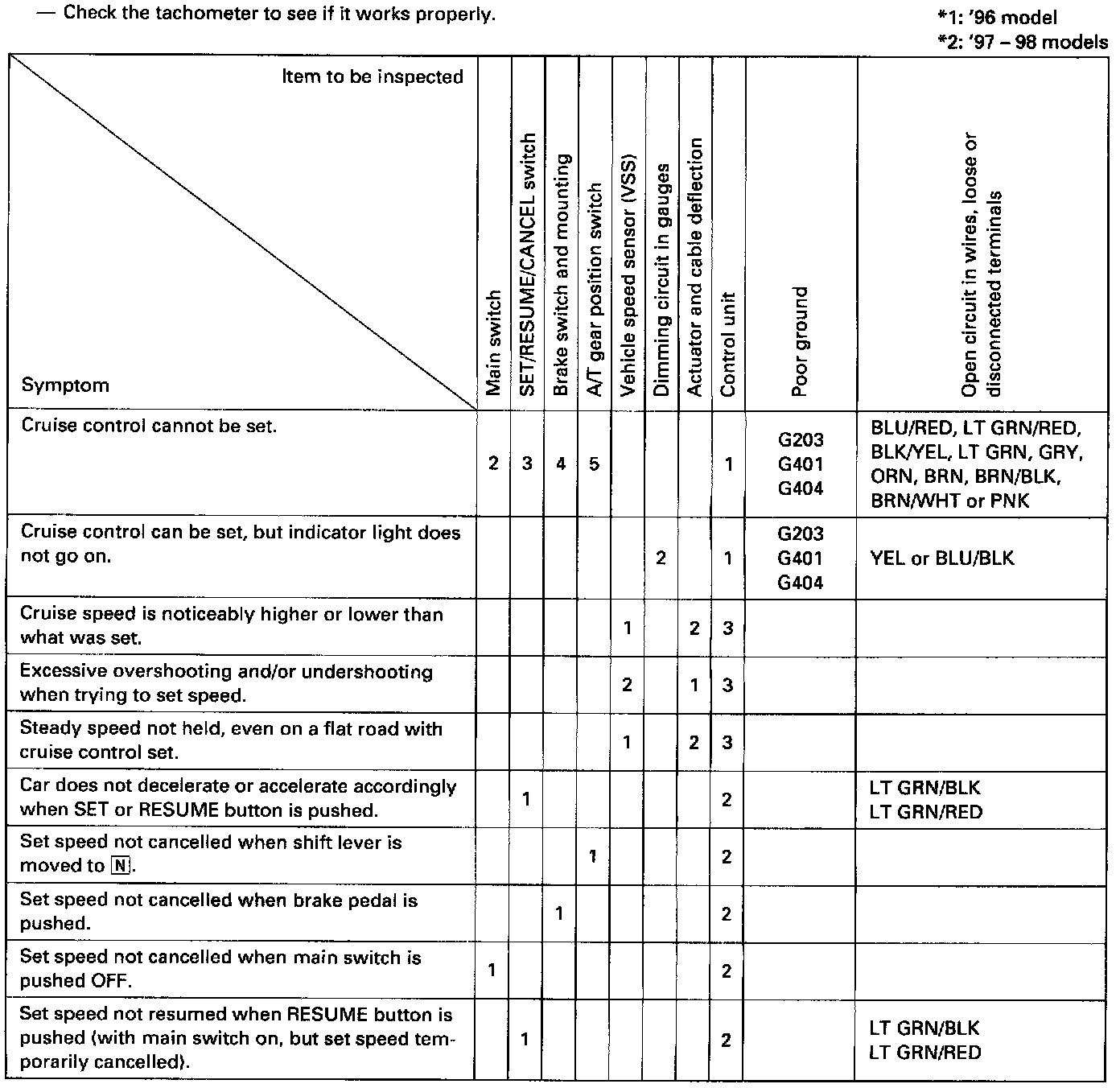

^ The numbers in the table show the troubleshooting sequence.
^ Before troubleshooting,
- Check the No. 1 (10 A) and the No. 4 (15 A)*1 or (20 A)*2 fuses in the under-dash fuse/relay box, and the No. 31 (120 A), No. 35 (50 A), and the No. 30 (20 A) fuses in the under-hood fuse/relay box.
- Check that the horns sound.
- Check the tachometer to see if it works properly.
