Charging System: Testing and Inspection

If the charging system light does not come ON or does not go OFF, or the battery is dead or low, test the following items in the order listed below:

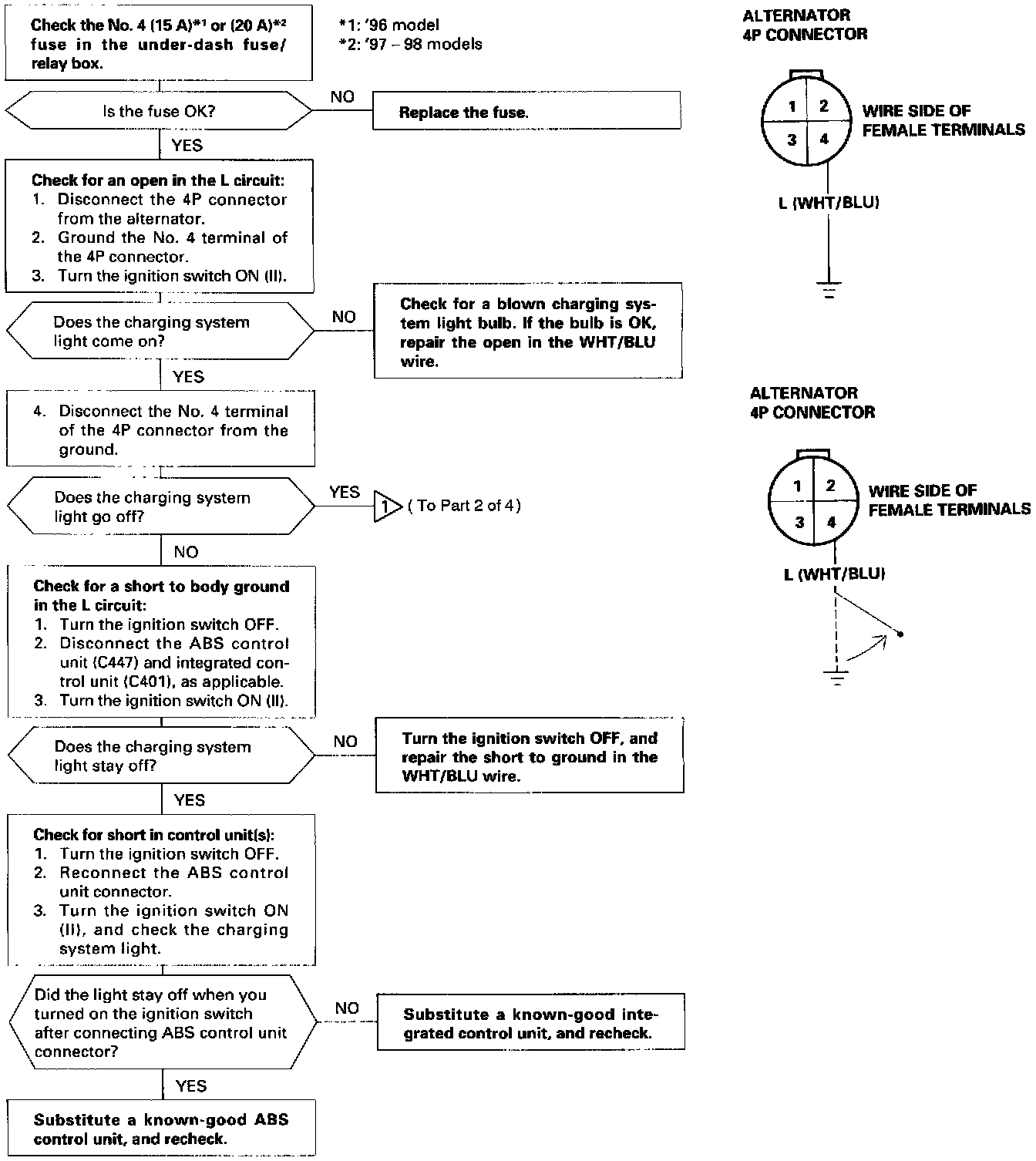

Troubleshooting (Part 1 Of 4):

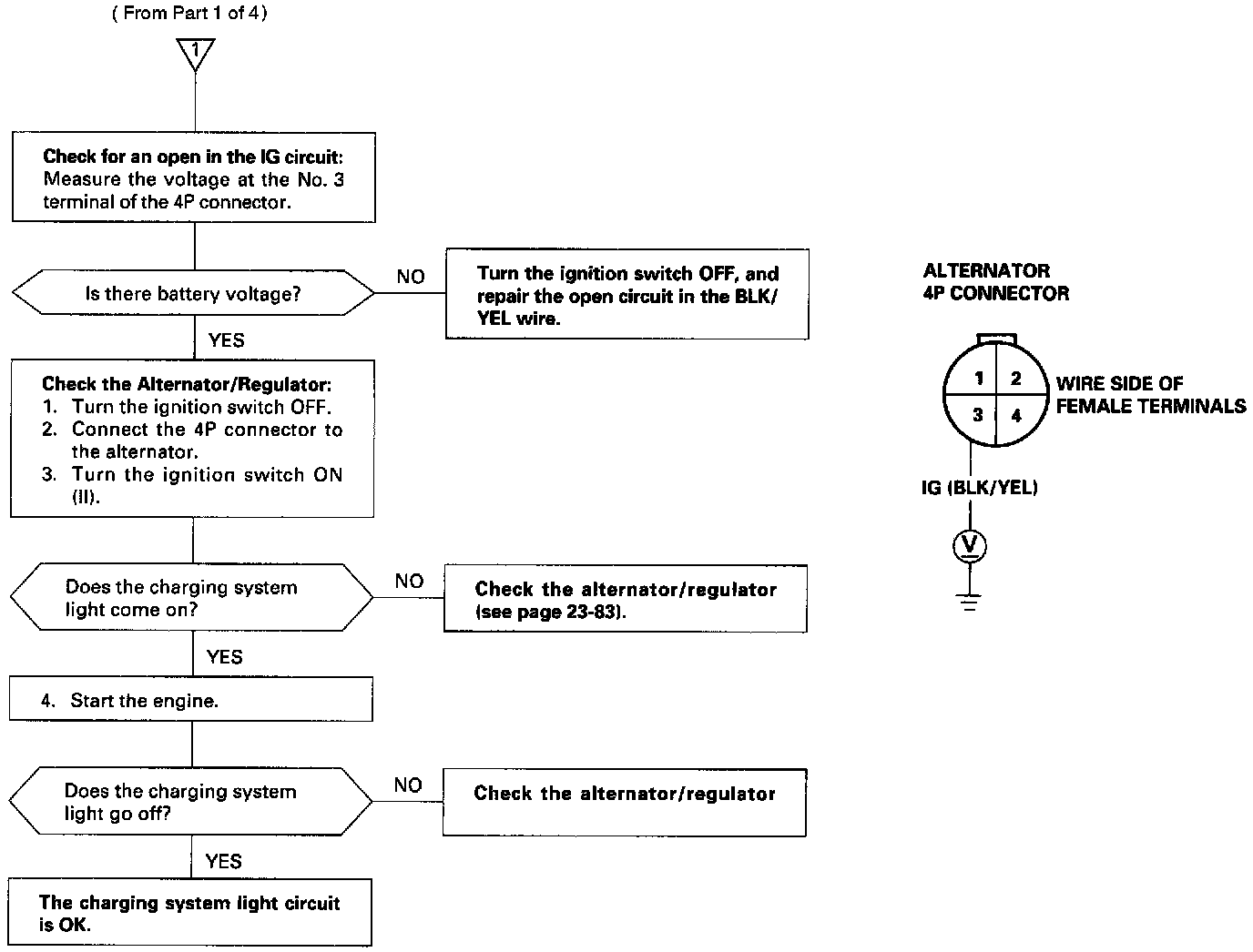

Troubleshooting (Part 2 Of 4):

1. Battery
2. Charging System Light
3. Voltage Check
4. Alternator/Regulator

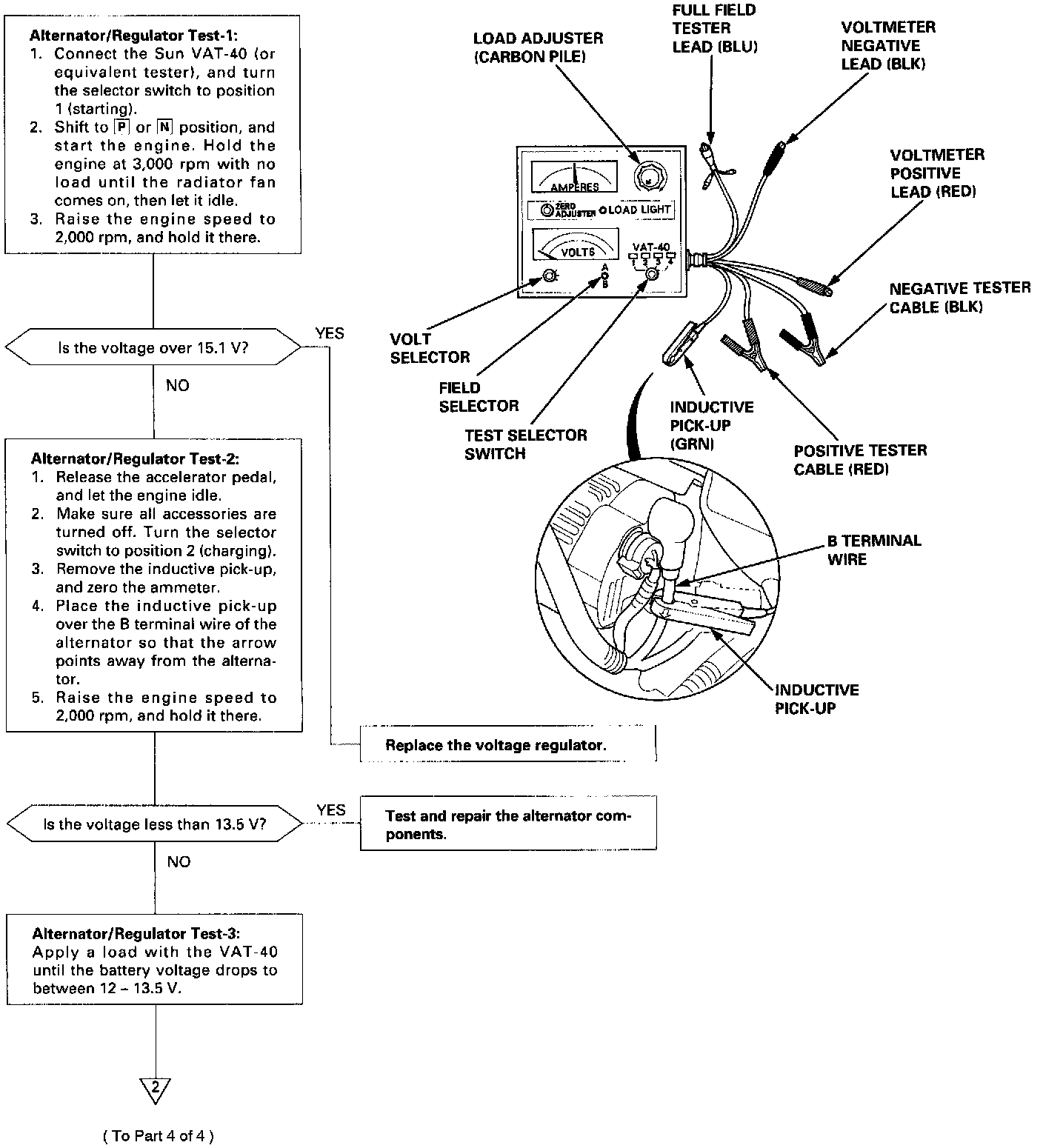

Troubleshooting (Part 3 Of 4):

NOTE: Be sure the battery is sufficiently charged.

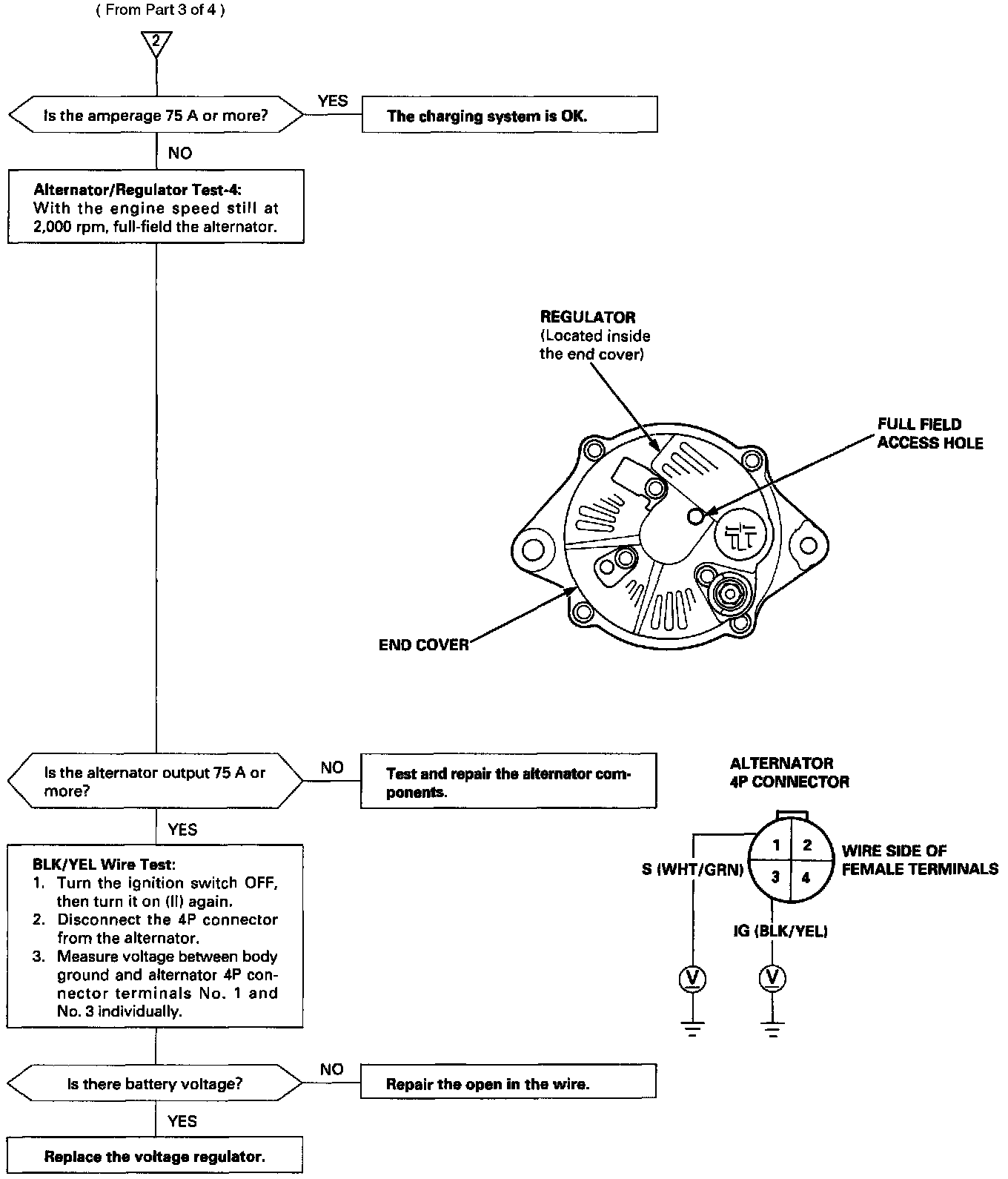

Troubleshooting (Part 4 Of 4):

CAUTION: The voltage will rise quickly when the alternator is full-fielded. Do not allow the voltage to exceed 18 V; it may damage the electrical system.

NOTE: Attach a probe to the VA-4O full field test lead, and insert the probe into the full field access hole at the back of the alternator. Switch the field selector to the "A (Ground)" position momentarily, and check the amperage reading.
