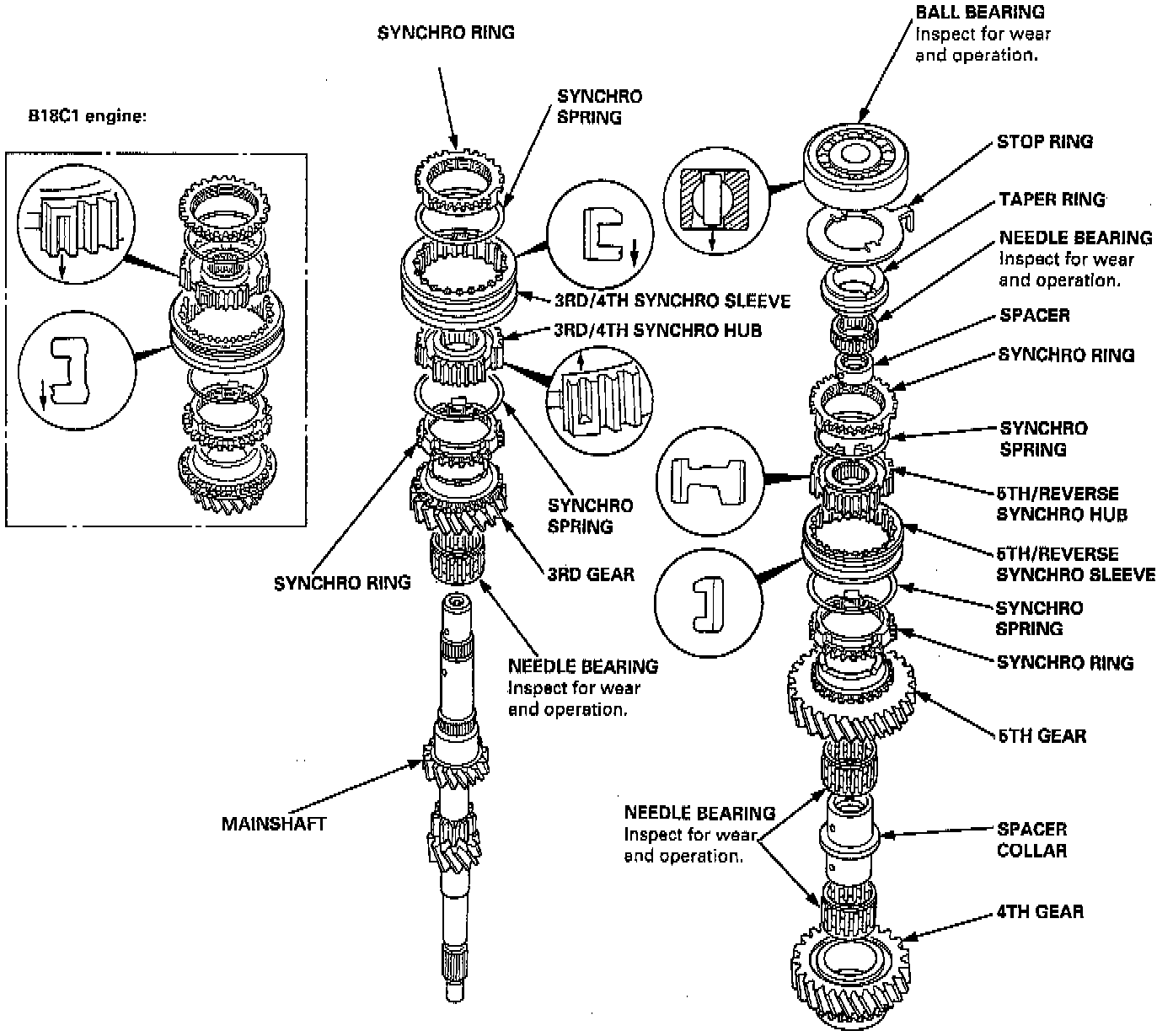

Mainshaft, M/T
NOTE: The 3rd/4th and the 5th synchro hubs are installed with a press.
Prior to reassembling, clean all the parts in solvent, dry them and apply lubricant to any contact surfaces. The 3rd/4th and the 5th synchro hubs, however, should be installed with a press before lubricating them.
