Chart 1
Chart 1

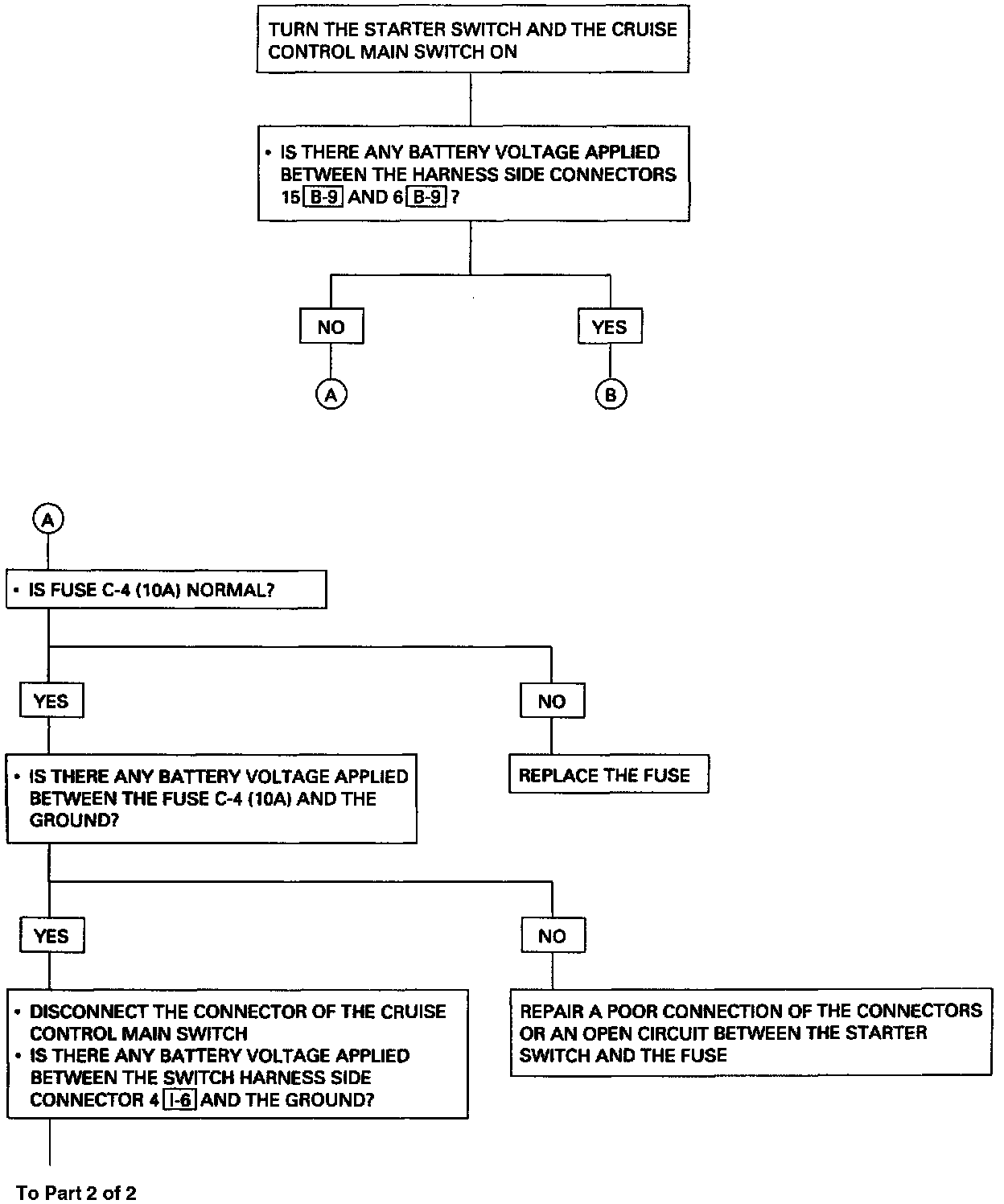

Chart 1 (Part 1 Of 4):

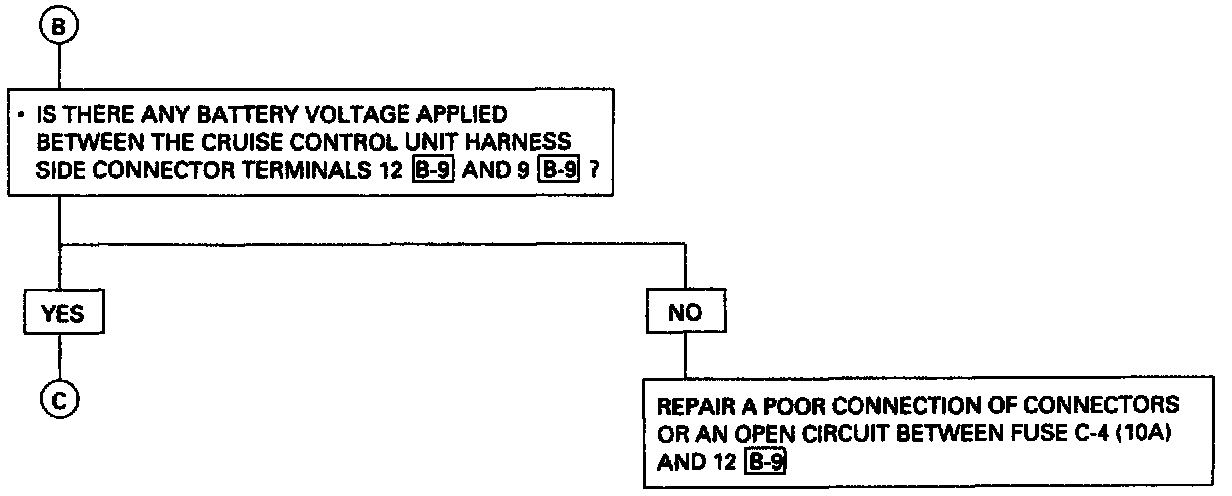

Chart 1 (Part 2 Of 4):

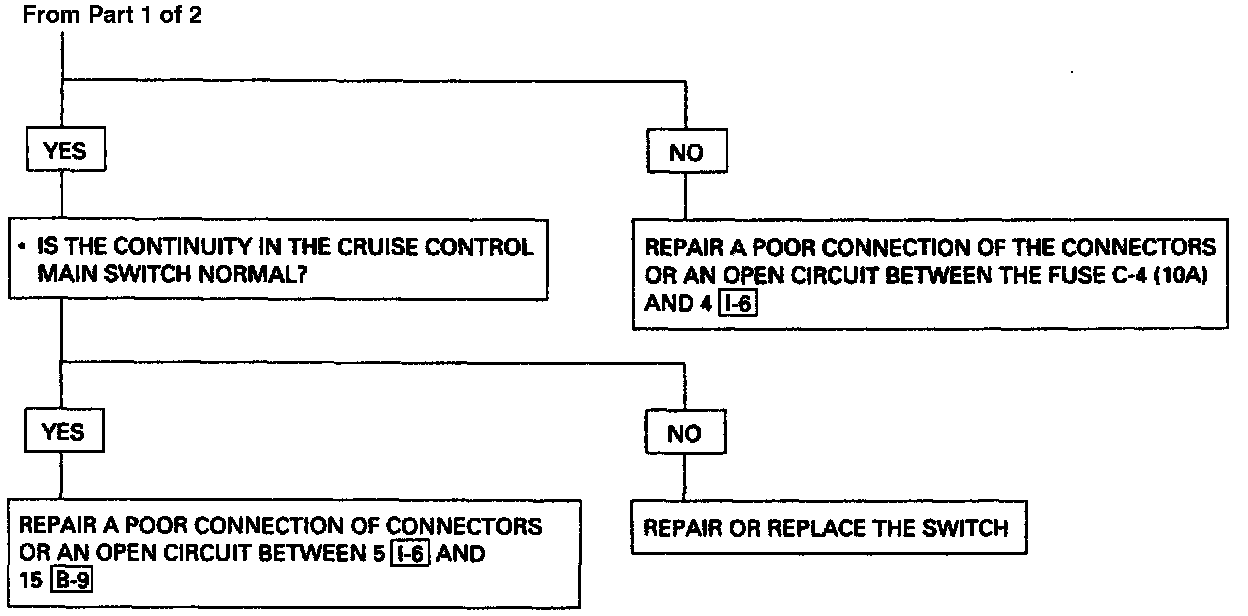

Chart 1 (Part 3 Of 4):

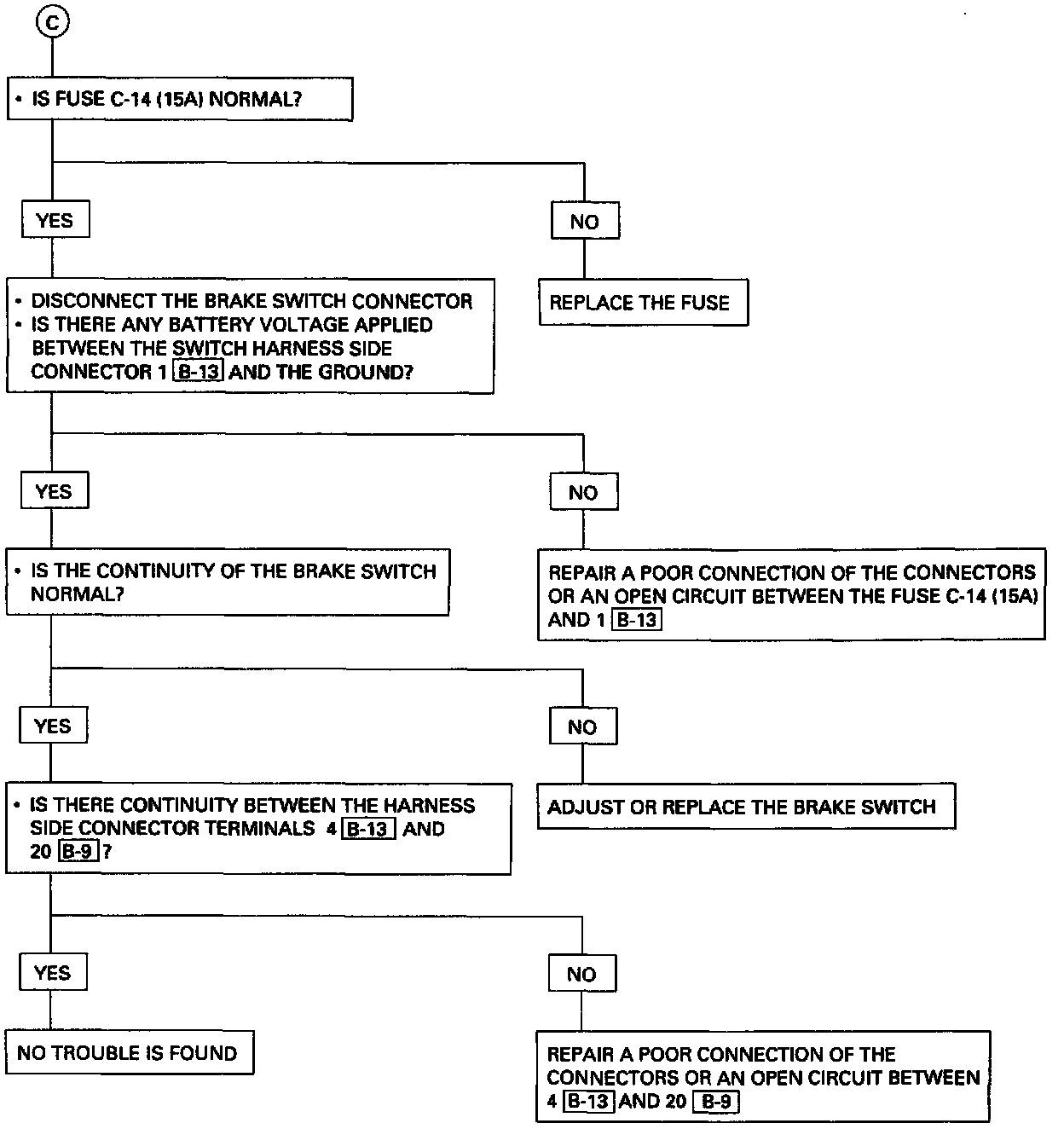

Chart 1 (Part 4 Of 4):
Checking Procedure Of The
Cruise Control
Power Circuit
