Symptom Related Diagnostic Procedures

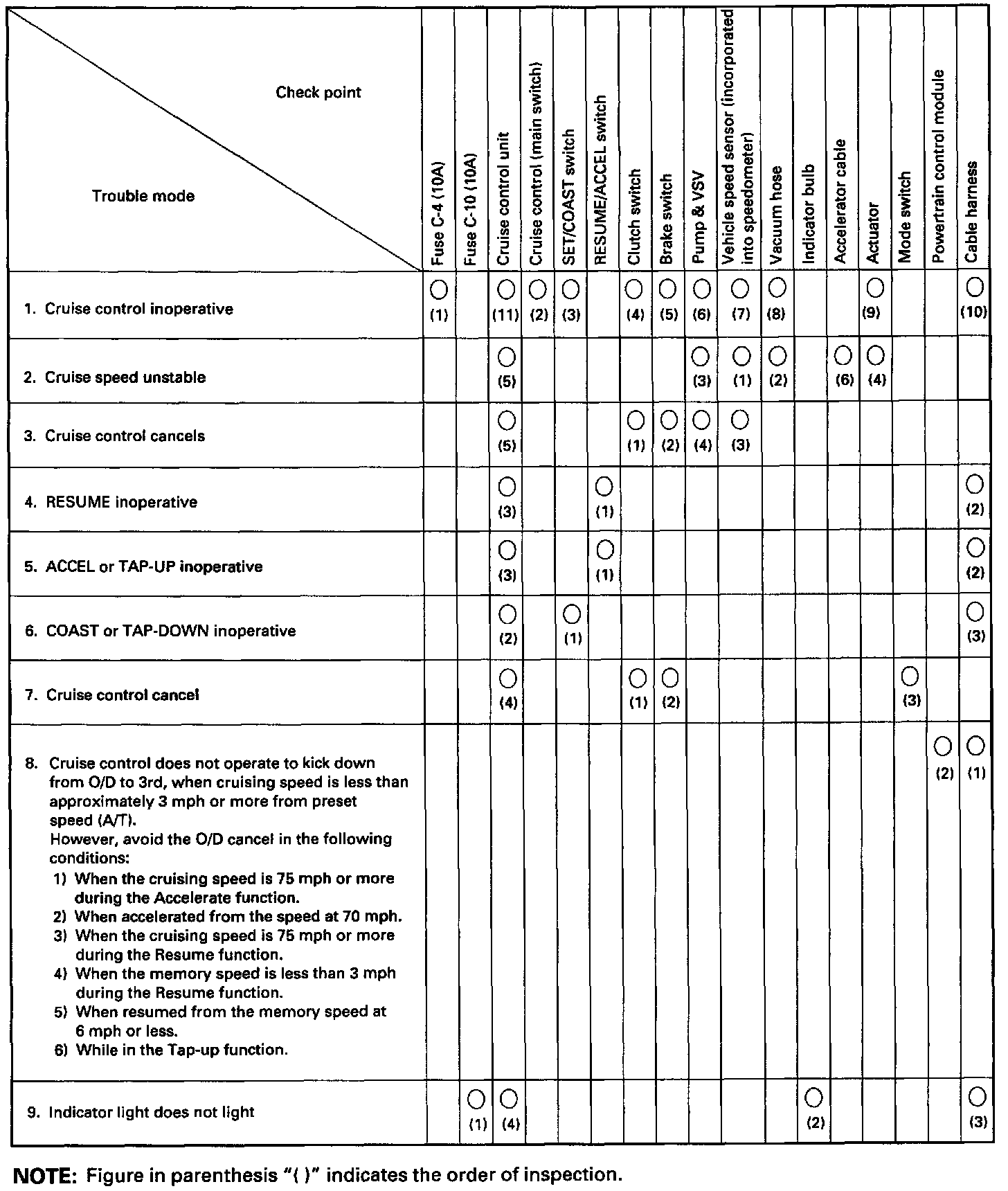

Quick Chart For Possible Cause

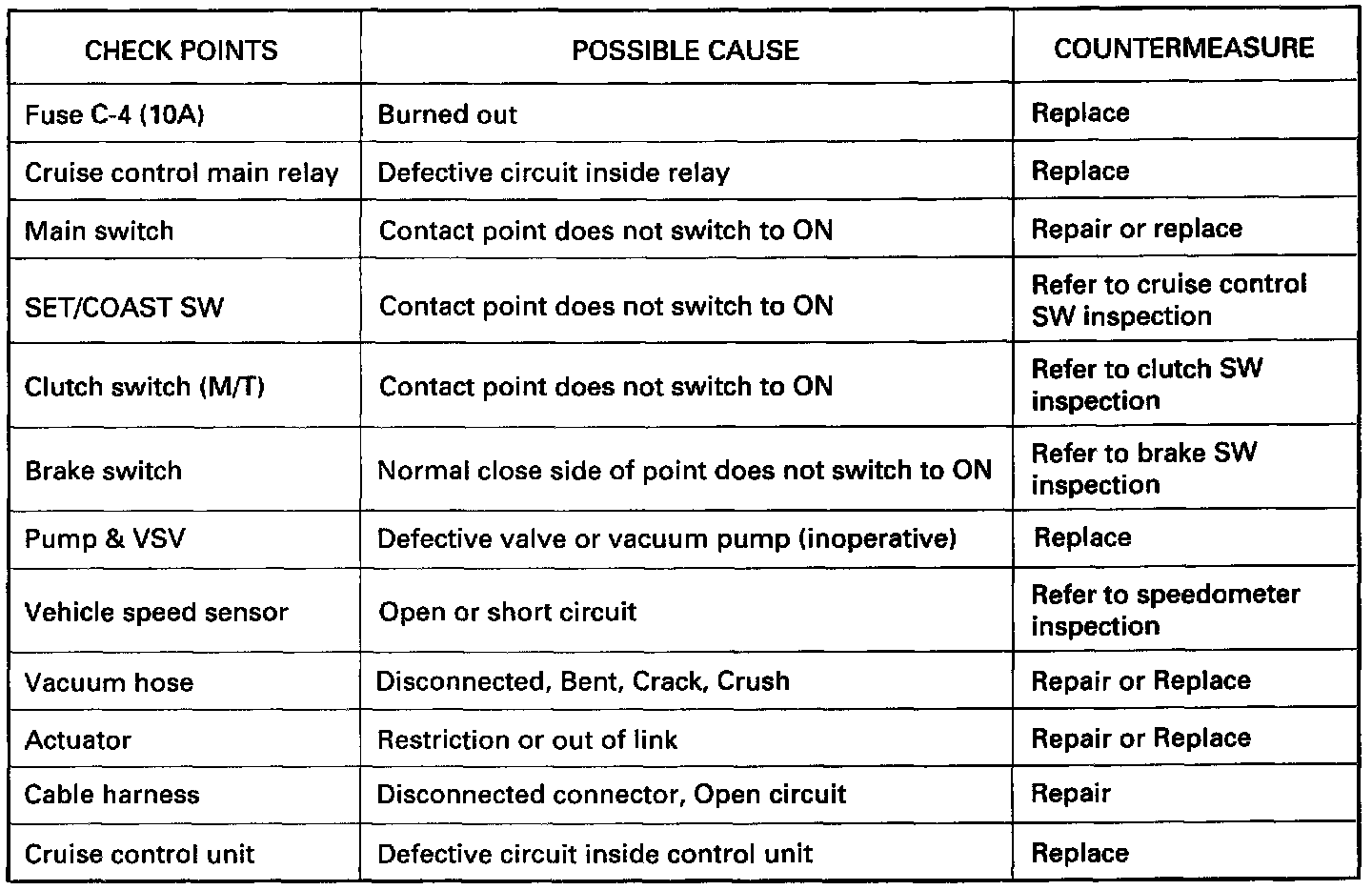

1. Cruise control inoperative

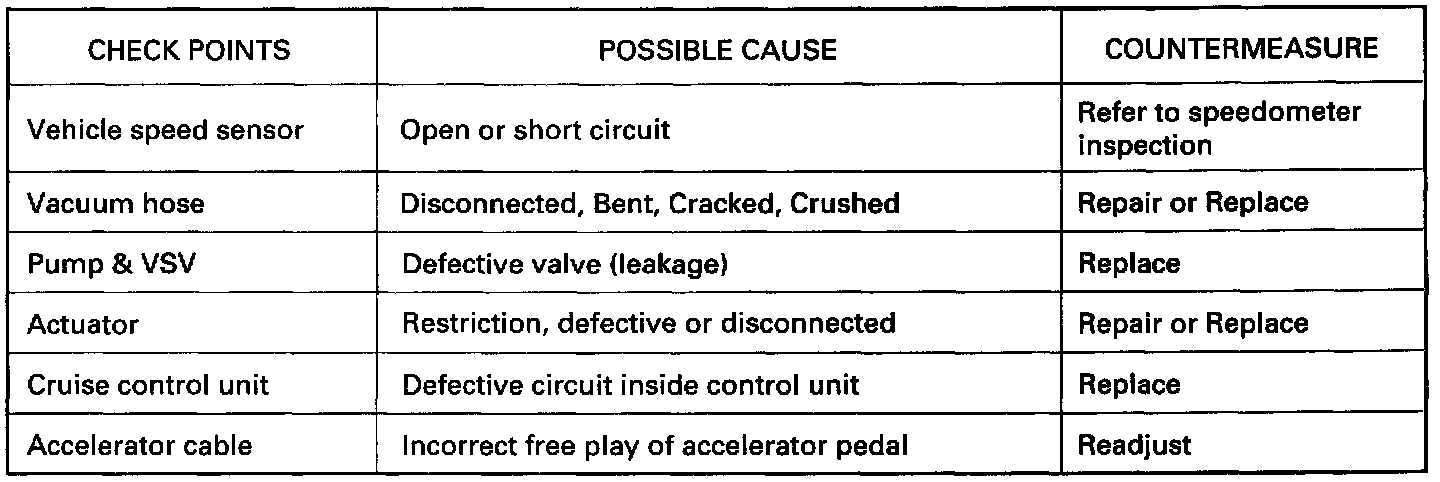

2. Cruise speed unstable




3. Cruise control cancels

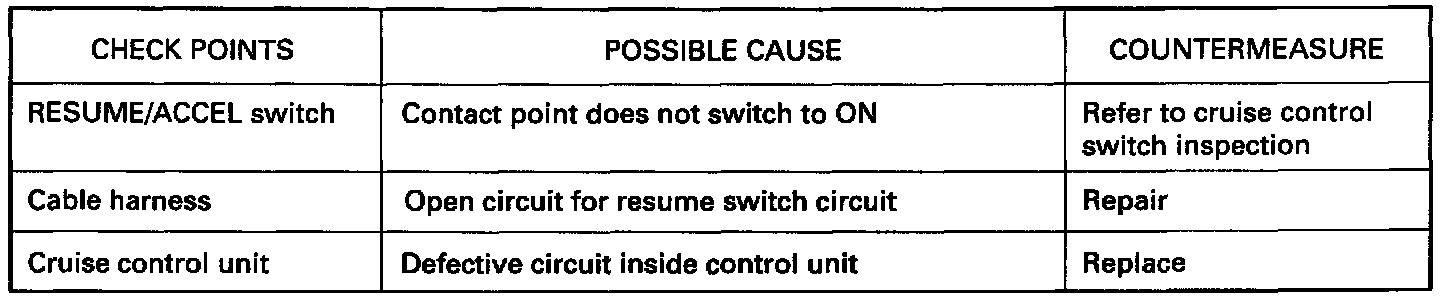

4. Resume inoperative
5. ACCEL or TAP-UP inoperative




6. COAST or TAP-DOWN inoperative




7. Cruise control does not cancel

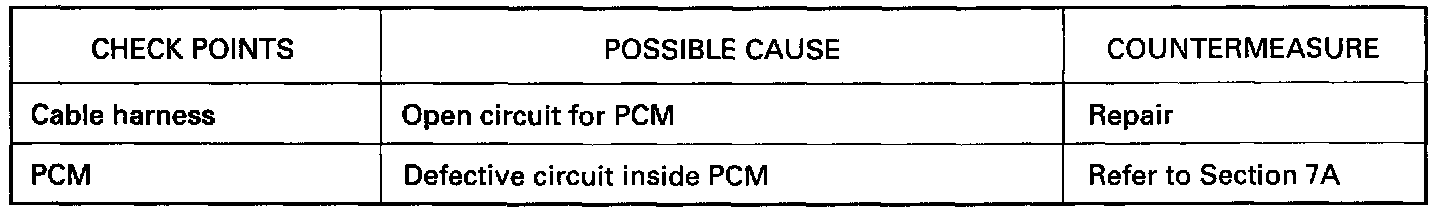

8. Cruise control does not operate to kick down O/D to 3rd, when cruising speed is less than approximately 3 mph or more from preset speed (A/T)

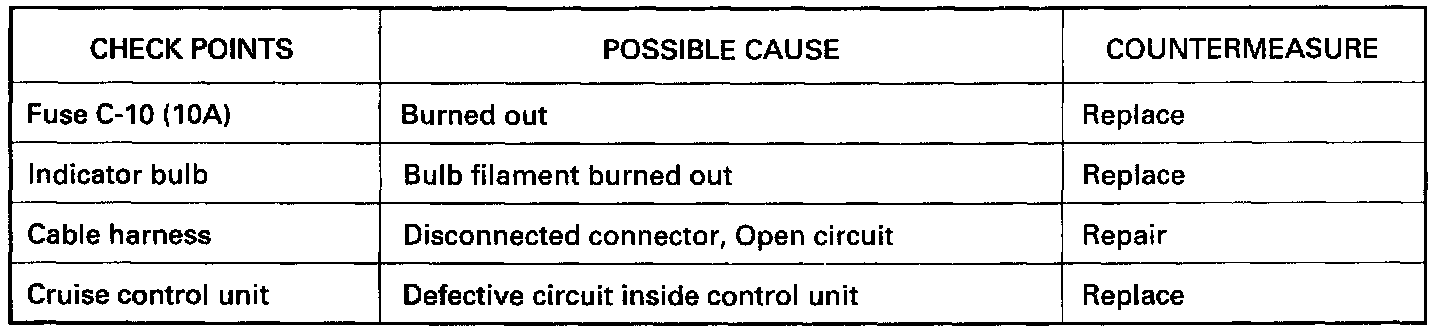

9. Indicator light does not light
