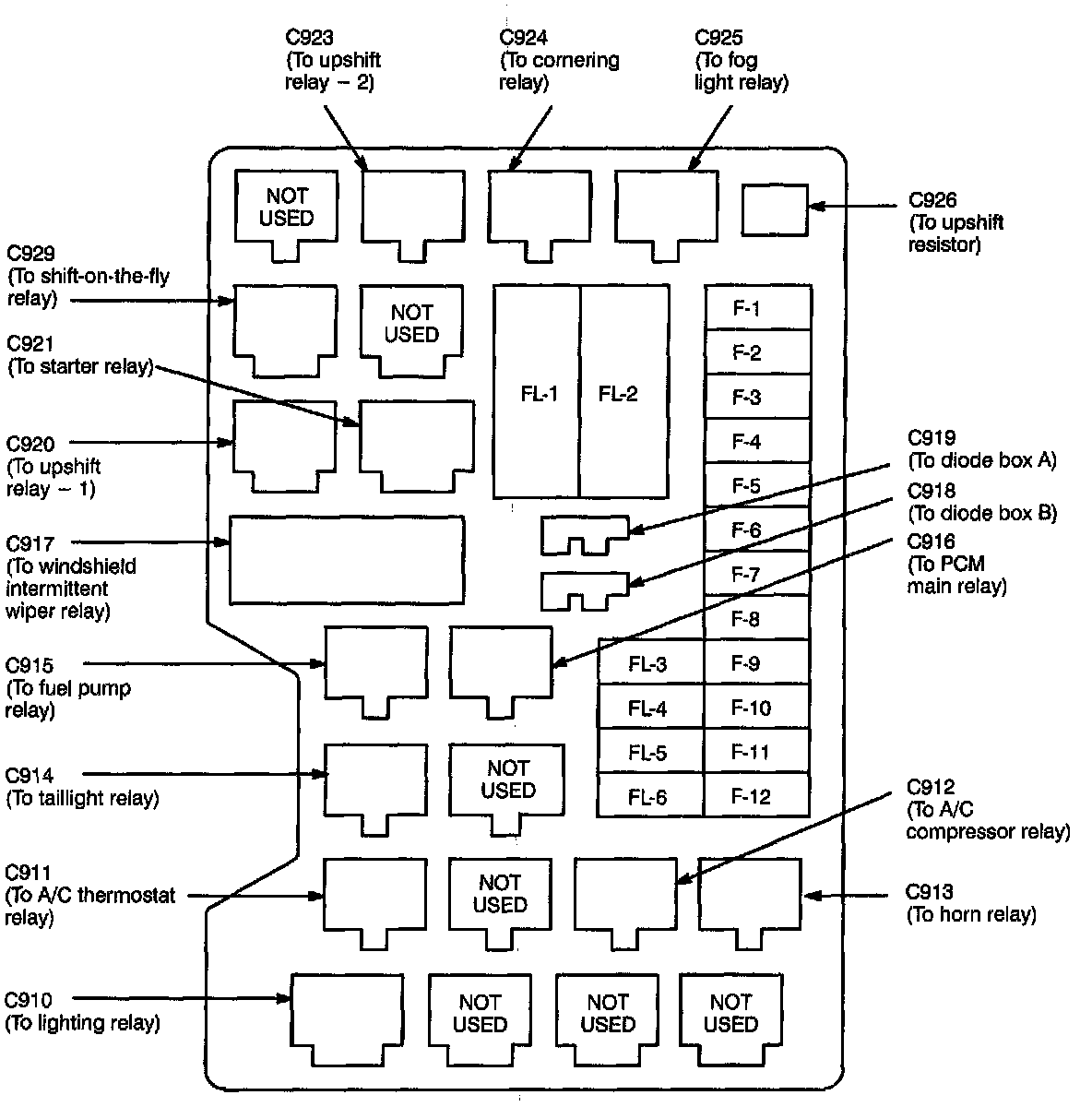

Fuse/Relay Box
>>
Fuse/Relay Box
Fuse/Relay Box

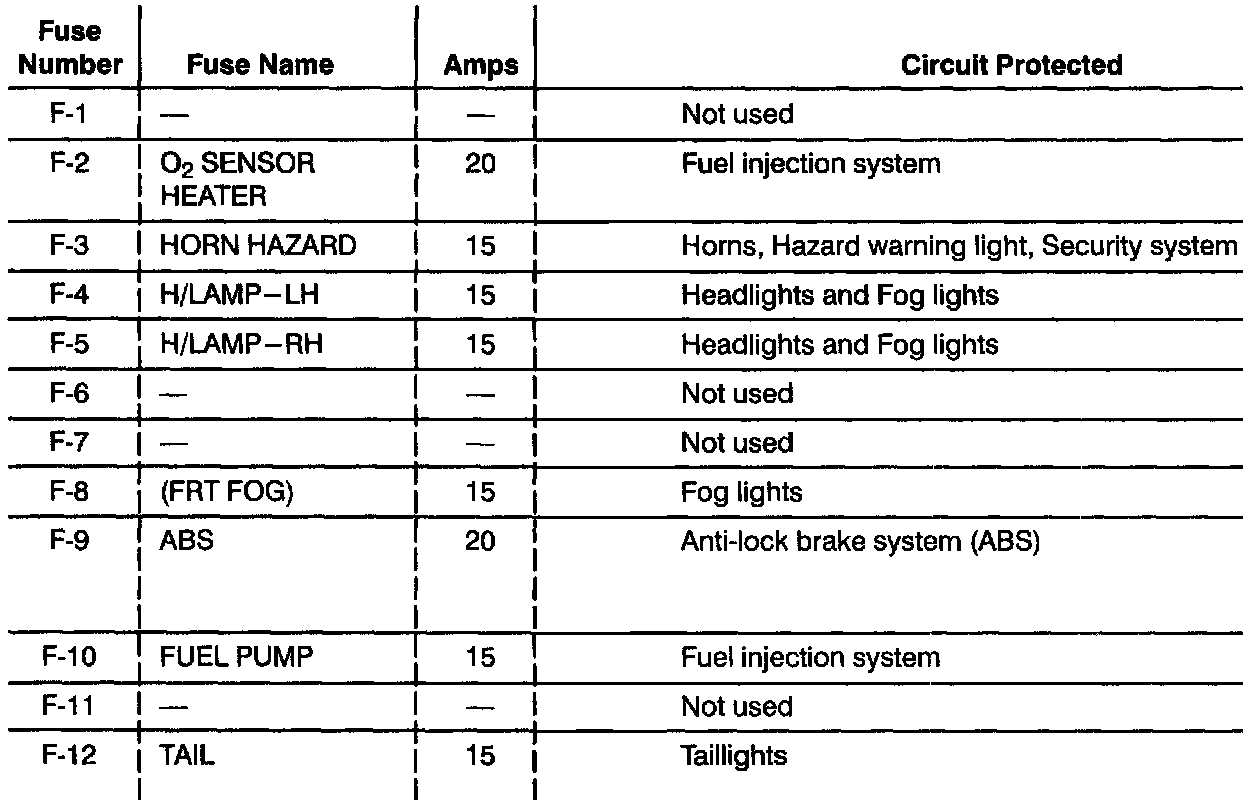

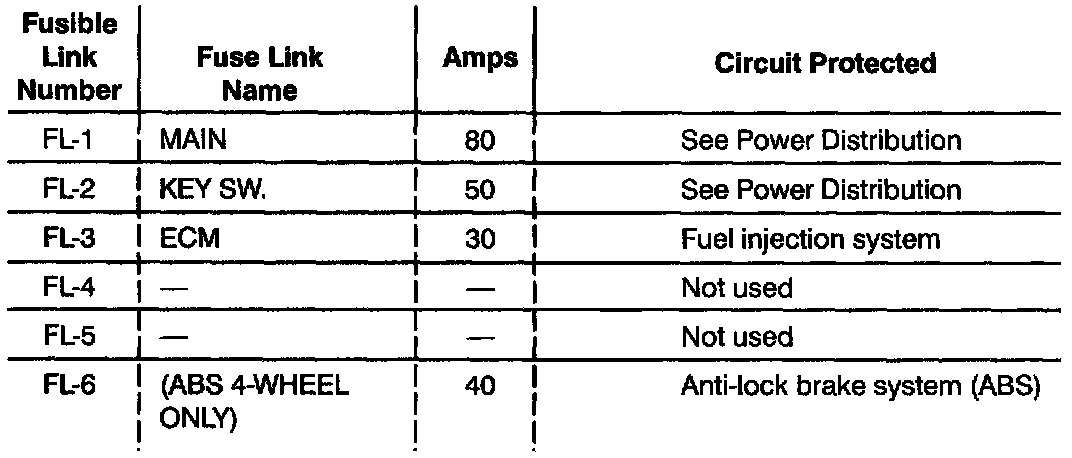

Fuse/Relay Box (Part 1 Of 2):
Fuse/Relay Box (Part 2 Of 2):
Fuse/Relay Box (Part 2 Of 2):
