Antilock Brakes / Traction Control Systems

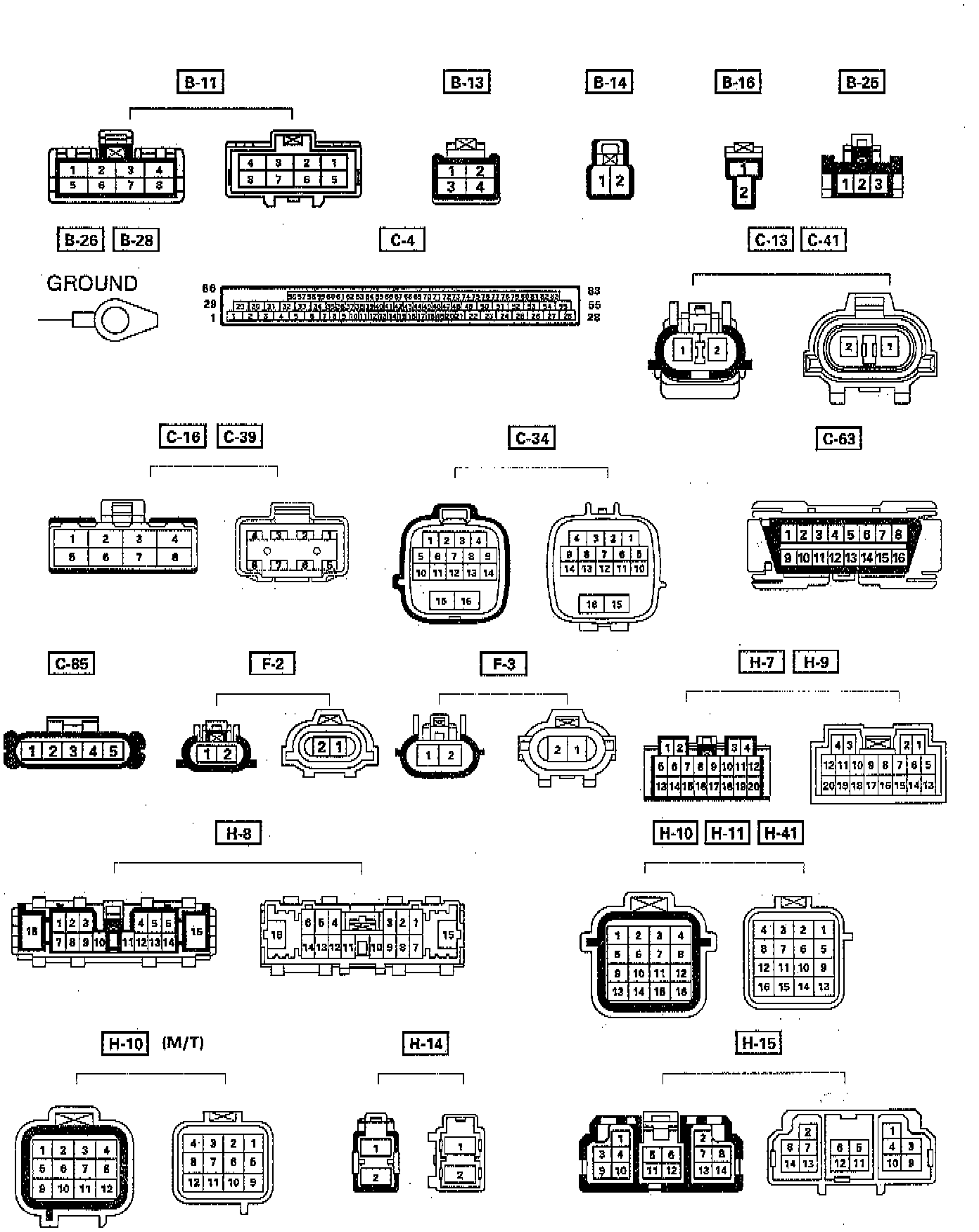

Connector List (Part 1 Of 2):

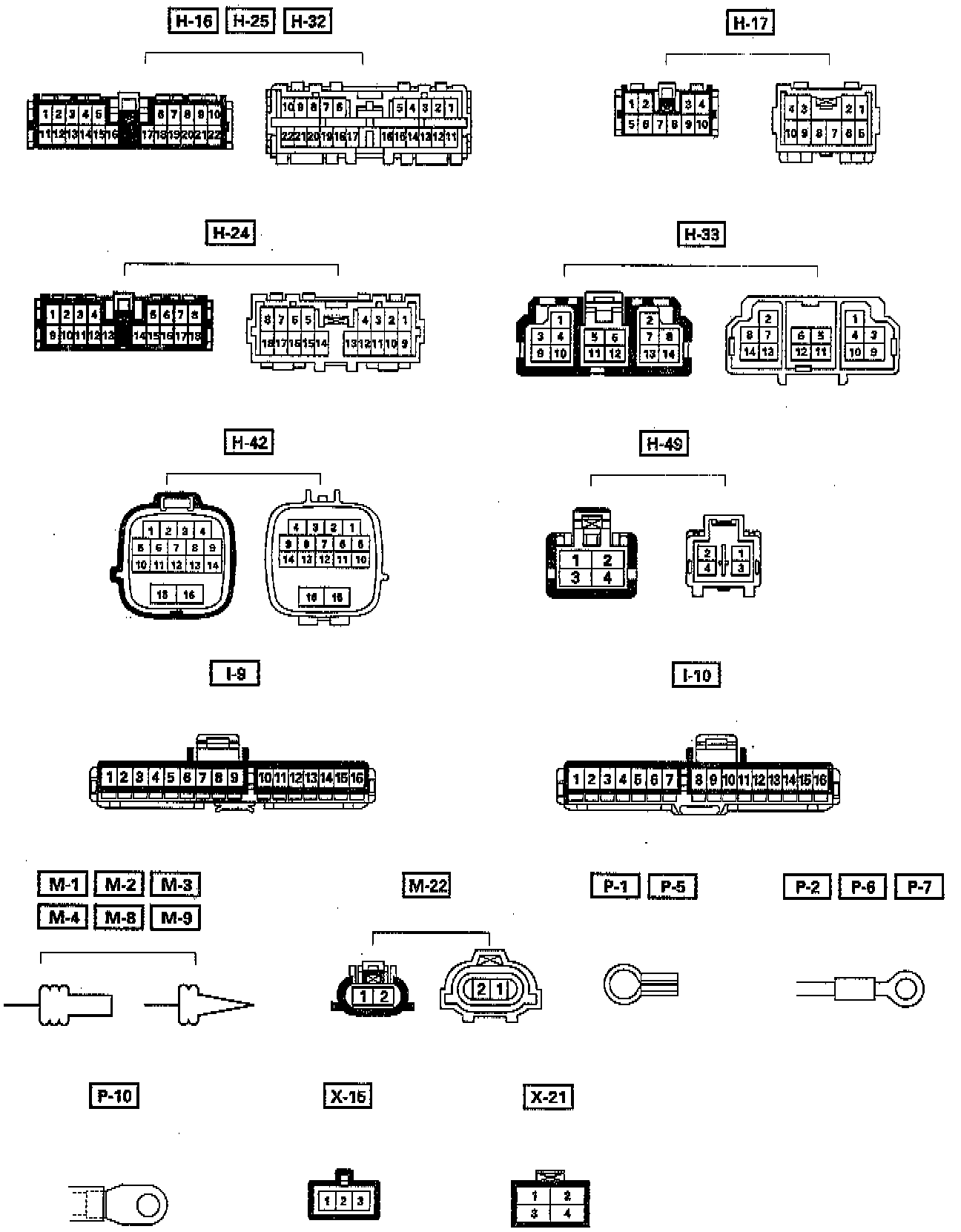

Connector List (Part 2 Of 2):
