Exploded Views
>>
Differential Assembly
>>
System Diagram
>>
Front Axle
>>

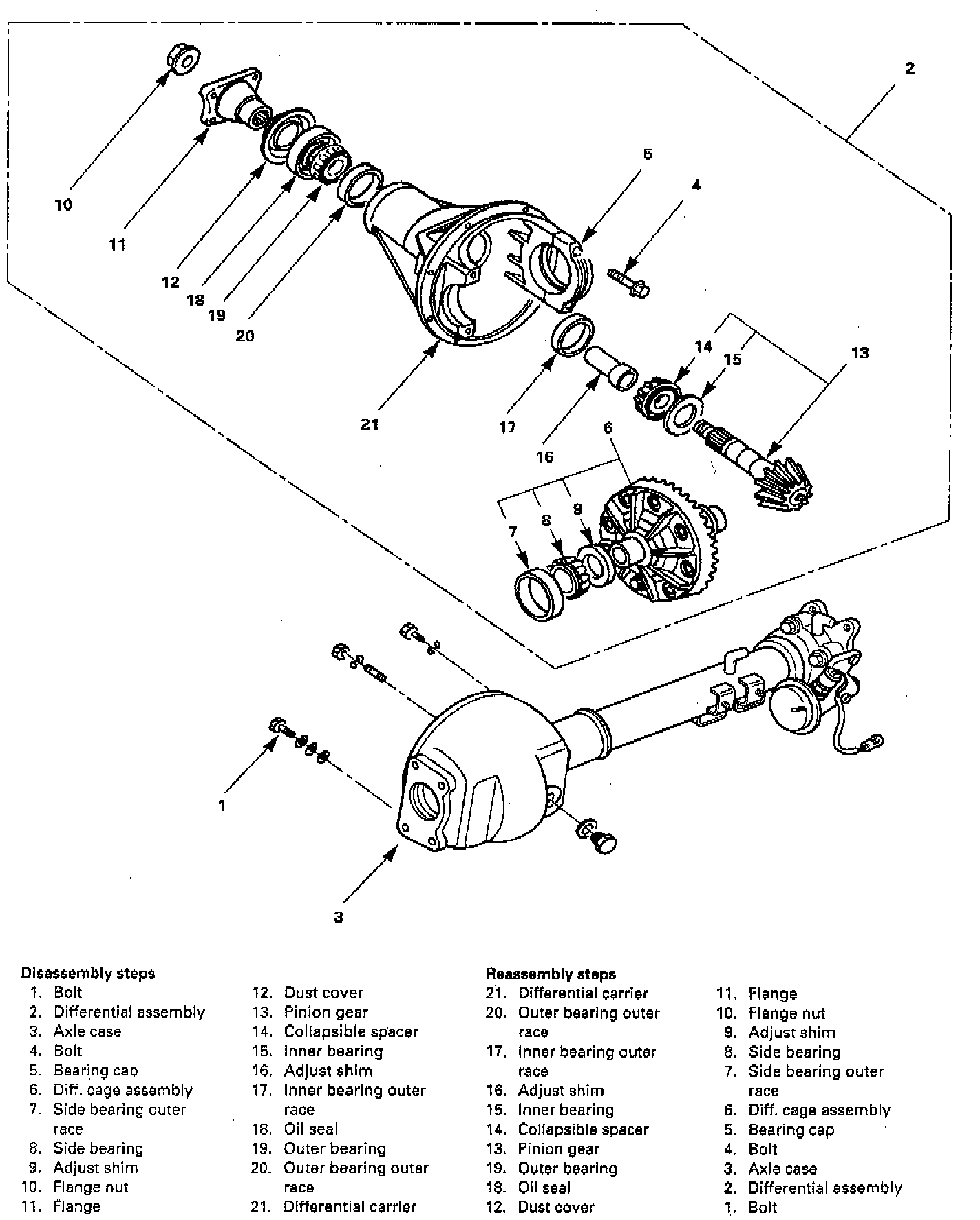

Differential Assembly
Differential Assembly
