Home >> Acura >> 1997 >> SLX V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Suspension >> Wheel Hub

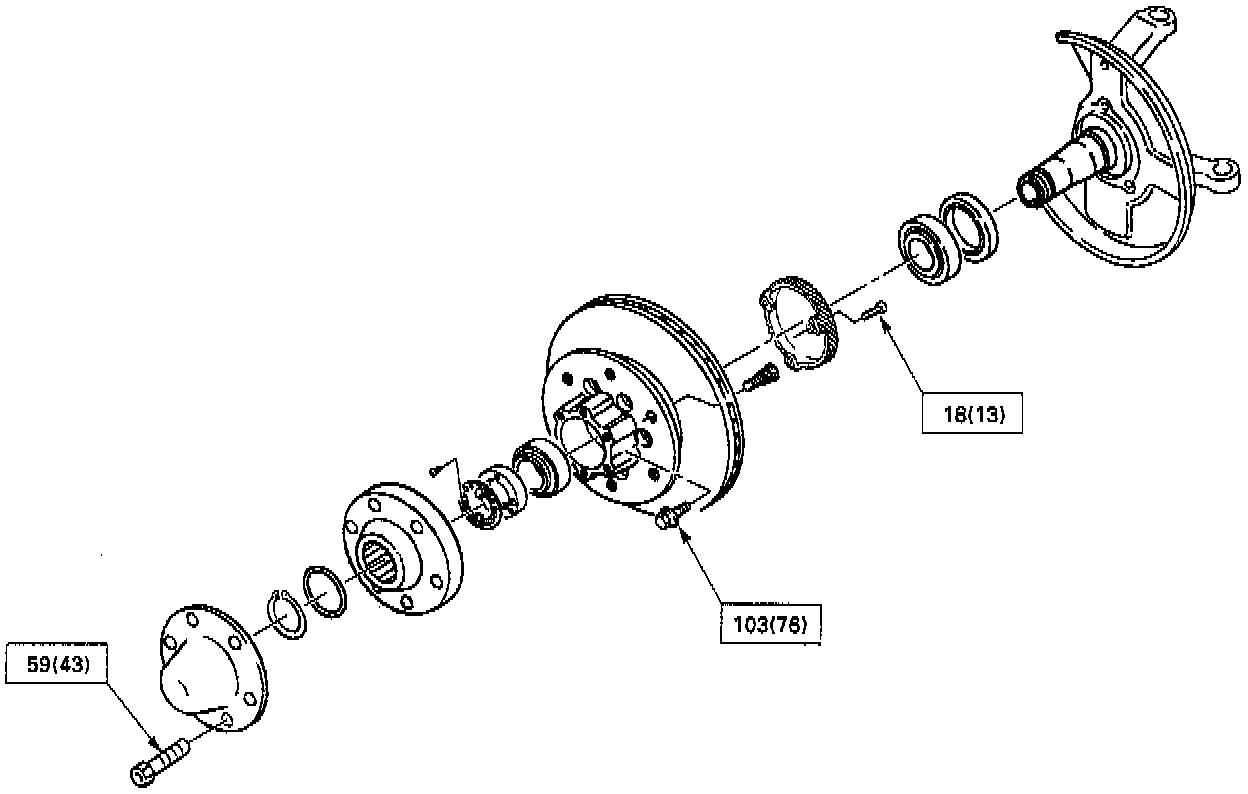

Wheel Hub

Captions Are Nm (ft. Lbs.):
