Home >> Acura >> 1997 >> SLX V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> Case, Transfer Case >> Transfer Case Assembly

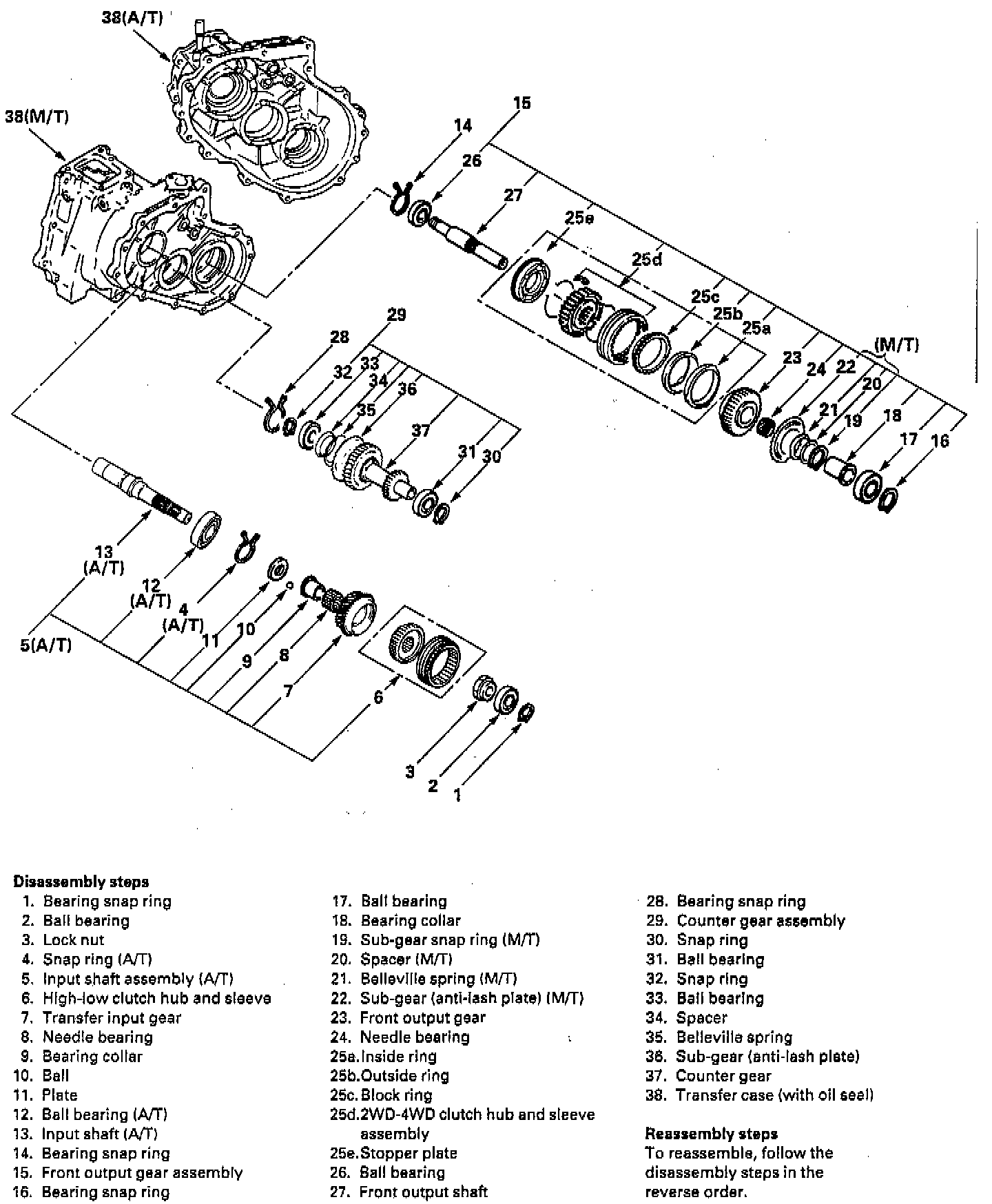

Transfer Case Assembly
