Air Conditioning Switch: Service and Repair

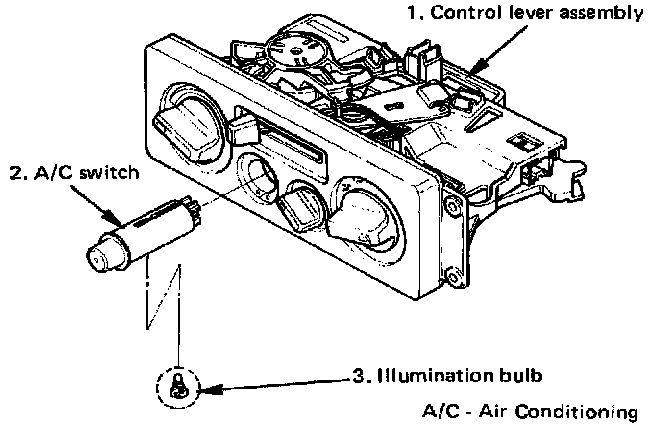

Air Conditioning Switch, Illumination Bulb and Associated Parts





Preparation:
Disconnect the battery ground cable

1. Control lever assembly
^ Refer to "CONTROL LEVER ASSEMBLY" removal procedure.




2. Air conditioning switch

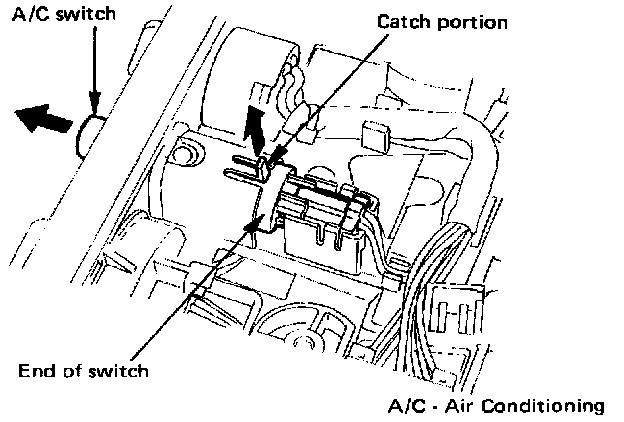

^ Raise up the catch portion of the switch and remove the switch while pushing it toward the outside.
3. Illumination bulb
^ Turn the illumination bulb counterclockwise to remove.

INSTALLATION
To install, follow the removal steps in the reverse order.
