Ambient Temperature Sensor / Switch HVAC: Service and Repair

REMOVAL




Preparation: Disconnect the battery ground cable.

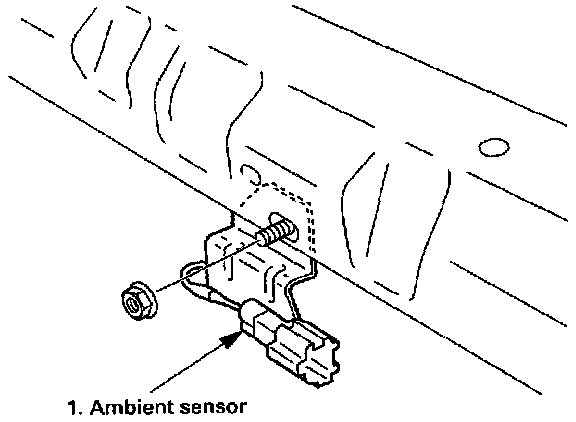

1. Ambient sensor
^ Disconnect the connector.
^ Remove the nut.

INSTALLATION
To install, follow the removal steps in the reverse order.
