Control Lever Assembly and/or Control Cables

Control Lever Assembly AND/OR Control Cables:

Preparation:
^ Disconnect the battery ground cable.

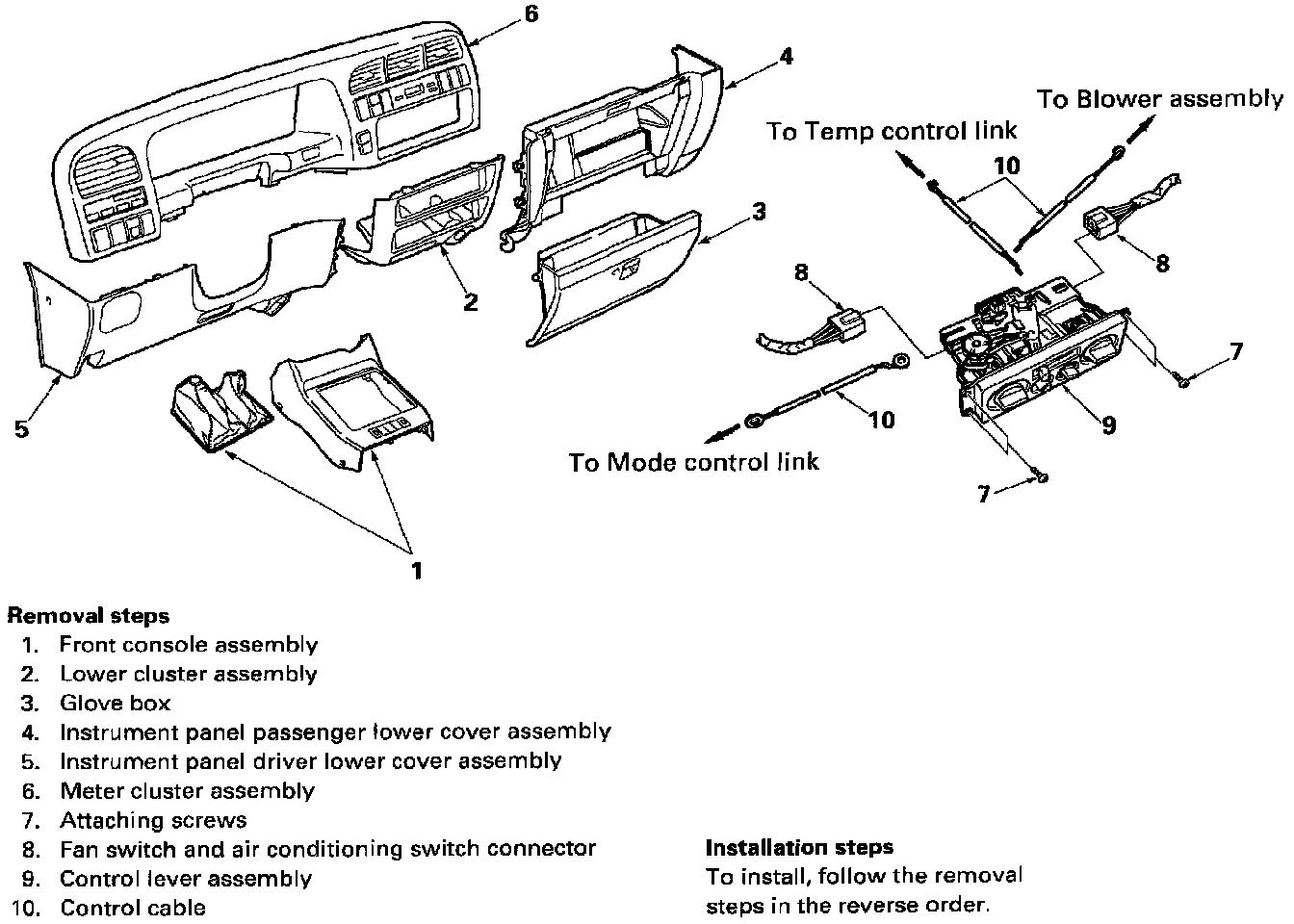

1. Front console assembly
2. Lower cluster assembly
3. Glove box
4. Instrument panel passenger lower cover assembly
5. Instrument panel driver lower cover assembly
6. Meter cluster assembly
^ Refer to "BODY" system for INSTRUMENT PANEL ASSEMBLY removal procedure.

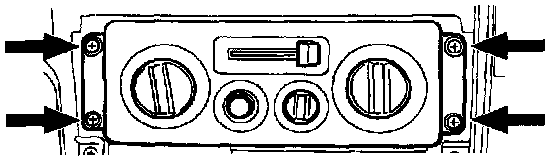

7. Attaching screws
^ Remove the 4 attaching screws.
8. Fan switch and air conditioning switch connector

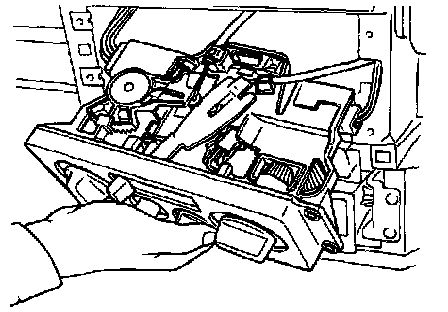

^ Pull the control lever assembly out and disconnect the connectors.
9. Control lever assembly
10. Control cable

INSTALLATION
To install, follow the removal steps in the reverse order, noting the following points:

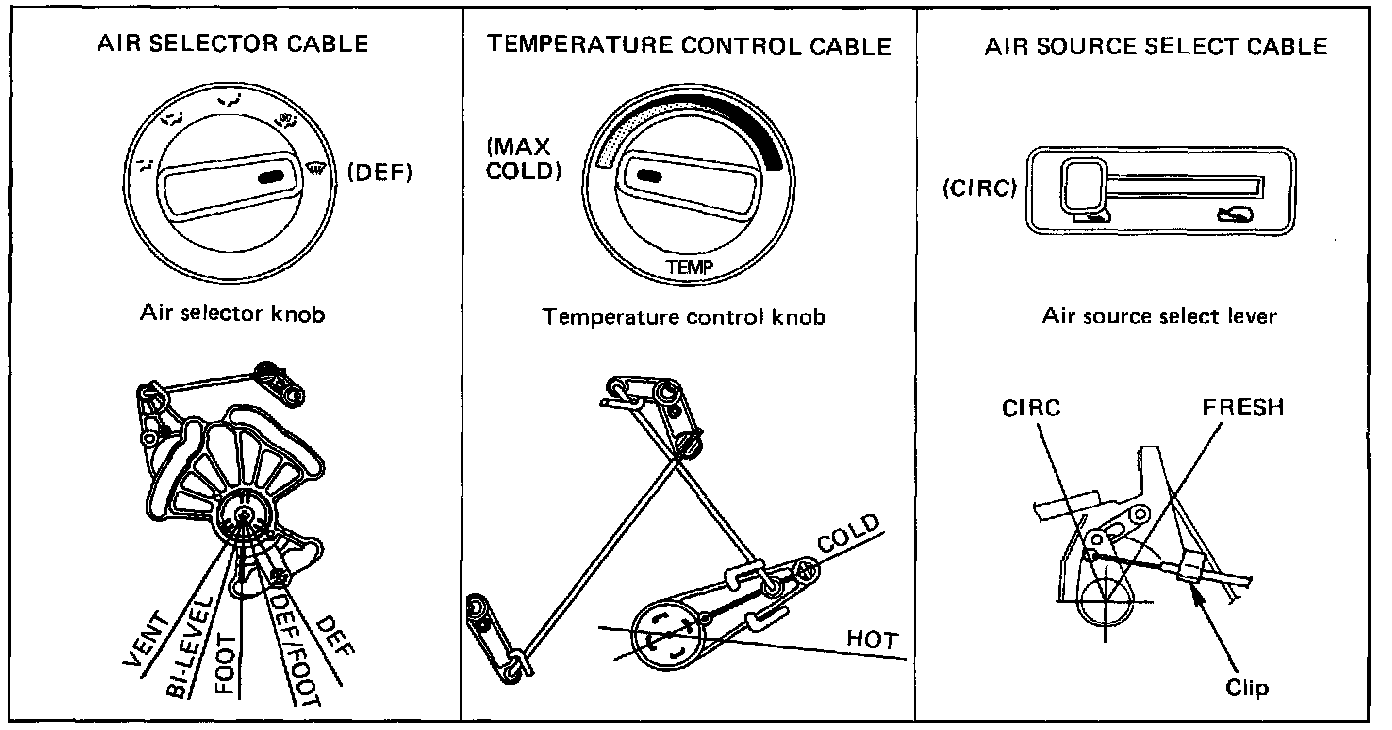

1. Adjust the control cables
^ Air source control cable
1. Slide the control lever to the left ("CIRC" position).
2. Connect the control cable at the "CIRC" position of the link unit of blower assembly and secure it with the clip.
^ Temperature control cable
1. Turn the control knob to the left ("MAX COLD" position).
2. Connect the control cable at the "COLD" position of the temperature control link of the heater unit and secure it with the clip.
^ Air select control cable
1. Turn the control knob to the right ("DEFROST" position~.
2. Connect the control cable at the "DEFROST" position of the mode control link of the heater unit and secure it with the clip.
2. Check control cable operation.
