Vehicle Ride Height

CAUTION: When adjusting front end alignment, be sure to begin with trim height as trim height adjustment may change other adjusted alignments.

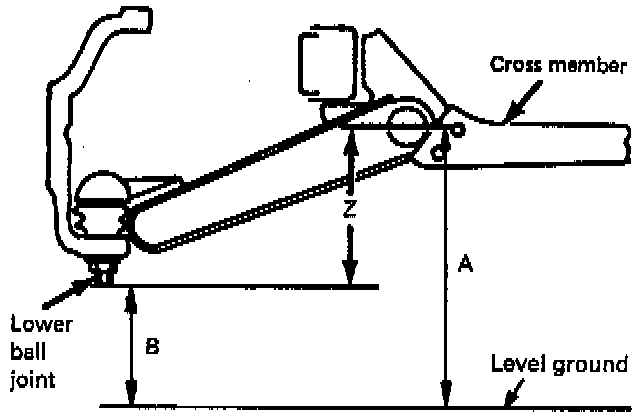

Adjust the trim height (z) by means of the adjusting bolt on the height control arms.
1. Check and adjust the tire inflation pressures.
2. Park the vehicle on a level ground and move the front of the vehicle up and down several times to settle the suspension.

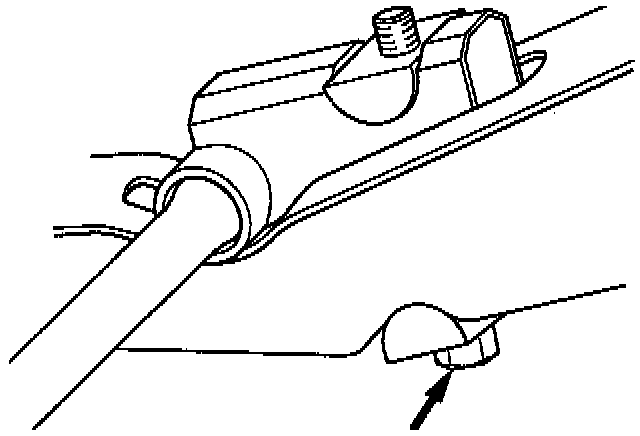

3. Make necessary adjustment with the adjusting bolt on the height control arms.
