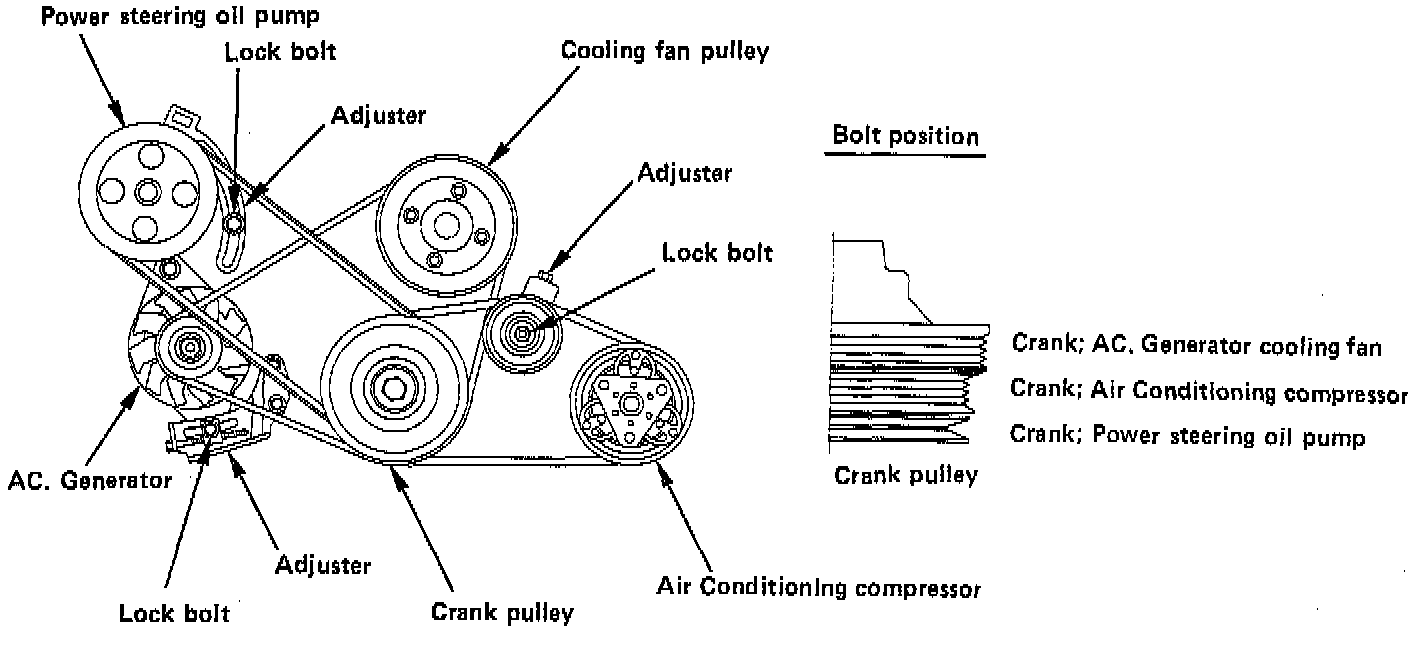

Drive Belt: Service and Repair

Generator & Fan Pulley
1 Drive belt Loosen generator fixing bolt and adjuster lock bolt.
2. Adjust bolt by turning adjust bolt. After installation, tighten lock bolt and fixing bolt to:
- Tighten fixing bolt to 22 Nm (16 ft. lbs.).
- Tighten lock bolt to 24 Nm (17 ft. lbs.).

A/C Compressor Drive Belt
- Loosen lock bolt and adjust bolt by turning adjust bolt.
- After installation tighten lock bolt to 50 Nm (37 ft. lbs.).

Power Steering Oil Pump Drive Belt
- Loosen lock bolt and adjust bolt by turning adjust bolt.
- After installation tighten lock bolt to 46 Nm (30 ft. lbs.).
