Home >> Acura >> 1997 >> SLX V6-3.2L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Description and Operation >> Reference Table of Fuse (Fuse Box)

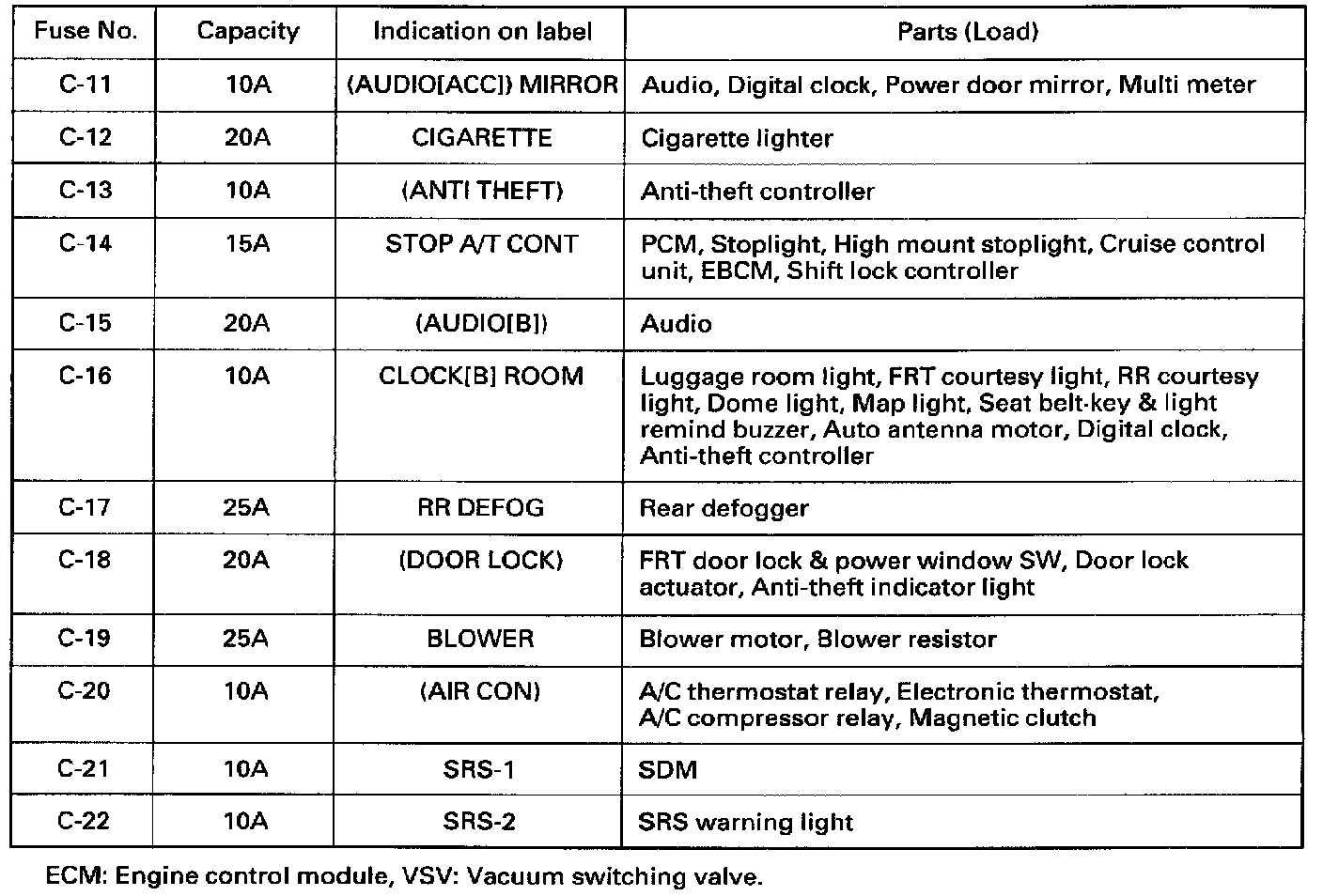

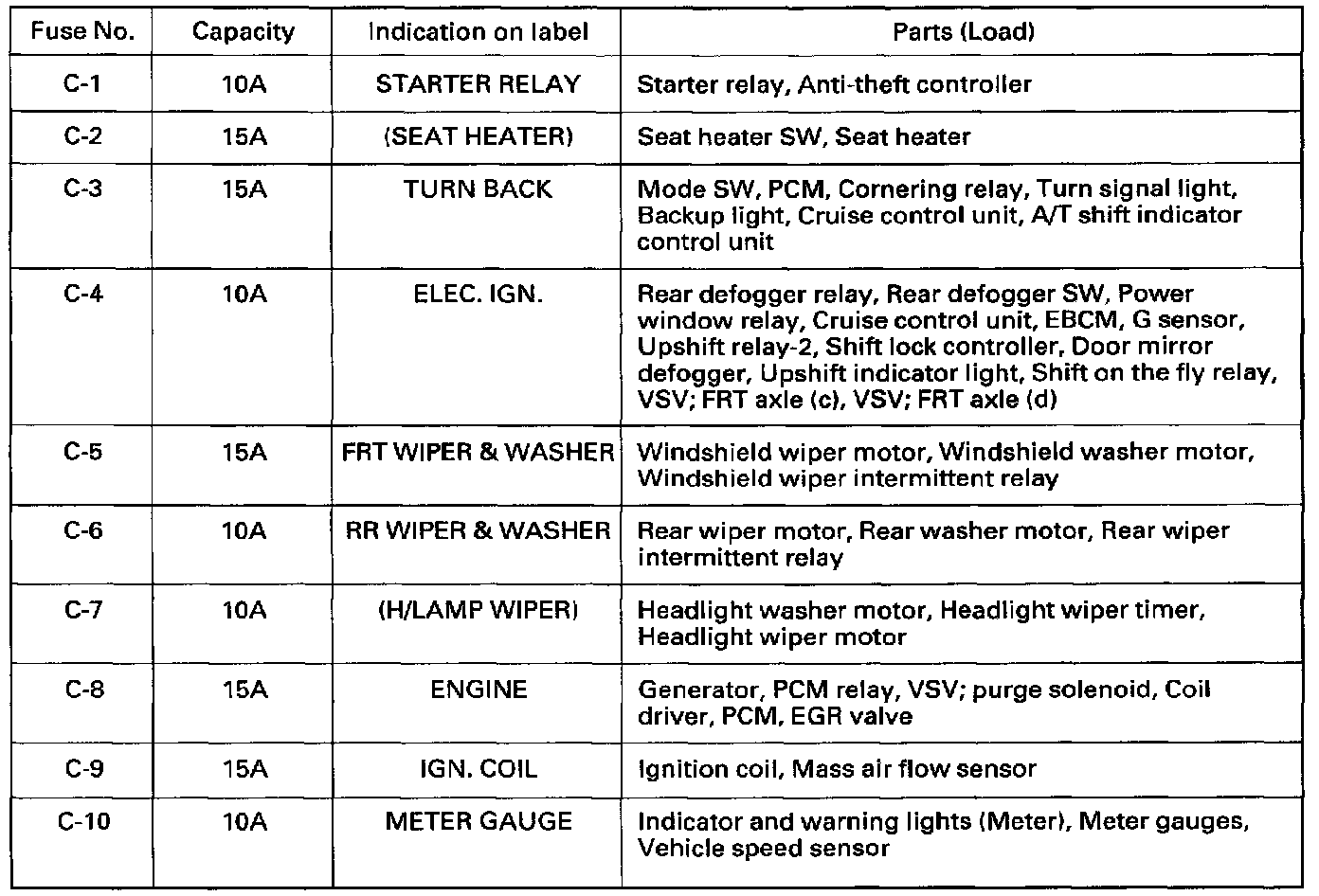

Reference Table of Fuse (Fuse Box)

Fuse Box:

Fuse Box:
